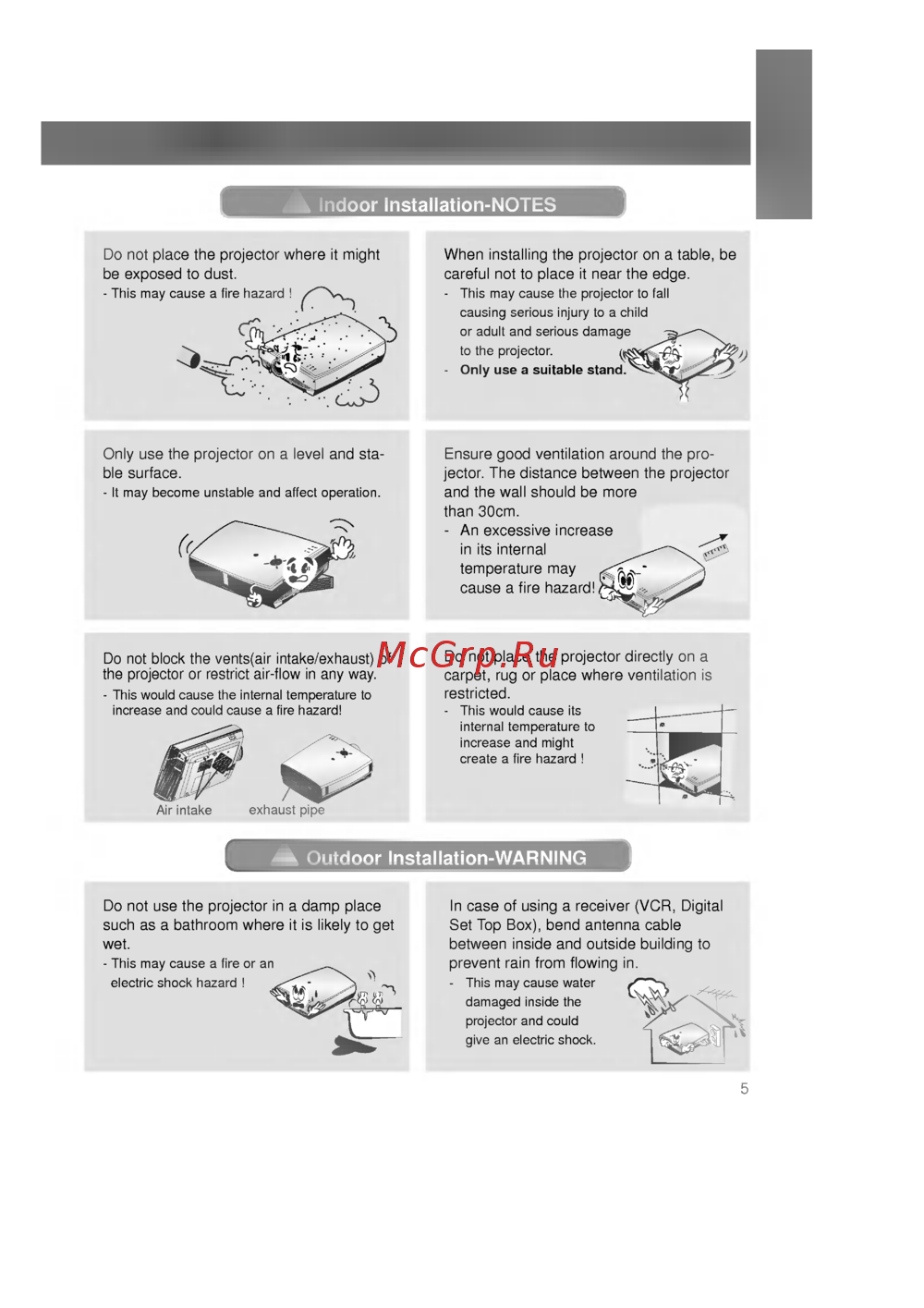

Indoor Installation NOTES Do not place the projector where it might When installing the projector on a table be be exposed to dust careful not to place it near the edge This may cause a fire hazard This may cause the projector to fall causing serious injury to a child or adult and serious damage to the projector Only use a suitable stand Only use the projector on a level and sta Ensure good ventilation around the pro ble surface jector The distance between the projector It may become unstable and affect operation and the wall should be more than 30cm An excessive increase in its internal temperature may cause a fire hazard Do not block the ventsfair intake exhaust of the projector or restrict air flow in any way This would cause the internal temperature to increase and could cause a fire hazard Do not place the projector directly on a carpet rug or place where ventilation is restricted This would cause its internal temperature to increase and might create a fire hazard Outdoor Installation WARNING Do not use the projector in a damp place In case of using a receiver VCR Digital such as a bathroom where it is likely to get Set Top Box bend antenna cable wet between inside and outside building to This may cause a fire or an prevent rain from flowing in electric shock hazard This may cause water damaged inside the projector and could give an electric shock 5
