2En

Important

• When installing this unit in a vehicle

without an ACC (accessory) position on

the ignition switch, failure to connect the

red cable to the terminal that detects

operation of the ignition key may result

in battery drain.

• Use of this unit in conditions other than

the following could result in fire or

malfunction.

–Vehicles with a 12-volt battery and

negative grounding.

–Speakers with 50 W (output value) and

4 Ω to 8 Ω (impedance value).

• To prevent a short-circuit, overheating or

malfunction, be sure to follow the

directions below.

–Disconnect the negative terminal of the

battery before installation.

–Secure the wiring with cable clamps or

adhesive tape. Wrap adhesive tape

around wiring that comes into contact

with metal parts to protect the wiring.

– Place all cables away from moving parts,

such as the shift lever and seat rails.

–Place all cables away from hot places,

such as near the heater outlet.

–Do not connect the yellow cable to the

battery by passing it through the hole

to the engine compartment.

–Cover any disconnected cable

connectors with insulating tape.

–Do not shorten any cables.

–Never cut the insulation of the power

cable of this unit in order to share the

power with other devices. The current

capacity of the cable is limited.

–Use a fuse of the rating prescribed.

–Never wire the negative speaker cable

directly to ground.

–Never band together negative cables of

multiple speakers.

• When this unit is on, control signals are

sent through the blue/white cable.

Connect this cable to the system remote

control of an external power amp or the

vehicle’s auto-antenna relay control

terminal (max. 300mA 12 V DC). If the

vehicle is equipped with a glass antenna,

connect it to the antenna booster power

supply terminal.

• Never connect the blue/white cable to

the power terminal of an external power

amp. Also, never connect it to the power

terminal of the auto antenna. Doing so

may result in battery drain or a

malfunction.

• The black cable is ground. Ground cables

for this unit and other equipment

(especially, high-current products such as

power amps) must be wired separately. If

they are not, an accidental detachment

may result in a fire or malfunction.

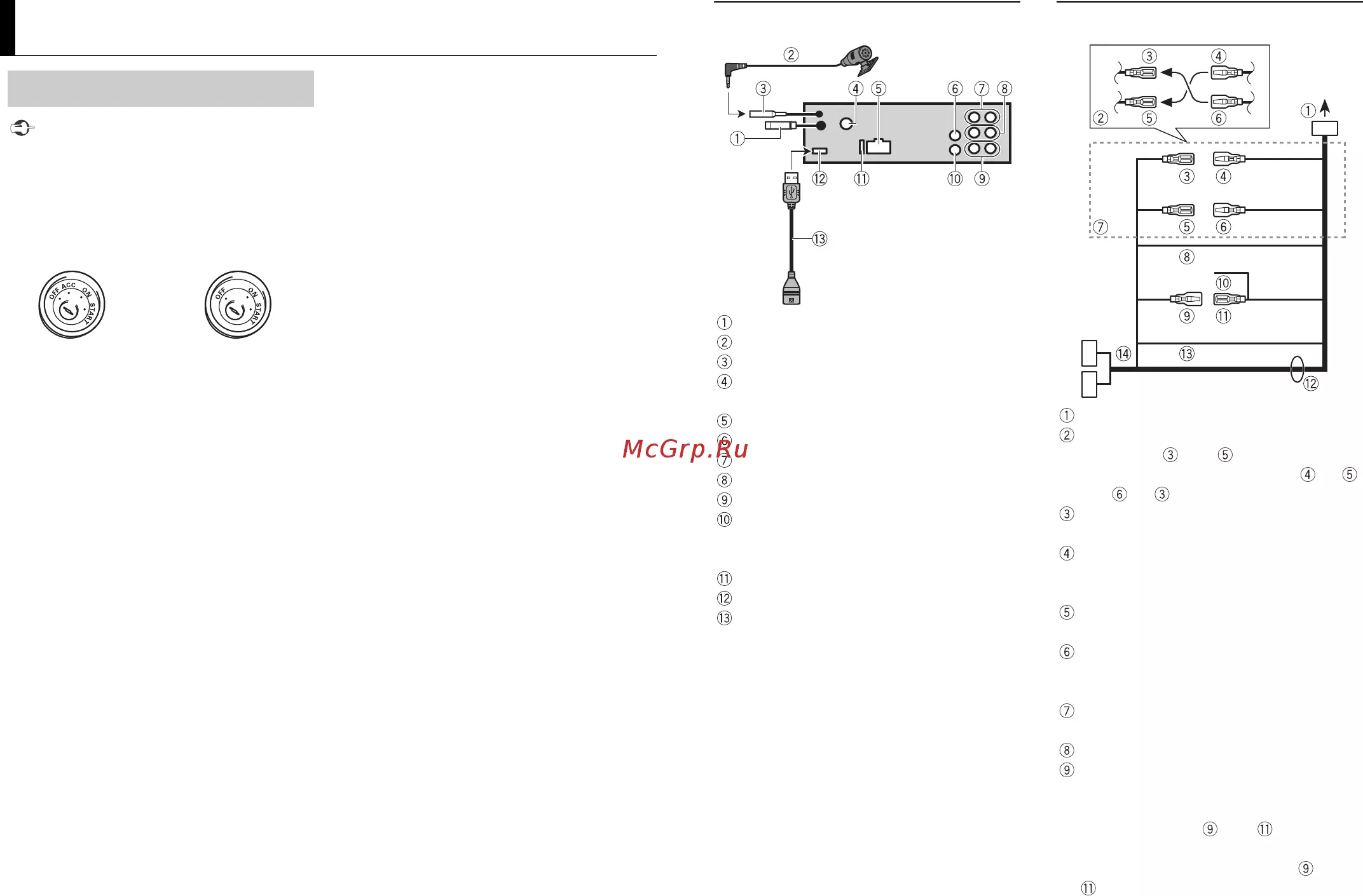

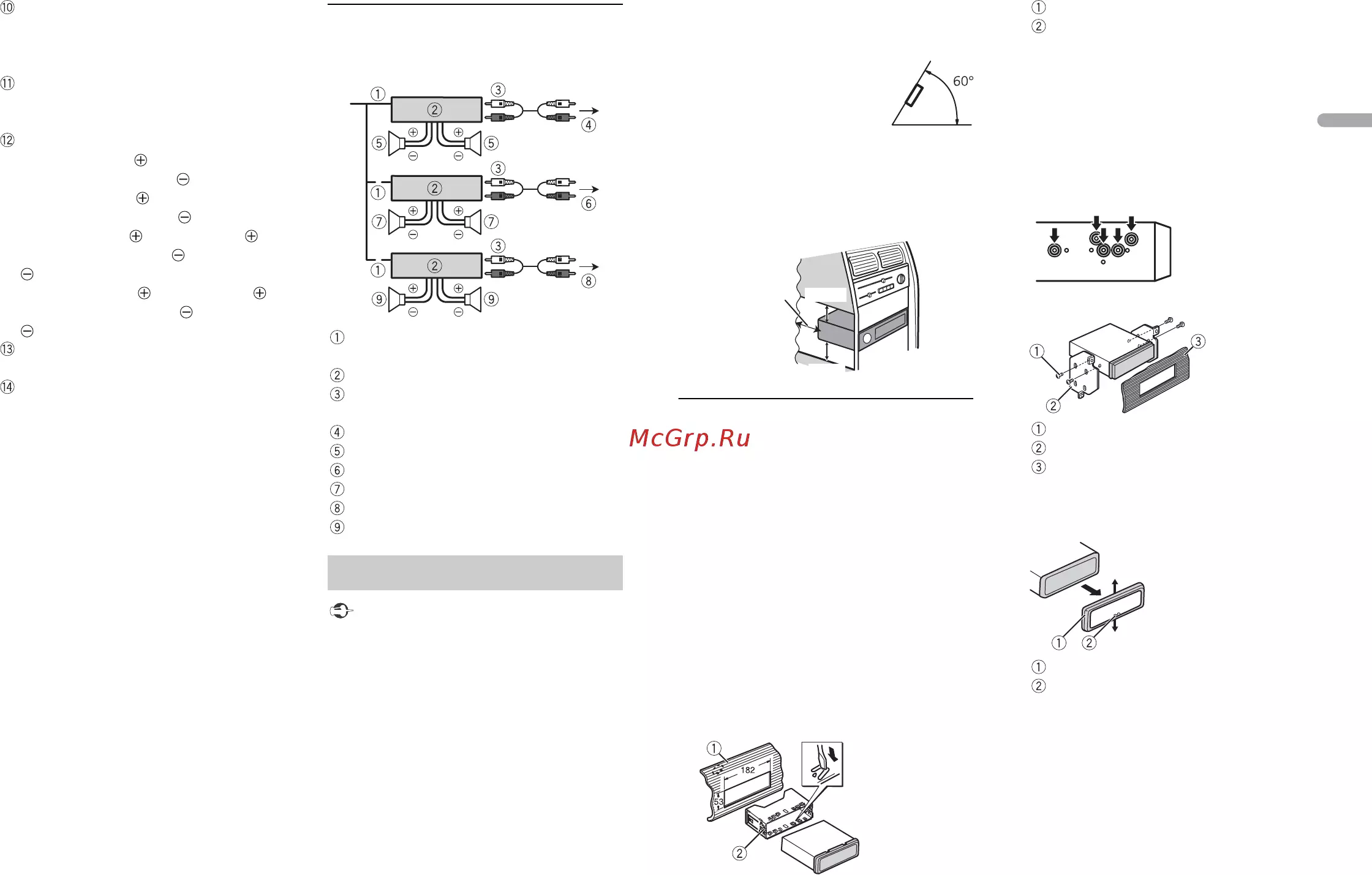

Connections/Installation

Connections

ACC position No ACC position

This unit

Antenna input

Microphone 4 m

Microphone input

DAB antenna input (Only for DEH-

X8700DAB)

Power cord input

AUX input jack (3.5 mm stereo jack)

Rear output

Front output

Subwoofer output

Wired remote input

Hard-wired remote control adapter can

be connected (sold separately).

Fuse (10 A)

USB port

USB cable 1.5 m

Power cord

To power cord input

Depending on the kind of vehicle, the

function of and may be different.

In this case, be sure to connect to

and to .

Yel low

Back-up (or accessory)

Yel low

Connect to the constant 12 V supply

terminal.

Red

Accessory (or back-up)

Red

Connect to terminal controlled by the

ignition switch (12 V DC).

Connect leads of the same color to each

other.

Black (chassis ground)

Blue/white

The pin position of the ISO connector

will differ depending on the type of

vehicle. Connect and when Pin 5

is an antenna control type. In another

type of vehicle, never connect and
