Chapter 1
Get to Know Your 4G LTE Router
1. 2. 2. The Back Panel

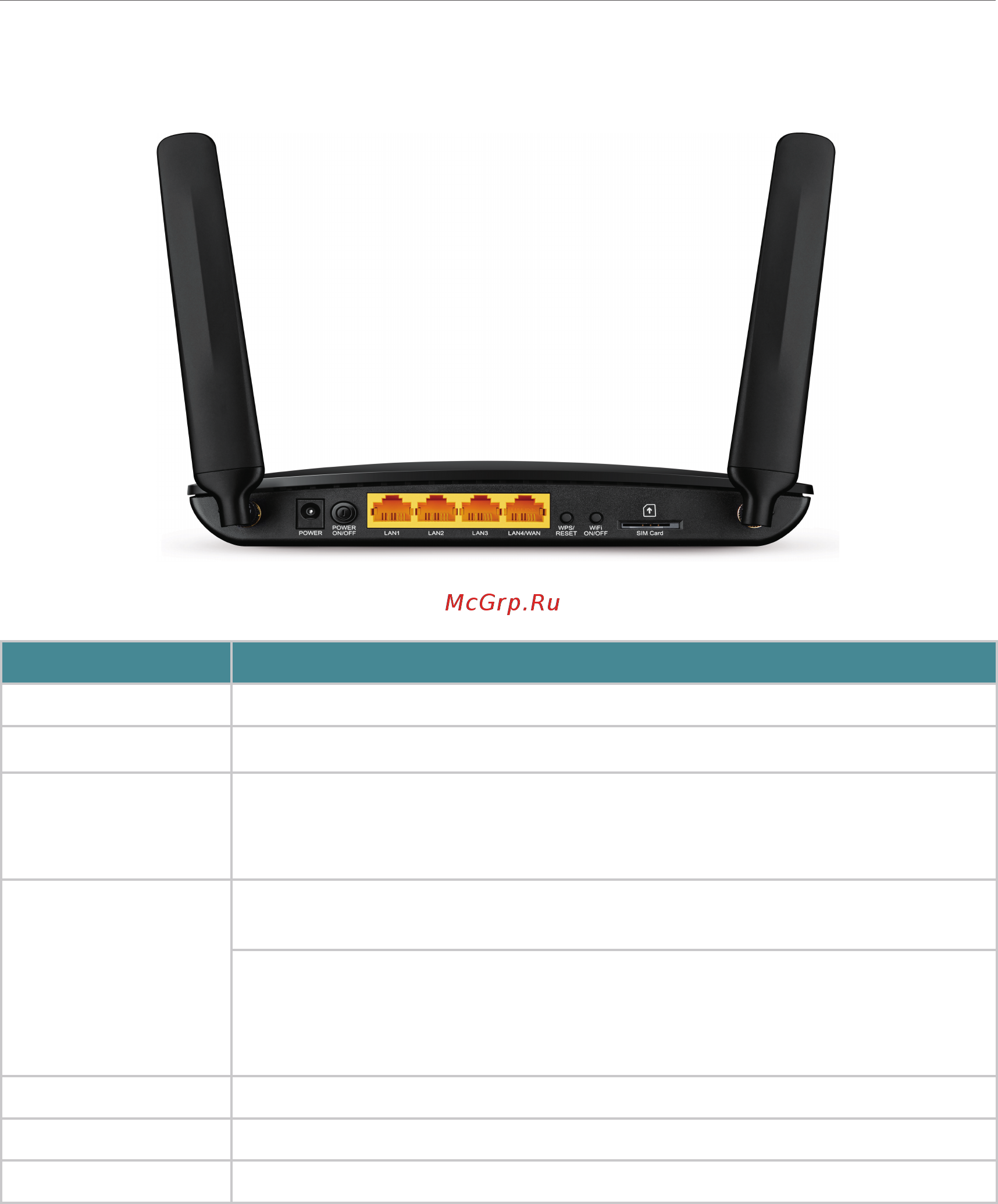

The following parts (view from left to right) are located on the rear panel.
Item Description
POWER Port For connecting the router to power socket via the provided power adapter.
POWER ON/OFF Button
Press this button to power on or off the router.
LAN1, LAN2, LAN3,
LAN4/WAN
For connecting to your PCs or other Ethernet network devices.
In wireless router mode, the LAN4/WAN port is used for connecting to a Cable/FTTH/
VDSL/ADSL device.
WPS/RESET
Press and hold this button until all the LEDs except the Power LED turn on momentarily to
restore the router to its factory default settings.
To enable the WPS function, press this button about 2 seconds. If you have a WPS-
supported device, you can press this button to quickly establish connection between
the router and the client device and automatically configure wireless security for your
wireless network.
Wi-Fi ON/OFF For turning on/off the Wi-Fi function.
SIM Card Slot For holding the SIM card.
Antennas Used for data sessions over LTE. Upright them for the best mobile internet signal.
