25
Chapter 6
Network Security

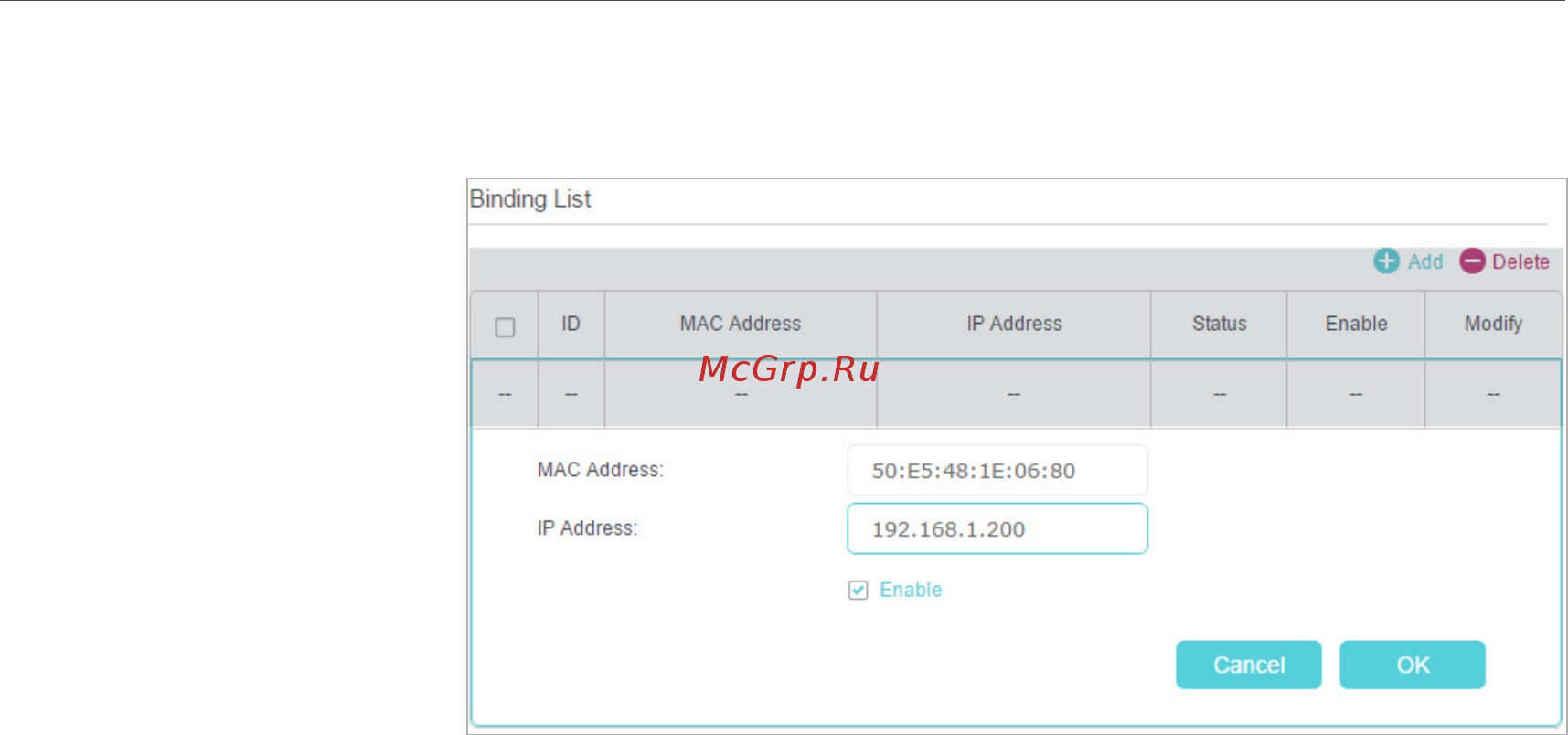

1 ) Click Add.
2 ) Enter the MAC address and IP address that you want to
bind.
3 ) Select the checkbox to enable the entry and click OK.
Now you don’t need to worry about ARP spoofing and other ARP
attacks.
Done!
