62
Chapter 11
Specify Your Network Settings

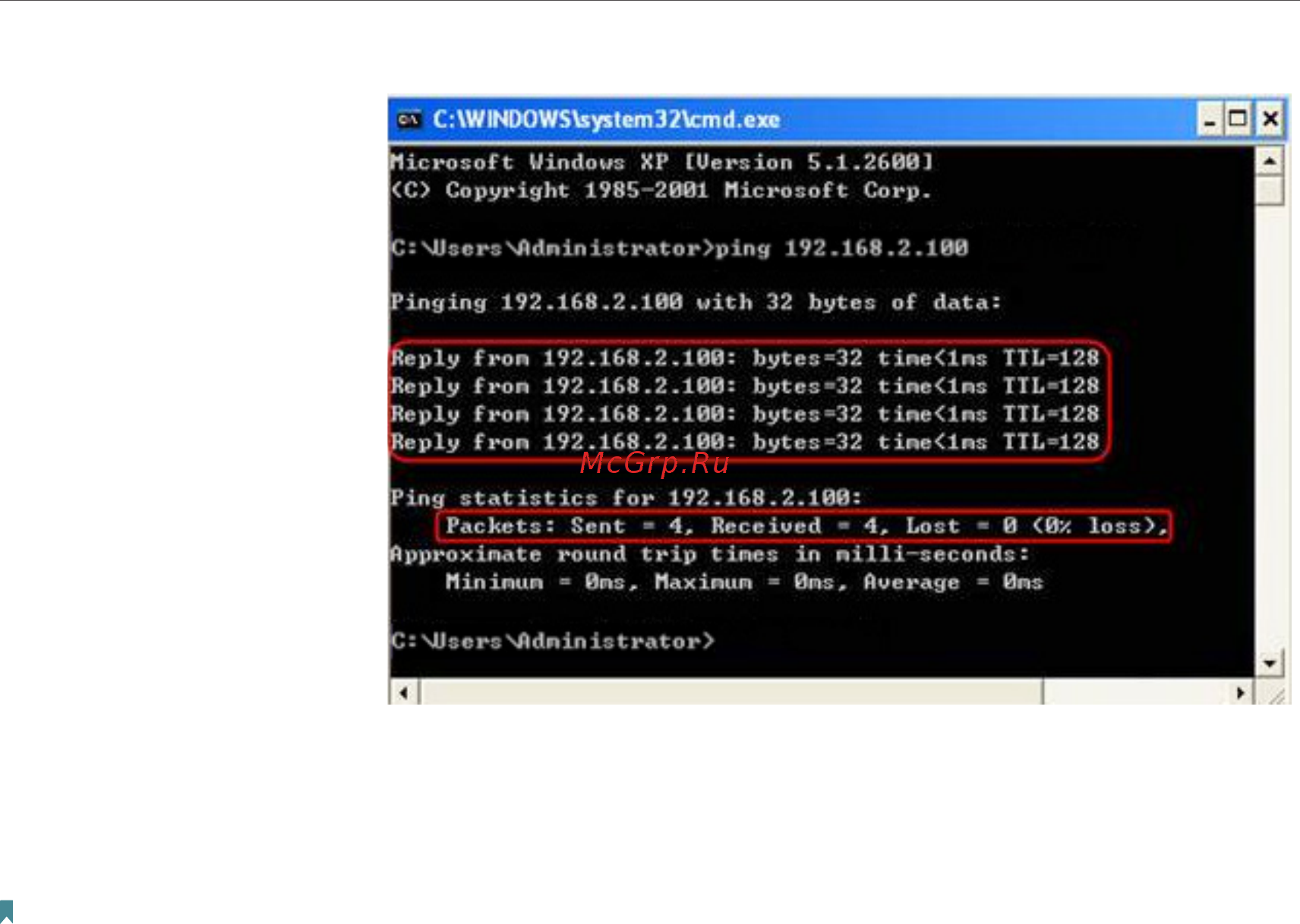

c . If Ping proceeds successfully (gets replies from host in
Site B), the IPSec connection is working properly now.
Now IPSec VPN is implemented to establish a connection.
Note:
1. The product supports a maximum of ten simultaneous connections.
2. If one of the site has been off line for a while, for example, if Site A has been disconnected, on Site B you need to click
Disable and then click Enable after Site A back on line in order to re-establish the IPSec tunnel.
Done!
