3
Chapter 1
Get to Know Your 4G LTE Router
1. 1. Product Overview
What This Product Does
The AC750 Wireless Dual Band 4G LTE Router, Archer MR200, shares the latest
generation 4G LTE network with multiple Wi-Fi devices, anywhere you want. It creates
simultaneous dual band 802.11ac Wi-Fi, with speeds up to 300Mbps on 2.4GHz band
and 433Mbps on 5GHz band. Also four Ethernet ports add your wired devices to the 4G
LTE network.
Great Coverage and Dual Band Wi-Fi
Featuring two fixed external antennas and high power amplifiers, Archer MR200 is able
to boost Wi-Fi coverage throughout your home. The two distinct wireless networks,
utilizing the 2.4GHz and 5GHz bands, provide optimized performance and minimize
signal interference.
Interchangeable LAN/WAN Port - Versatile Connectivity
The Archer MR200 supports 4G LTE or Ethernet WAN connections (EWAN), which allows
users to have the flexibility of different internet connections among LTE, cable or fiber
modem using its SIM card slot and interchangeable LAN/WAN port. This unique feature
makes it easier when users need to change to fiber or cable services when necessary.
1. 2. Panel Layout

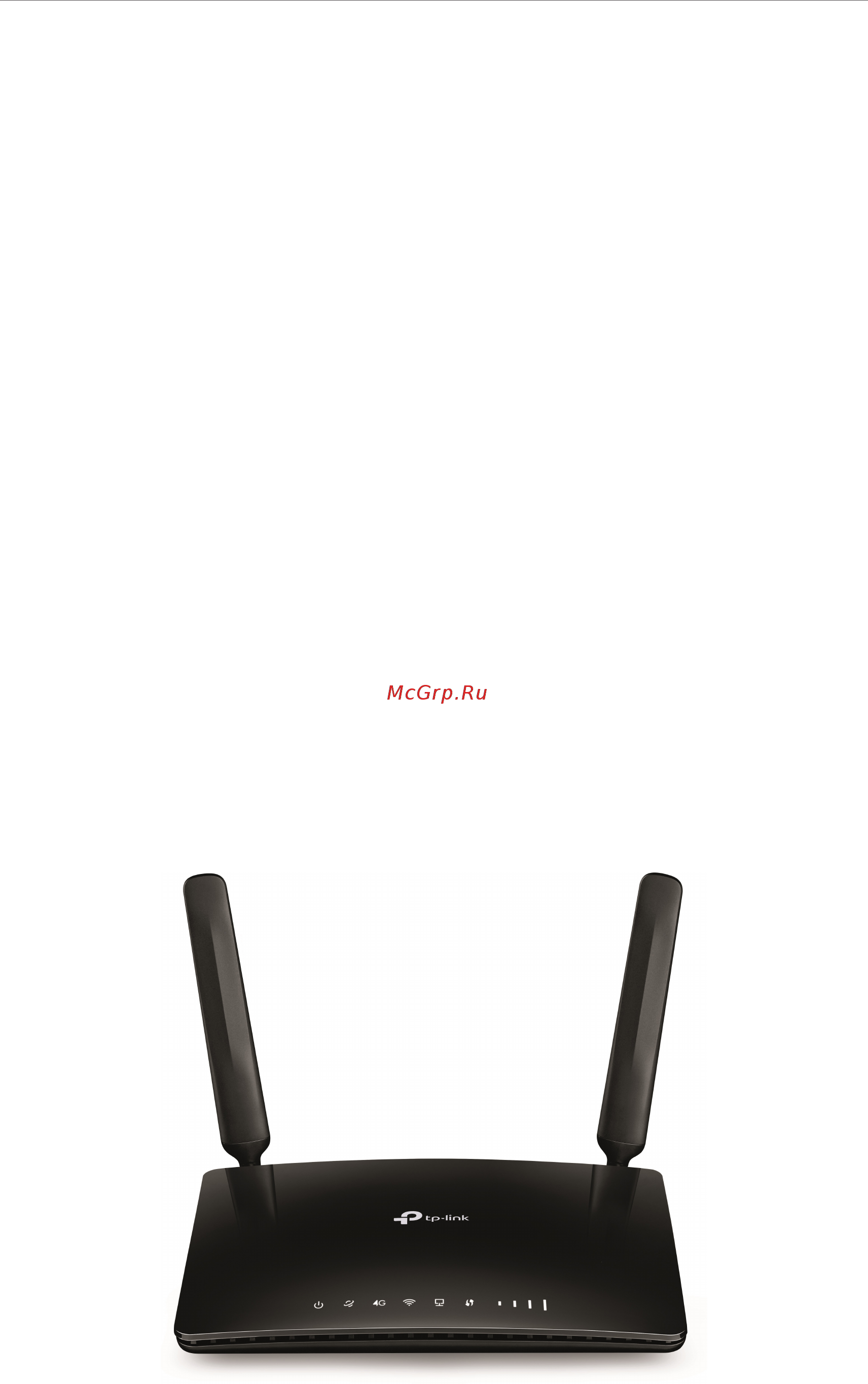

1. 2. 1. Top View
