36
Chapter 9
Guest Network

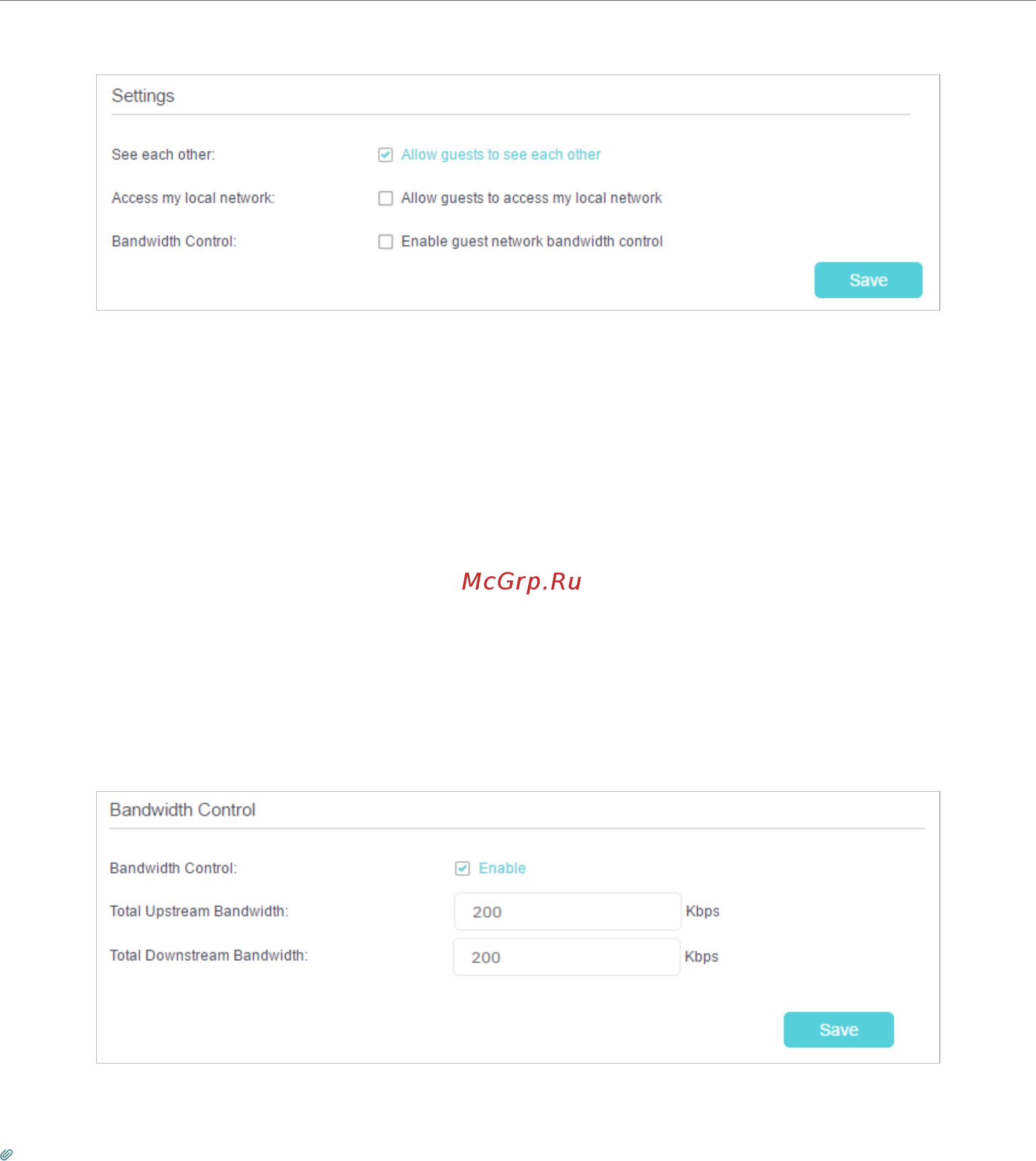

• Allow guests to see each other
Select this checkbox if you want to allow the wireless clients on your guest network
to communicate with each other via methods such as network neighbors, Samba,
Ping, and FTP.
• Allow guests to access my local network
Select this checkbox if you want to allow the wireless clients on your guest network
to communicate with the devices connected to your router’s LAN ports or main
network via methods such as network neighbors, Samba, Ping, and FTP.
• Enable guest network bandwidth control
Select this checkbox if you want to assign the upstream and downstream
bandwidths for the guest network. This option is available only when Bandwidth
Control is enabled on the Advanced > Bandwidth Control page.
4. Click Save. Now you can ensure network security, privacy, and fluency!
Tips:
To view guest network information, go to Advanced > Status and find the Guest Network section.
