Tp-Link TL-MR6400 V3 [18/96] Test internet connectivity

Chapter 4

Set Up Internet Connections

4. 3. Test Internet Connectivity

After manually set up the internet connection, you need to know the internet connectivity.

The router provides a diagnostic tool to help you locate the malfunction.

1. Visit http://tplinkmodem.net, and log in with the password you set for the router.

2. Go to Advanced > System Tools > Diagnostics page.

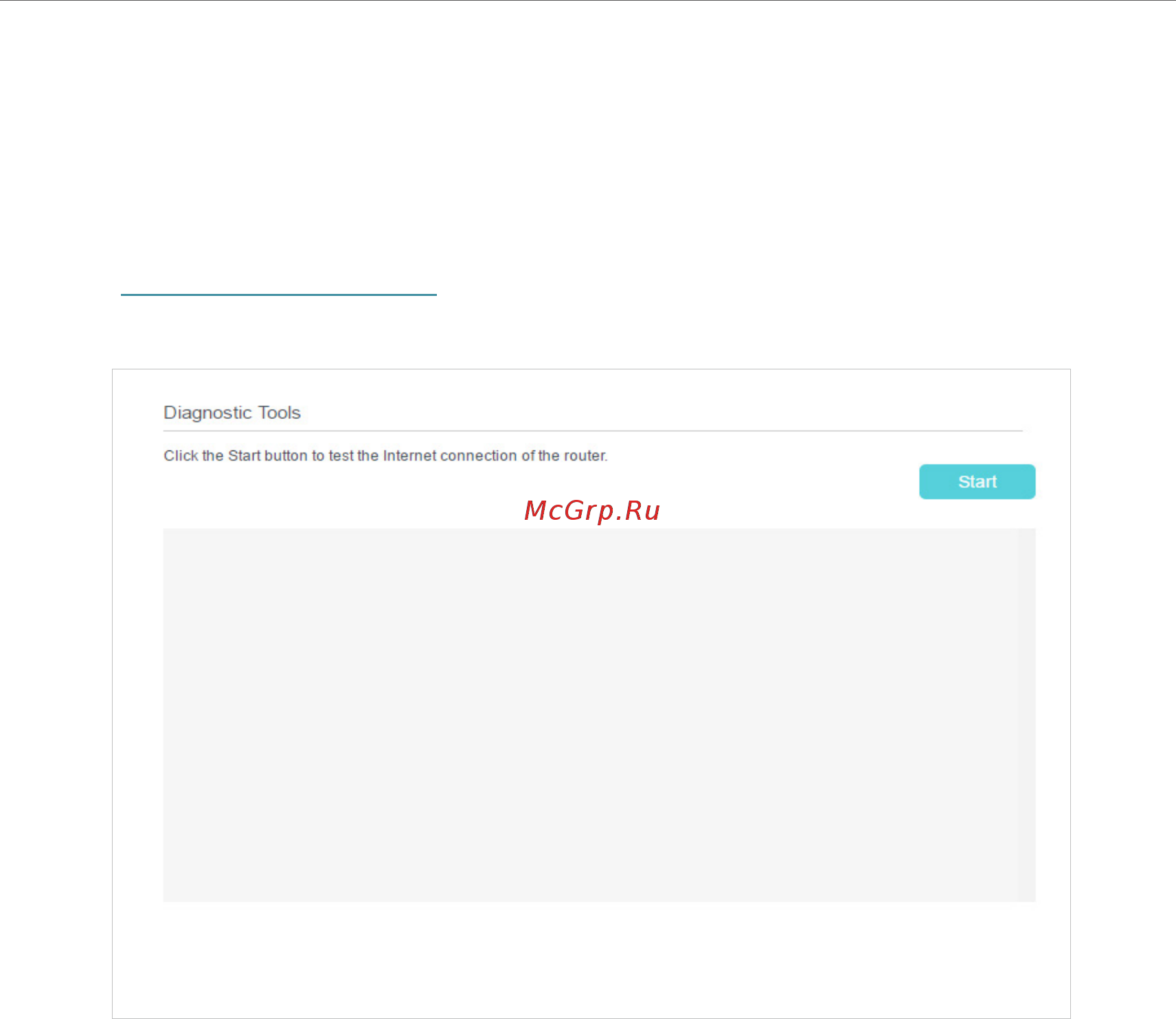

3. Click Start to test the internet connectivity and you will see the test result in the

gray box.
