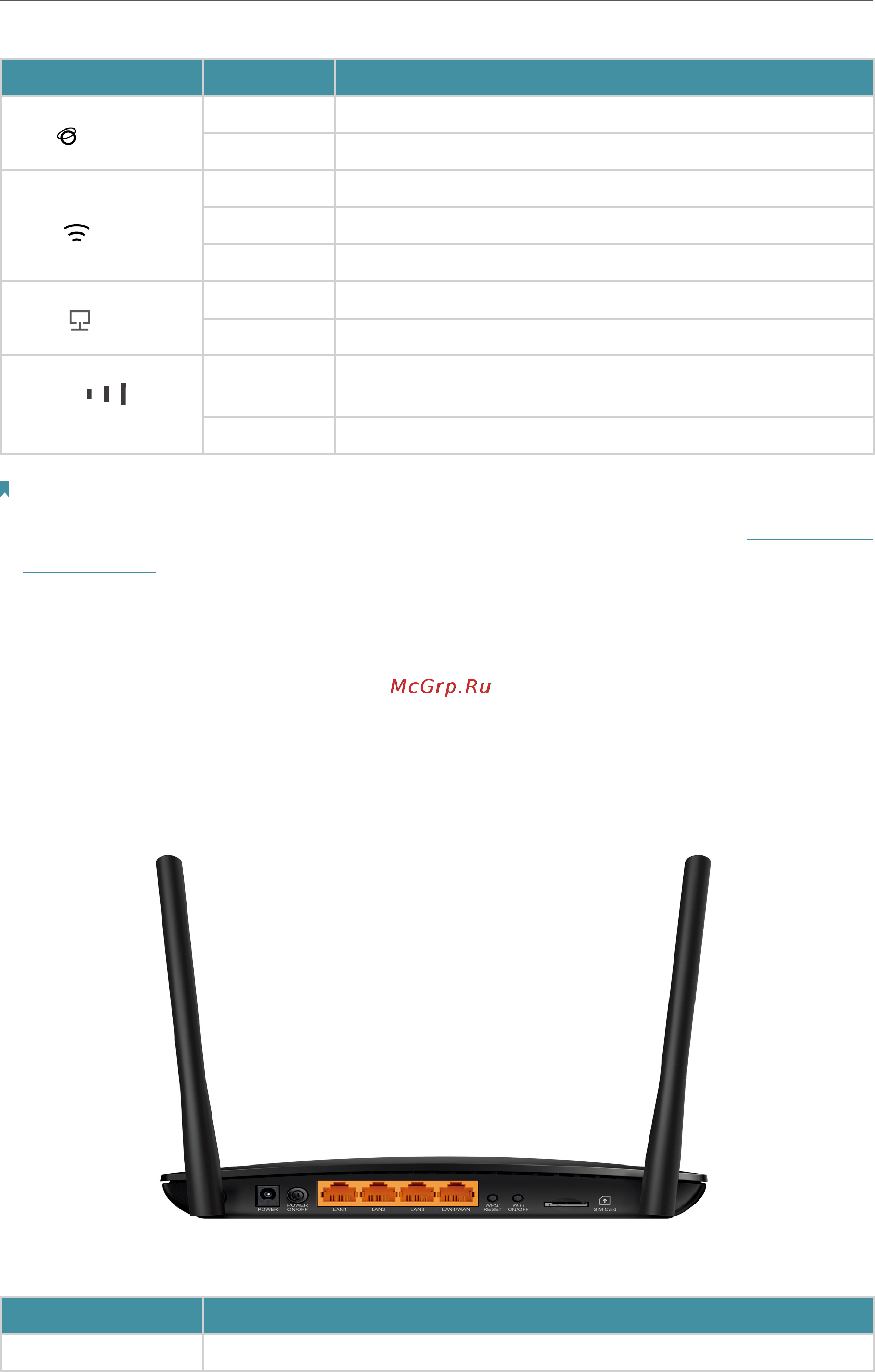

Tp-Link TL-MR6400 V3 [8/96] 2 the back panel
![Tp-Link TL-MR6400 V3 [8/96] 2 the back panel](/views2/1468914/page8/bg8.png)
4
Chapter 1
Get to Know Your 4G LTE Router
Name Status Indication
(Internet)
On The router is connected to the internet.
Off There is no internet connection.
(Wi-Fi)
On The wireless function is enabled.
Flashing WPS connection is in progress. This may take up to 2 minutes.
Off The wireless function is disabled.
(LAN)
On At least one LAN port is connected to a powered-on device.
Off No LAN port is connected to a powered-on device.
(Signal Strength)
On
Indicates the signal strength the router received from the mobile
internet. More lit bars indicates a better signal strength
.
Off There is no mobile internet signal.
Note:
1. If the Internet LED is off, please check your internet connection first. Refer to Connect Your
4G LTE Router for more information about how to make internet connection correctly. If you
have already made a right connection, please contact your ISP to make sure your internet
service is available now.
2. If the Signal Strength LED is off, please check your Internet LED first. If your Internet LED
is also off, please refer to Note 1. If your Internet LED is on, please relocate the router to a
location that receives a strong mobile internet signal, such as near a window.
1. 2. 2. The Back Panel
The following parts (view from left to right) are located on the rear panel.
Item Description
POWER Port For connecting the router to power socket via the provided power adapter.
