Chapter 11

Specify Your Network Settings

3. In the Client IP Address filed, enter the range of IP addresses (up to 10) that can be leased to

the devices by the PPTP VPN server.

4. In the Username/Password filed, enter the username and password to authenticate clients to

the PPTP VPN server.

5. Click Save.

Step 2. Configure PPTP VPN Connection on Your Remote Device

The remote device can use the Windows built-in PPTP software or a third-party PPTP

software to connect to PPTP Server. Here we use the Windows built-in PPTP software

as an example.

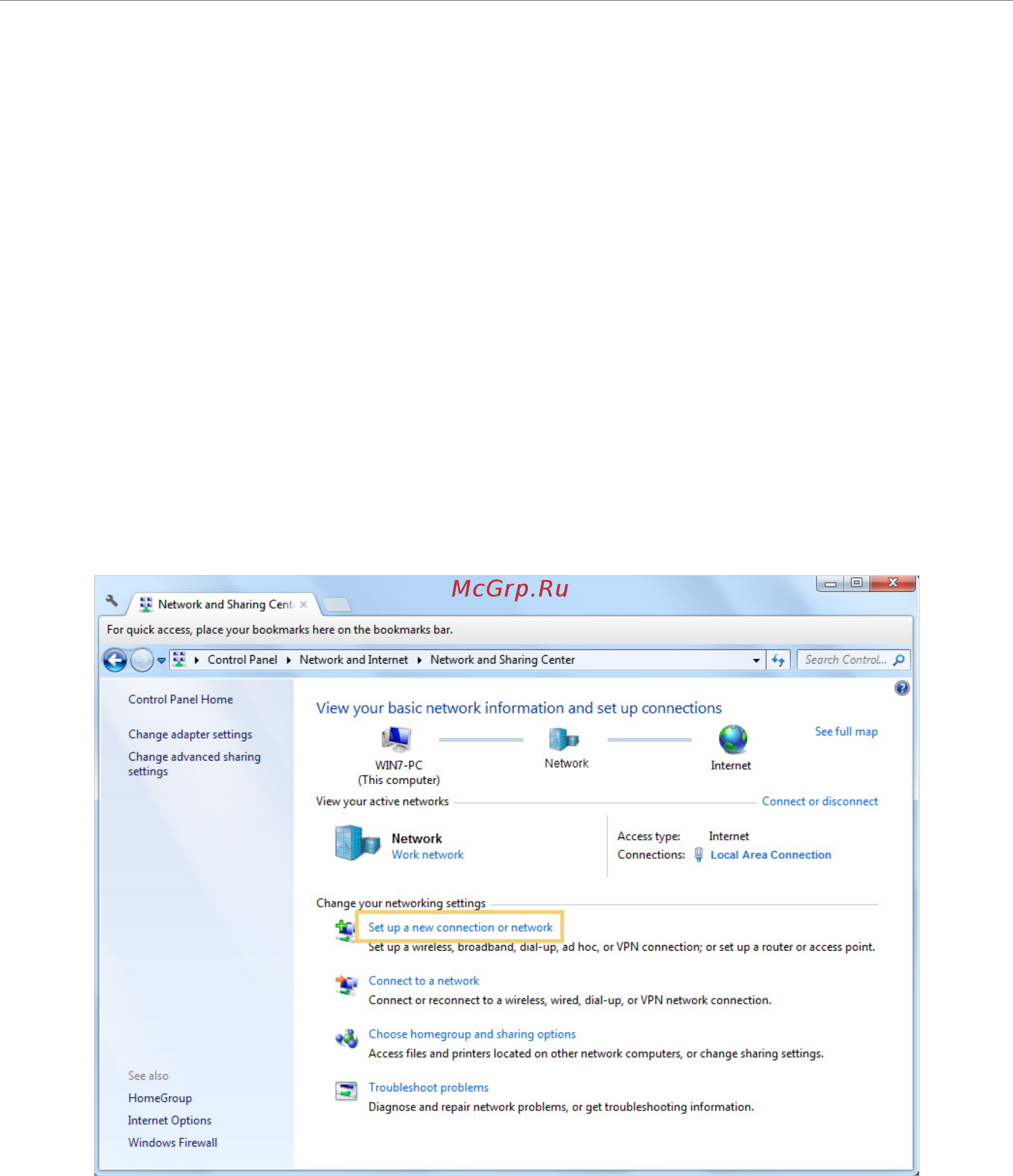

1. Go to Start > Control Panel > Network and Internet > Network and Sharing Center.

2. Select Set up a new connection or network.
