Chapter 12

Administrate Your Network

2. Go to Advanced > System Tools > Statistics page.

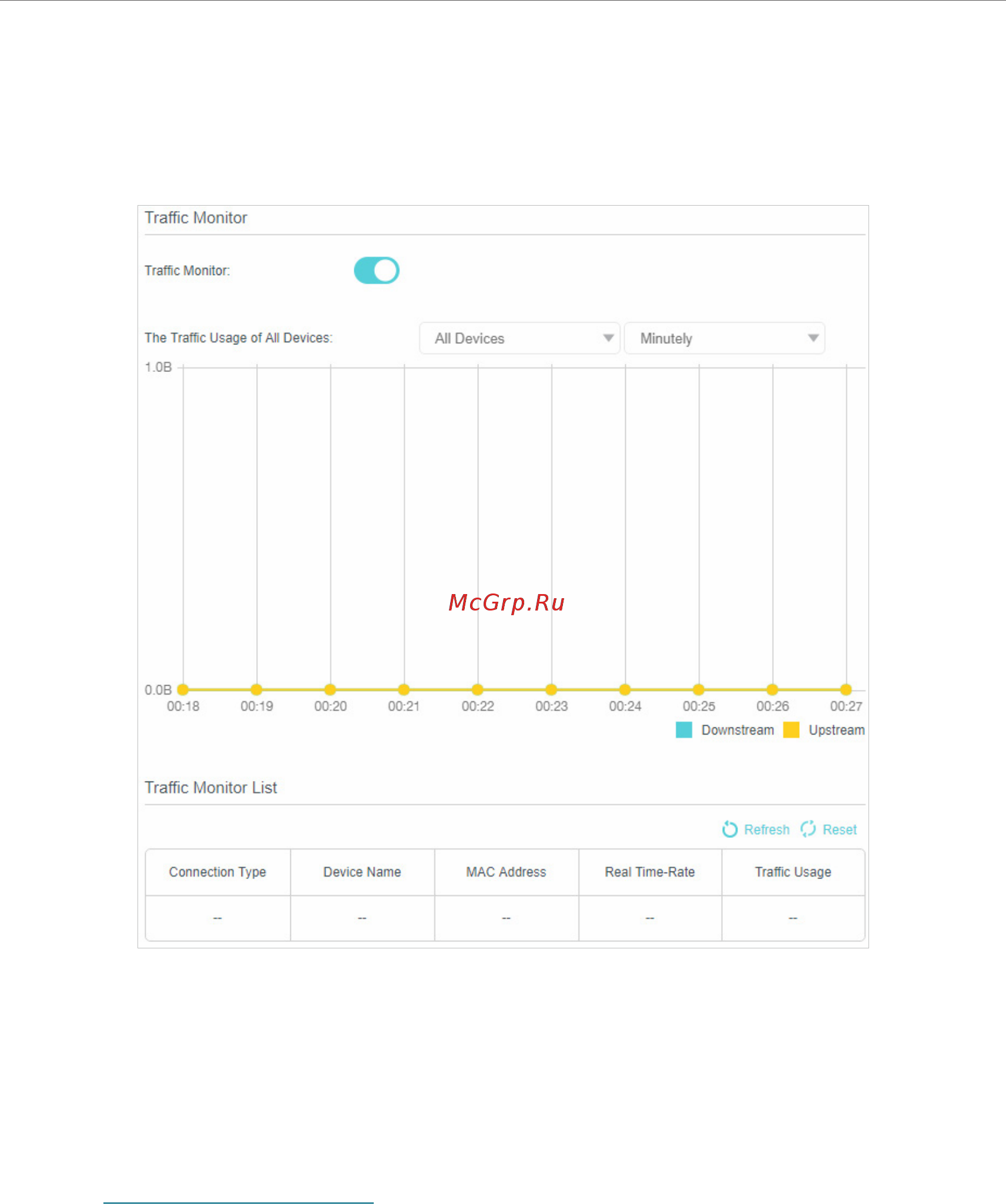

3. Toggle on Traffic Monitor, and then you view the traffic usage of a device in the past

10 minutes or that of all devices in the past 10 minutes/24 hours/7 days.

12. 9. CWMP Settings

The router offers CWMP feature. The function supports TR-069 protocol which collects

information, diagnoses the devices and configures the devices automatically via ACS

(Auto-Configuration Server).

1. Visit http://tplinkmodem.net, and log in with the password you set for the router.
