TX-VG1530
N300 Wireless VoIP GPON Router User Guide
4.4.1 WAN Settings

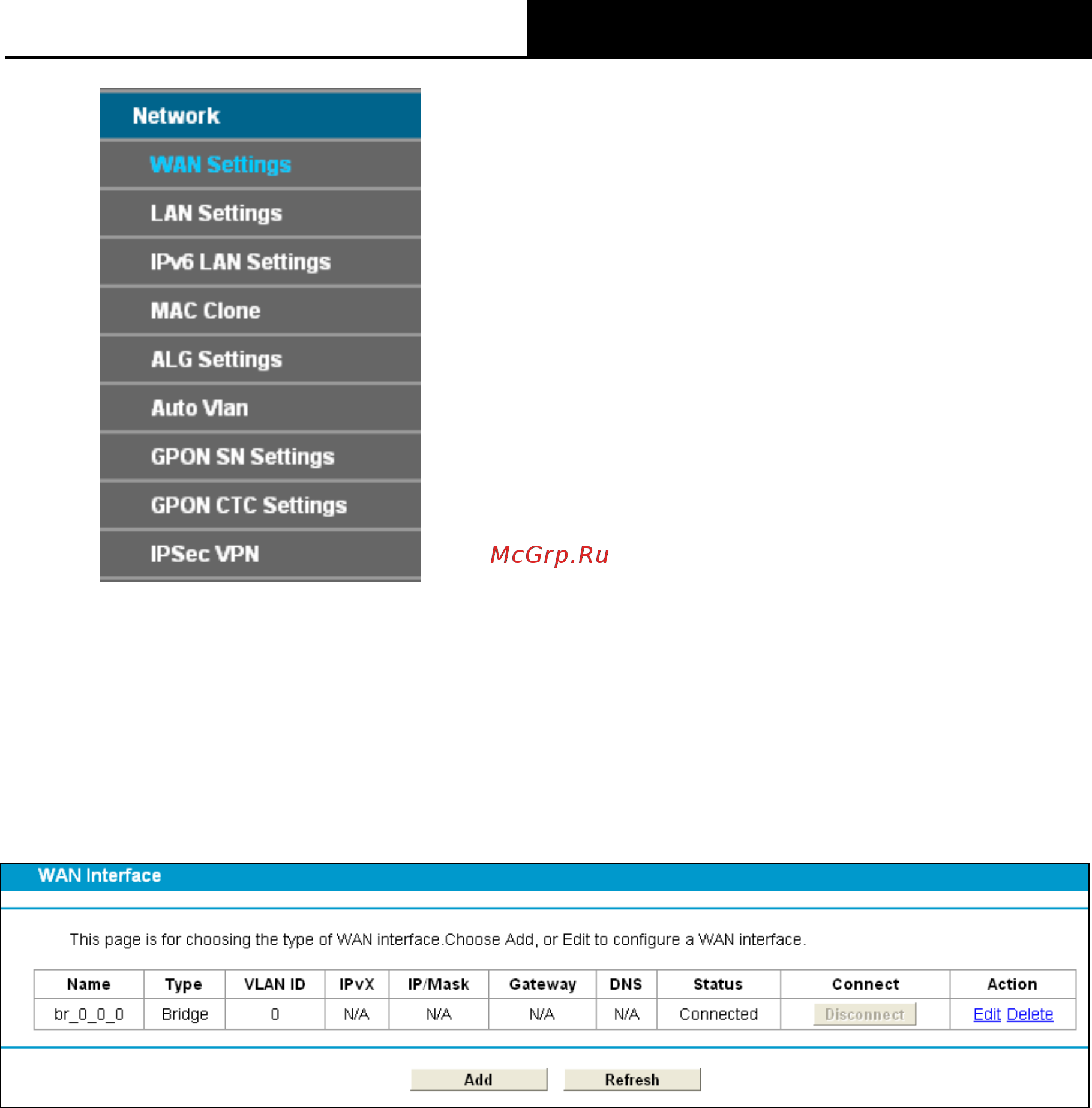

Choose “Network”“WAN Settings”, and you will see the WAN Port Information Table in the
screen similar to Figure 4-7, which describes the WAN port settings and the relevant manipulation
to each interface. There are four different configurations for the connection types, which are Static
IP, Dynamic IP, PPPoE and Bridge. You can select the corresponding types according to your
needs.
Figure 4-7
Click Add to add a new entry, you can configure the parameters for VLAN and WAN Service in the
next screen (shown in Figure 4-8).
21
