TX-6610 1-Port Gigabit GPON Terminal User Guide
7
Chapter 3. Quick Installation Guide
3.1 Configuring PC
After you directly connect your PC to the ONT TX-6610 or connect your adapter to a Hub/Switch
which has connected to the ONT, you need to configure your PC’s IP address. Follow the steps
below to configure it.

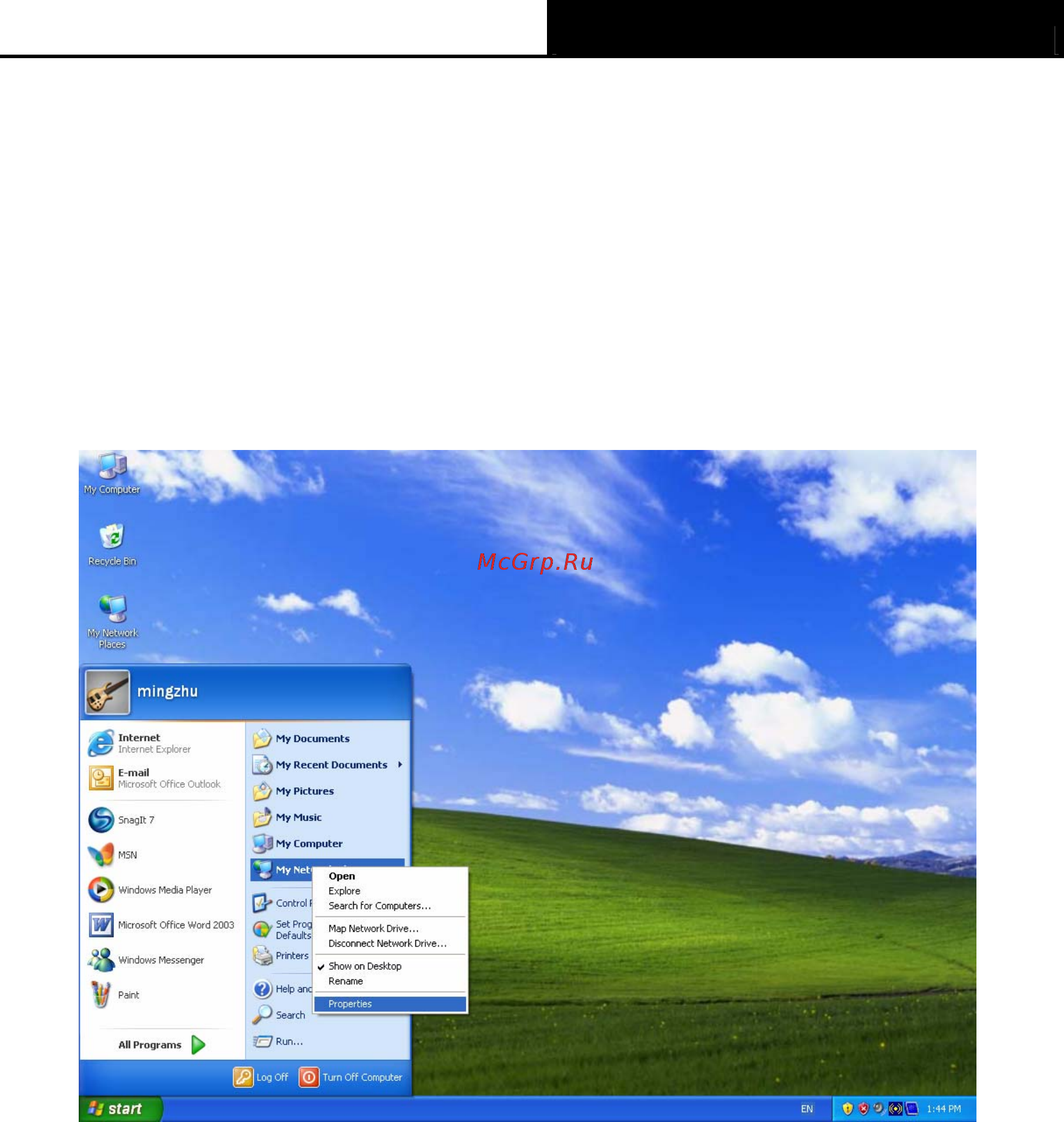

Step 1: Click the Start menu on your desktop, right click My Network Places, and then select
Properties (shown in Figure 3-1).
Figure 3-1
Step 2: Right click Local Area Connection (LAN), and then select Properties.
