LAUNCH CR-HD User's Manual

4.2 Diagnose

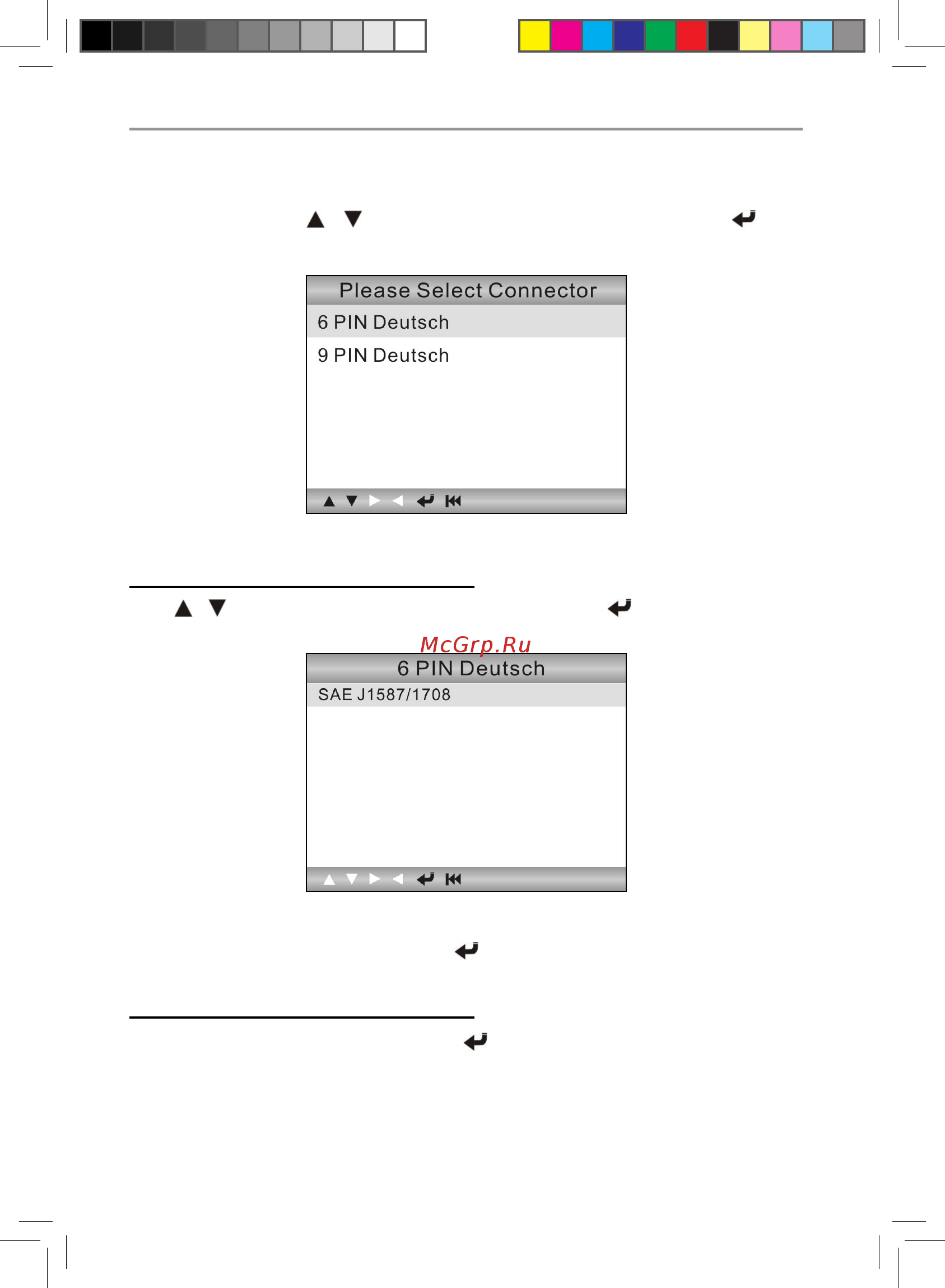

In Figure 4-1, use [ ] [ ] button to select [Diagnose] and press [ ], the

system will switch to the following protocol selection interface:

Figure 4-2

A. Selecting SAE J1708 6 PIN Deutsch

Use [

] [ ] button to select [6 PIN Deutsch] and press [ ], a screen similar to

Figure 4-3 will appear:

Figure 4-3

Select one desired item and press [

], the system will switch to Function

selection screen. See Figure 4-7.

B. Selecting SAE J1939 9 PIN Deutsch

If [9 PIN Deutsch] is selected, press [

], a screen similar to Figure 4-4 will

appear:
