LAUNCH CR-HD User's Manual

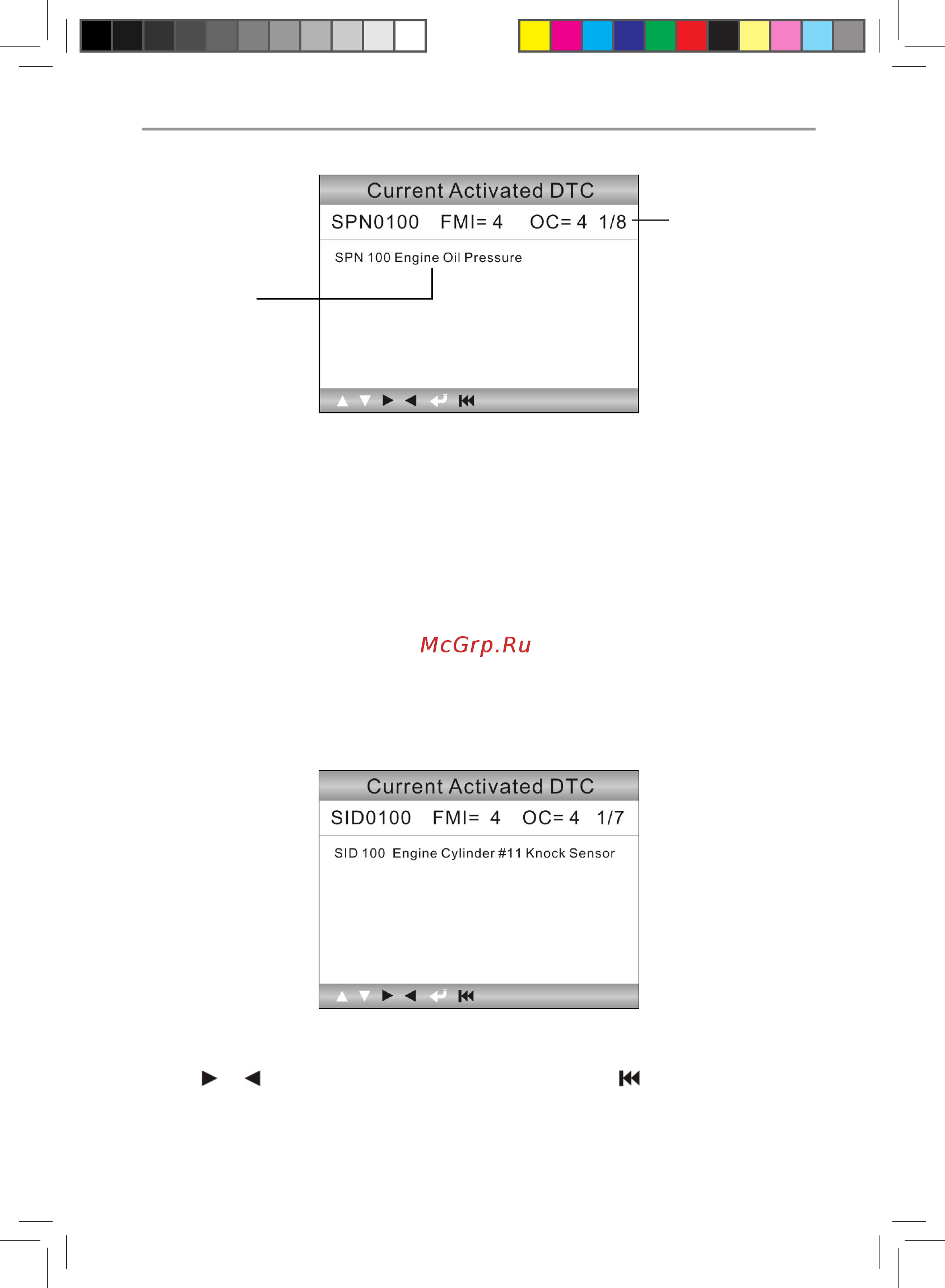

Figure 4-9

Generally, there are three elements displayed on the rst row and the second

row indicates detailed descriptions on DTC, as shown in Figure 4-9:

Suspect Parameter Number (SPN) – Indicates what function on the ECU has •

failed.

Failure Mode Indicator (FMI) – Indicates in what way the function failed.•

Occurence (OC) – Indicates the occurence times of the current DTC.•

Whereas, if we choose [SAE J1587/1708], the faults code will be displayed

similar to Figure 4-10:

Subsystem Identier (SID) – Indicates what function on the ECU has failed. •

Failure Mode Indicator (FMI) – Indicates in what way the function failed.•

Occurence (OC) – Indicates the occurence times of the current DTC.•

Figure 4-10

Press [

] / [ ] to view the next or previous code; press [ ] to exit and return to

the Function screen.

Indicates there

are total 8 codes

and SPN0100 is

the first code to

display.

Further

descriptions

on current

DTC
