Method 2: Using a Command Prompt

NOTE: These instructions are for Windows OS. For other OS please refer

to RMCARD User’s Manual available for download at CyberPower

Systems ocal website: www.CyberPower.com.

1. Obtain the MAC address from the label on the Remote

Management Card. Each Management Card has a unique MAC

address.

2. Use the ARP command to set the IP address.

Example:

To assign the IP Address 192.168.10.134 for the Remote

Management Card, which has a MAC address of

00-0C-15-00-FF-99 you will type in the following in the

command prompt from a PC connected to the same network

as the Remote Management Card.

(1) Type in

“

arp

192.168.10.134 00-0C-15-00-FF-99

”

then

press Enter.

3. Use the Ping command to assign a size of 123 bytes to the IP.

(1) Type in

“

ping

192.168.10.134 -

123

”

then press Enter.

(2) If the replies are received, your computer can

communicate with the IP address.

7. You will need to enter a User

Name and Password for the

Remote Management Card in

the authentication window, as

shown in Figure 3.

- Default user name: cyber

- Default password: cyber

8. If the IP address change is

successful, you will see a

message conﬁrming the IP set

up, as shown in Figure 4.

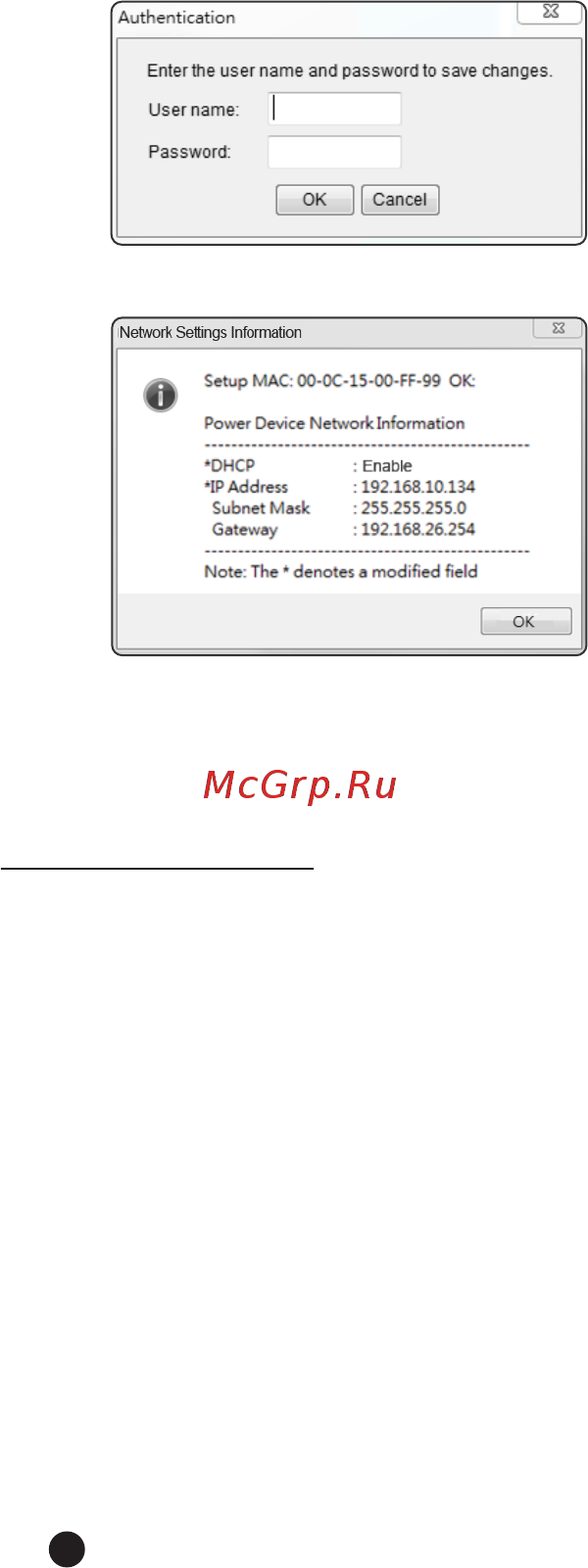

Figure 3. Authentication window

Figure 4. Setup IP Address successfully message
