BASIC OPERATION

DESCRIPTION

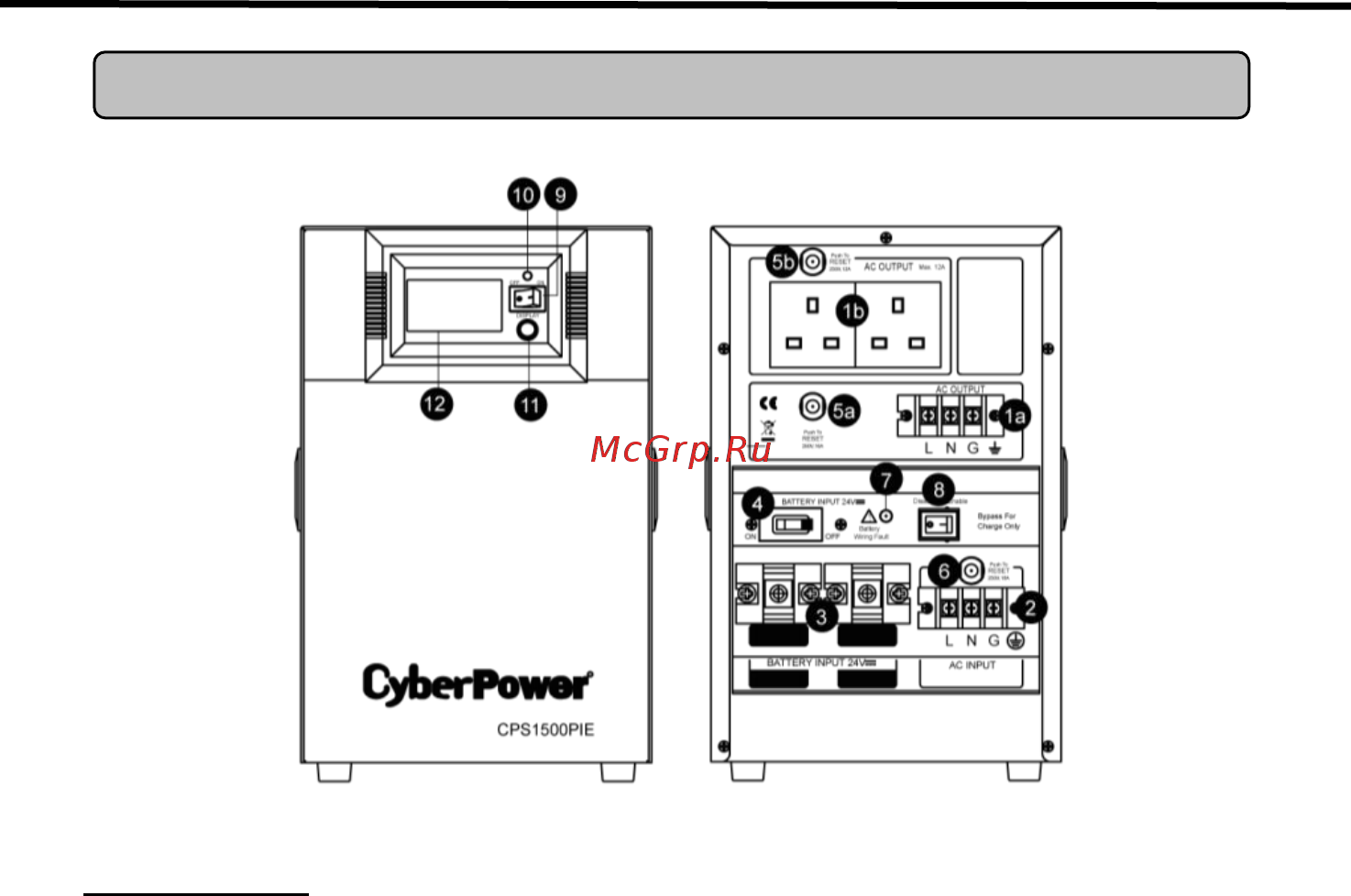

1. AC Outlets

EPS PIE Series have one general plug-in outlet (UK/Schuko/France) and one IEC (C13 x 4) outlet for

connected equipment which ensures temporary uninterrupted operation of the equipment during a power

failure.

Max. Output of 1a is 16A for terminal block or 10A for IEC C13; Max. Output of 1b is 12A for UK socket,

16A for Schuko/France socket.

Max. Output wattage of (1a+1b) is 1050W.

*Note: Maximum cord length is 10 meters and the cable O.D. must be 14AWG.

2. AC Inlet

AC input terminals

*Note：The O.D. of the distribution cables must be 14AWG or greater.

3. DC Inlet

Battery input terminals

*Note：Maximum battery wiring cable length is 2 meters and the cable O.D. must be 6AWG or greater.

4. DC Circuit Breaker

Located on the side of the EPS, the circuit breaker serves to provide overload and fault protection.

*Note: It is used as INPUT BATTERY SW as well.
