JetStream 10-Gigabit Smart Switch

Lightning Protection

Note: The grounding bar and the ground cable are not provided with our product. If

needed, please self purchase them.

■

Connecting to the Ground via the Power Supply

If the device is installed in the normal environment, the device can be grounded via the

PE (Protecting Earth) cable of the AC power supply as shown in the following figure.

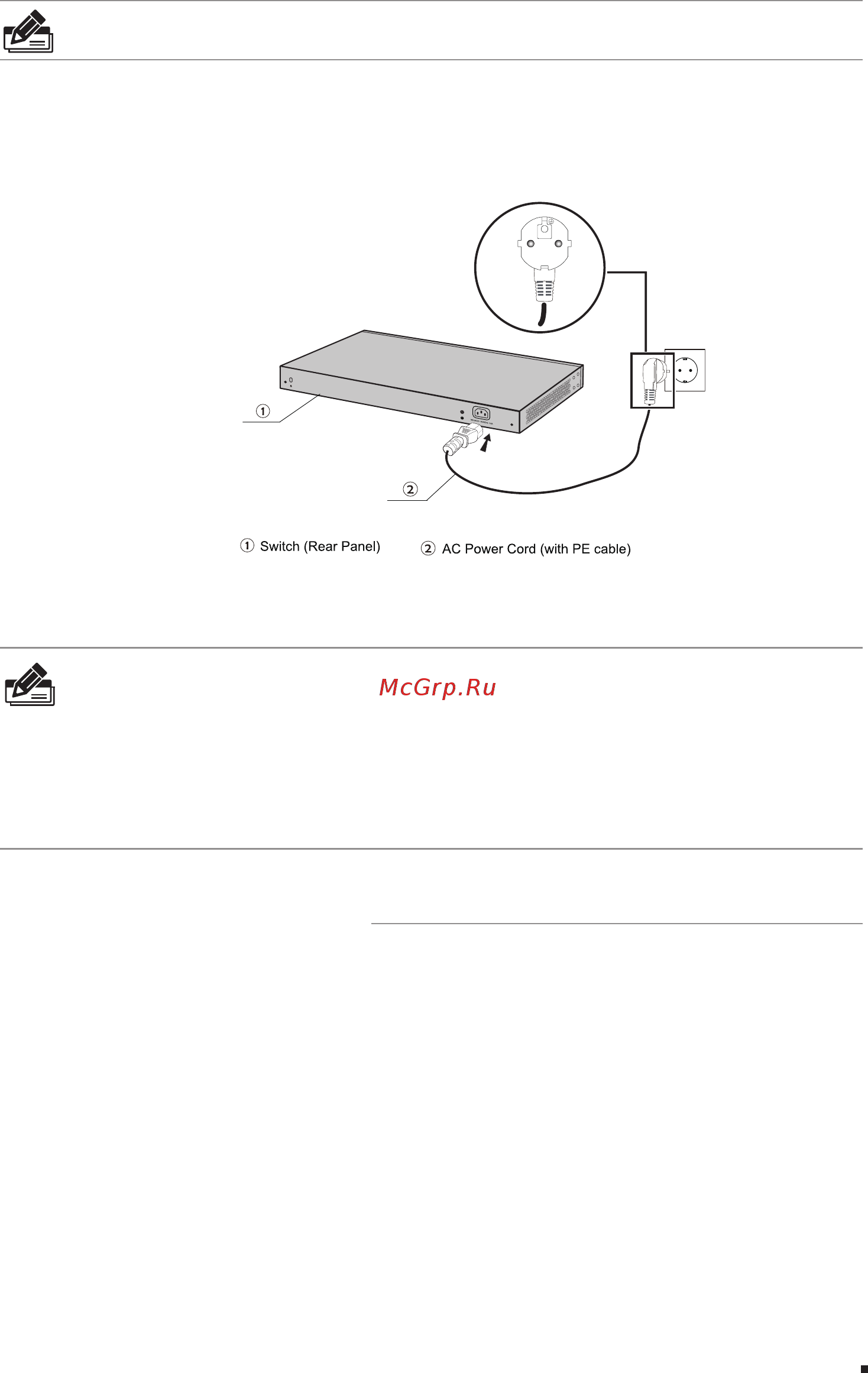

Figure 3-2 Connecting to the Ground

Note:

■

The figure is to illustrate the application and principle. The power plug you get from

the package and the socket in your situation will comply with the regulation in your

country, so they may differ from the figure above.

■

If you intend to connect the device to the ground via the PE (Protecting Earth) cable

of AC power cord, please make sure the PE (Protecting Earth) cable in the electrical

outlet is well grounded in advance.

3.3 Equipotential Bonding

Equipotential Bonding is the practice of intentionally electrically connecting all earthed

systems to the same grounding grid or connecting the grounding grids of all the

earthed systems together through the ground or overground metal so as to create

an earthed equipotential zone. When lightning occurs, the high voltage produced by

lightning current in all systems will meanwhile exist in their ground cables, and thus

all ground cables have the same electrical potential and basically eliminate the electric

strikes between the systems.

The figure below illustrates how to practice equipotential bonding in a network.
