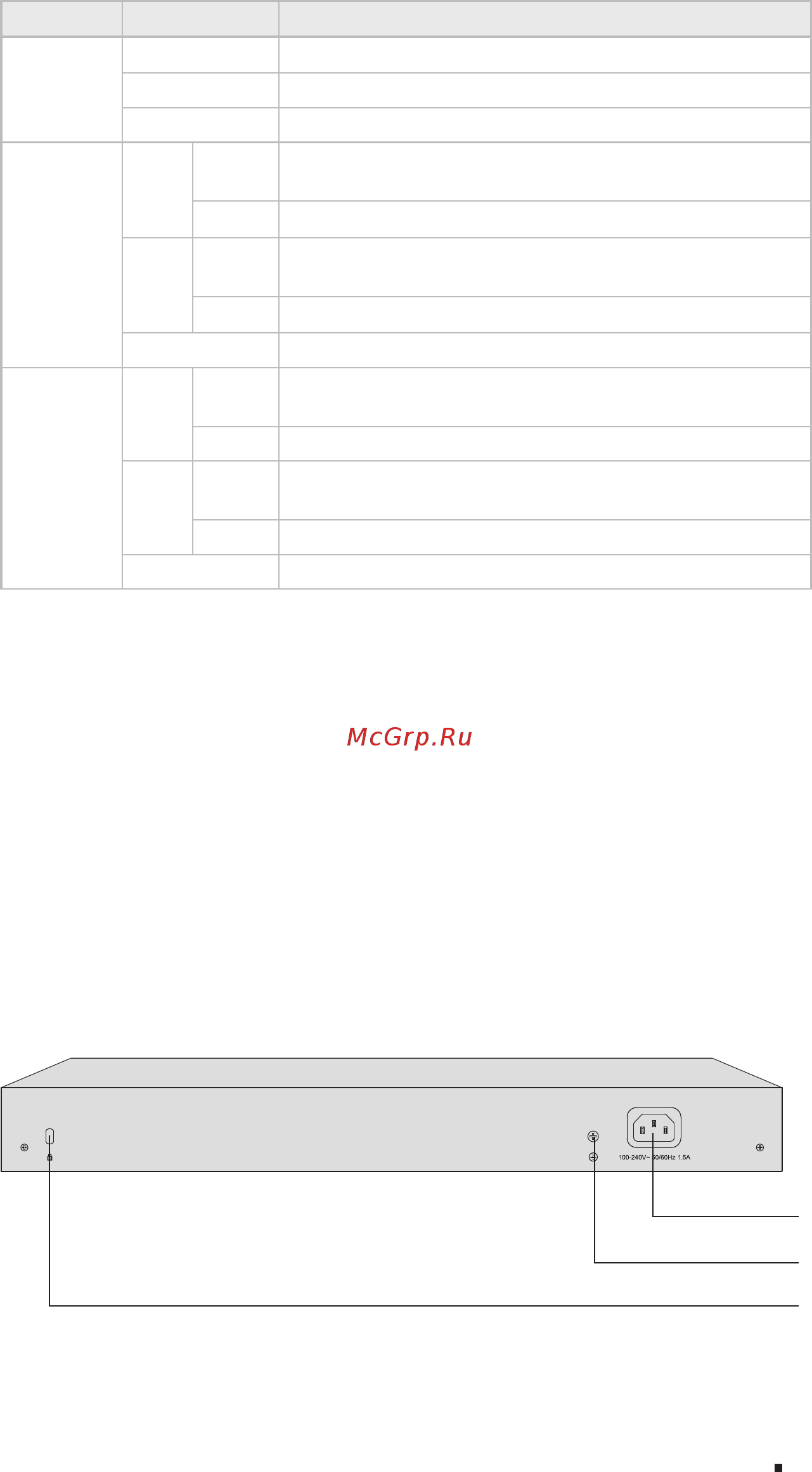

![Tp-Link T1700X-16TS V1 [7/28] Rear panel](/views2/1210233/page7/bg7.png)
JetStream 10-Gigabit Smart Switch
Introduction
02
LED Status Indication
FAN
Green All the fans work properly
Yellow Not all the fans work properly
Off The switch is working abnormally
Link/Act
(Port 1-12)
Green
On
There is a 10Gbps device connected to the corresponding
port but no activity
Flashing Data is being transmitted or received
Yellow
On
There is a 100/1000Mbps device connected to the
corresponding port but no activity
Flashing Data is being transmitted or received
Off No device is connected to the corresponding port
Link/Act
(Por t 13-16)
Green
On
There is a 10Gbps device connected to the corresponding
port but no activity
Flashing Data is being transmitted or received
Yellow
On
There is a 1000Mbps device connected to the
corresponding port but no activity
Flashing Data is being transmitted or received
Off No device is connected to the corresponding port
Reset
Press this button for 5 seconds or above to reset the software setting back to factory
default settings.
100M/1000M/10G RJ45 Port
Designed to connect to the device with a bandwidth of 100Mbps, 1000Mbps or
10Gbps. Each has two corresponding Link/Act LEDs , the left one is 10Gbps and the
right one is 100/1000Mbps.
SFP+ Port
Designed to install the SFP module. T1700X-16TS features 4 individual SFP+ ports
and supports 1G or 10G SFP module connection.
■
Rear Panel
The rear panel of T1700X-16TS features a Kensington security slot, a grounding
terminal and a power socket.
Groundin g Terminal
Powe r So cket
Kensington Security Slot
Figure 1-2 Rear Panel
