JetStream 10-Gigabit Smart Switch

Configuration

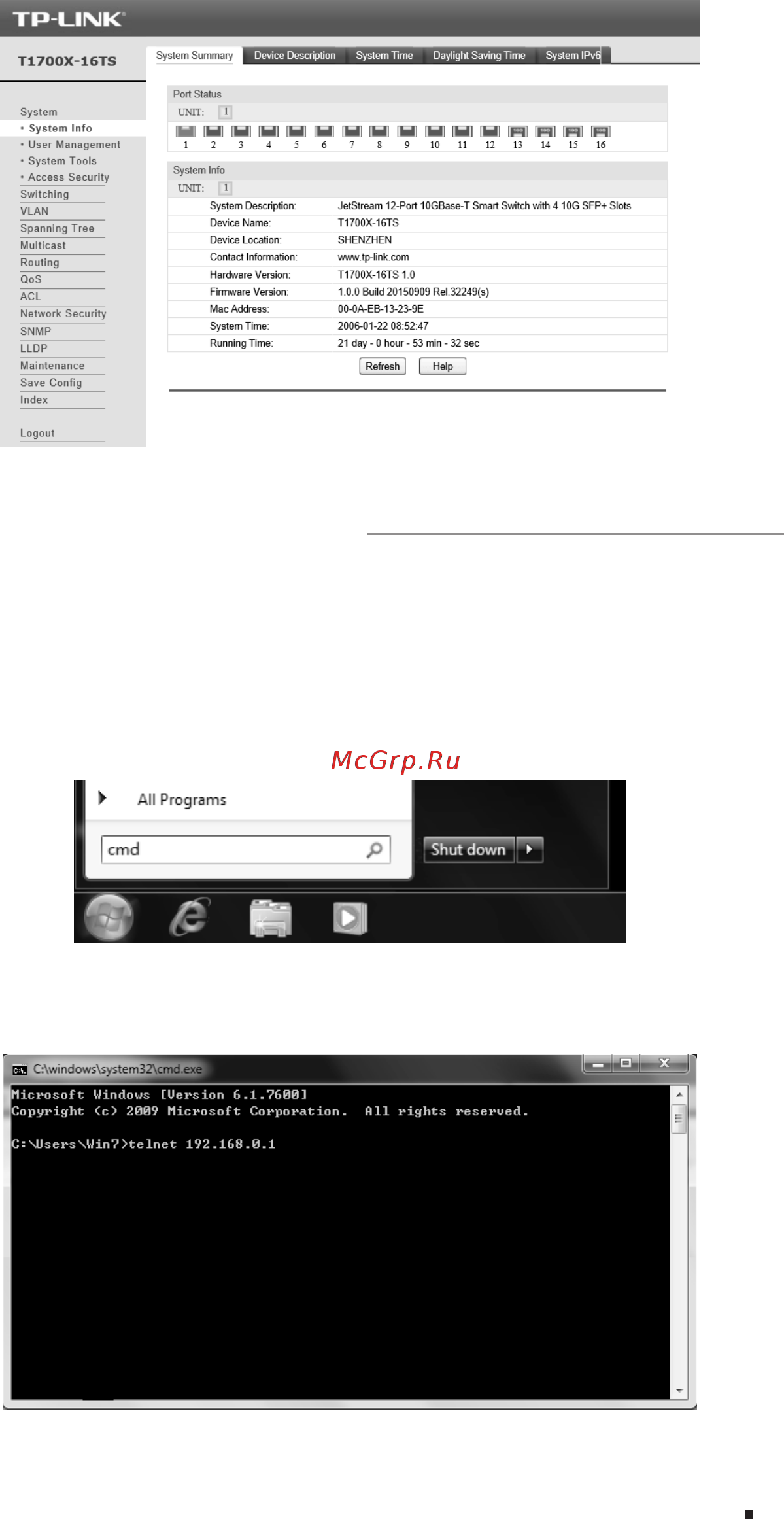

Figure 5-3 Main Page of the Switch

5.2 Conﬁgure the Switch Using CLI

You can log on to the switch and access the CLI by Logging on to the switch remotely

by a Telnet connection through an Ethernet port.

To log on to the switch by a Telnet

connection, please take the following steps:

1. Make sure the switch and the PC are in the same LAN.

2. Click Start and type in "cmd" in the Search programs and files window and press the

Enter button.

Figure 5-4 Open the Run window

3. Type "telnet 192.168.0.1" in the command prompt shown as Figure 5-5, and press

the Enter button.

Figure 5-5 Connecting to the Switch
