JetStream 10-Gigabit Smart Switch

Configuration

4. Type the User name and Password (the factory default value for both of them is

admin) and press the Enter button, then you can use the CLI now, which is shown

as Figure 5-6.

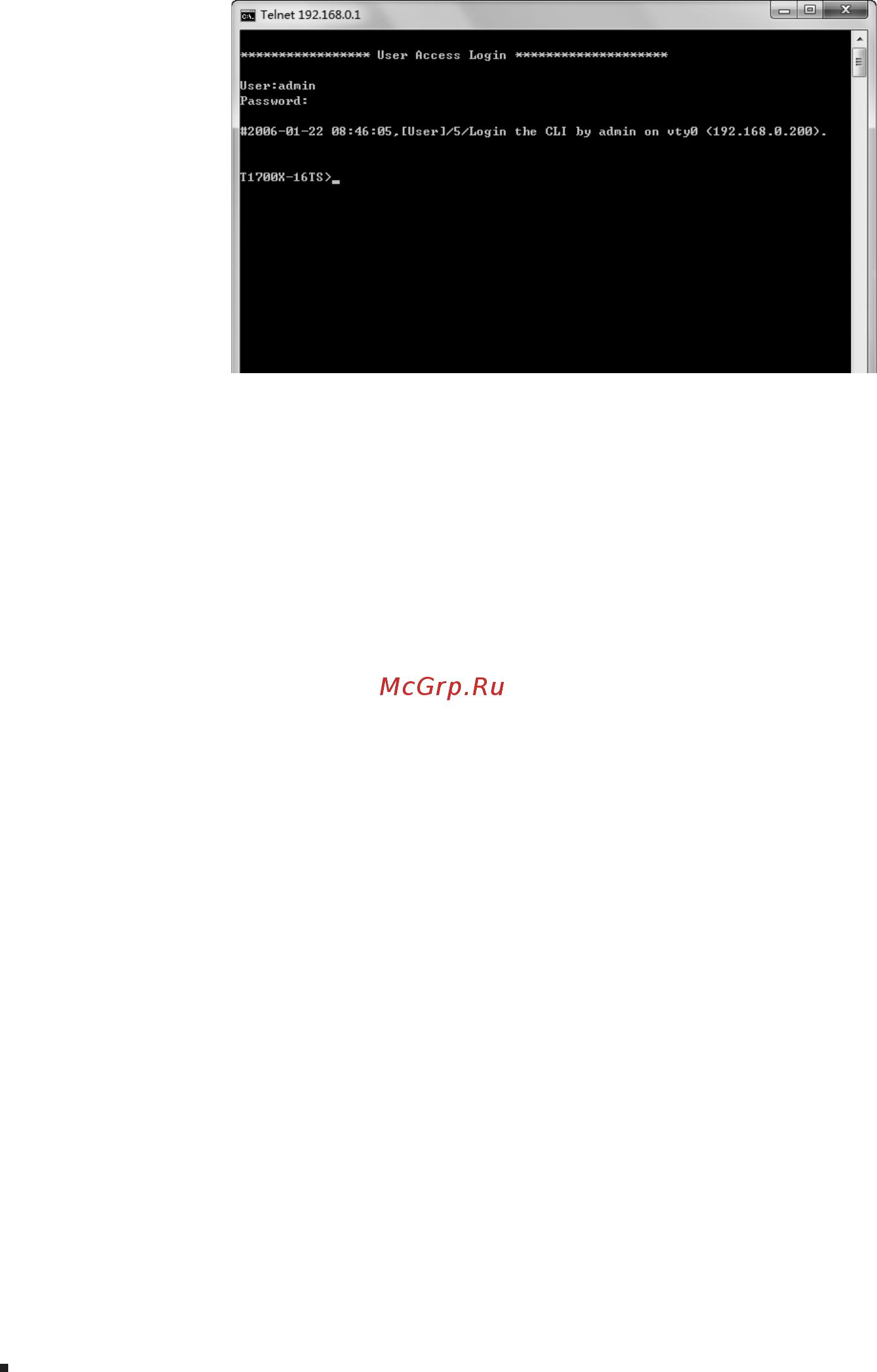

Figure 5-6 Log in the Switch

For detailed CLI configuration instructions, please refer to the CLI Reference Guide on

the resource CD.
