JetStream 10-Gigabit Smart Switch

Lightning Protection

When purchasing or using a signal lightning arrester, please observe the following

rules:

■

The port rate of the signal lightning arrester should match the rate of the desired

port on the device. If it is not matched, this signal lighting arrester will not work.

Purchase a standard lightning arrester.

■

Install signal lightning arrester near the protected device and connect it to the

ground via a shorter ground cable.

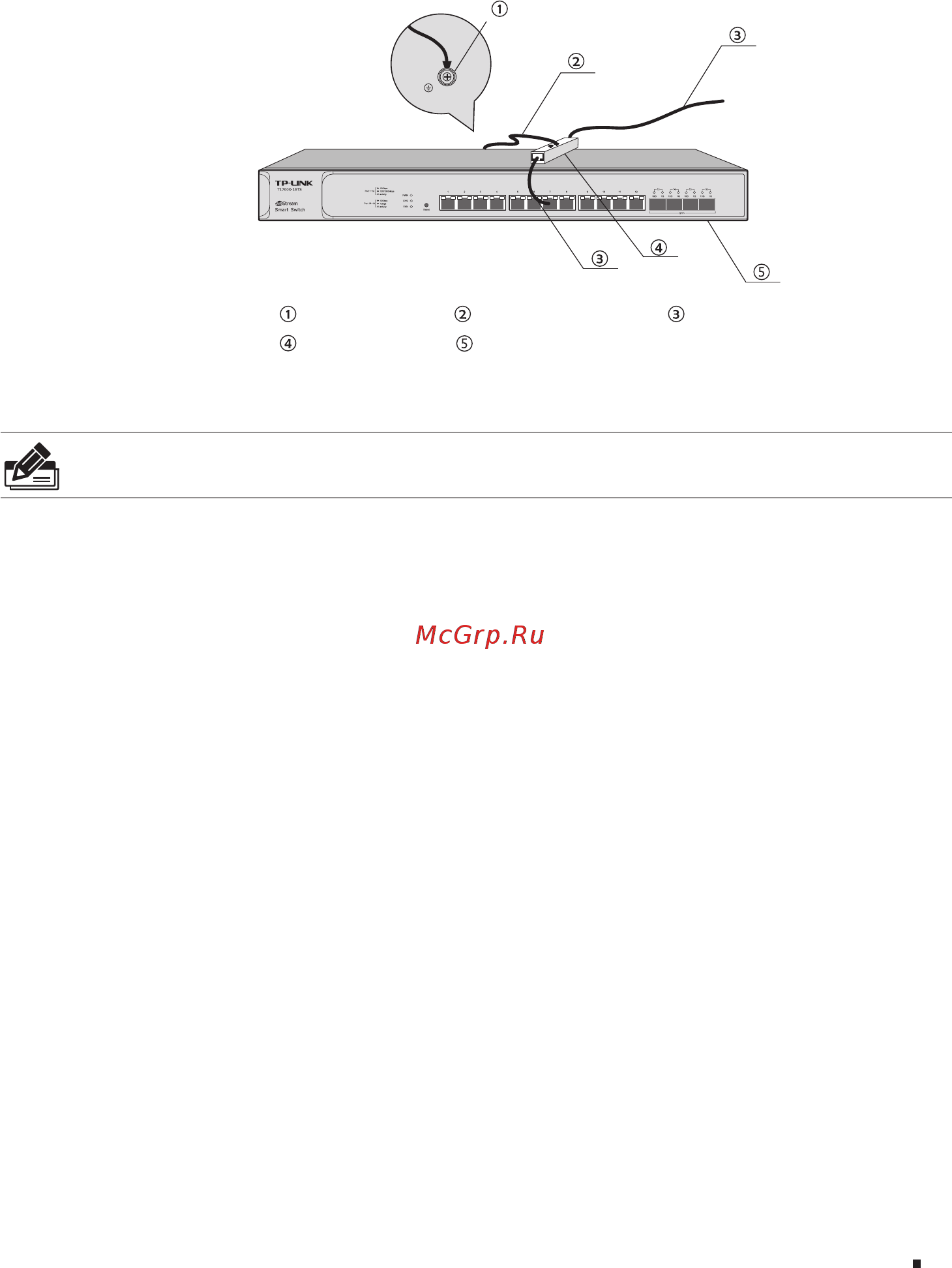

Ethernet CableEquipotential Bonding CableGrounding Terminal

Signal Lightning Arrester Device

Figure 3-4 Lighting Arrester Connection

Note: Signal lightning arrester is not provided with our product. If needed, please self

purchase it.
