- 72 -
GA-8IG1000MT Motherboard
English

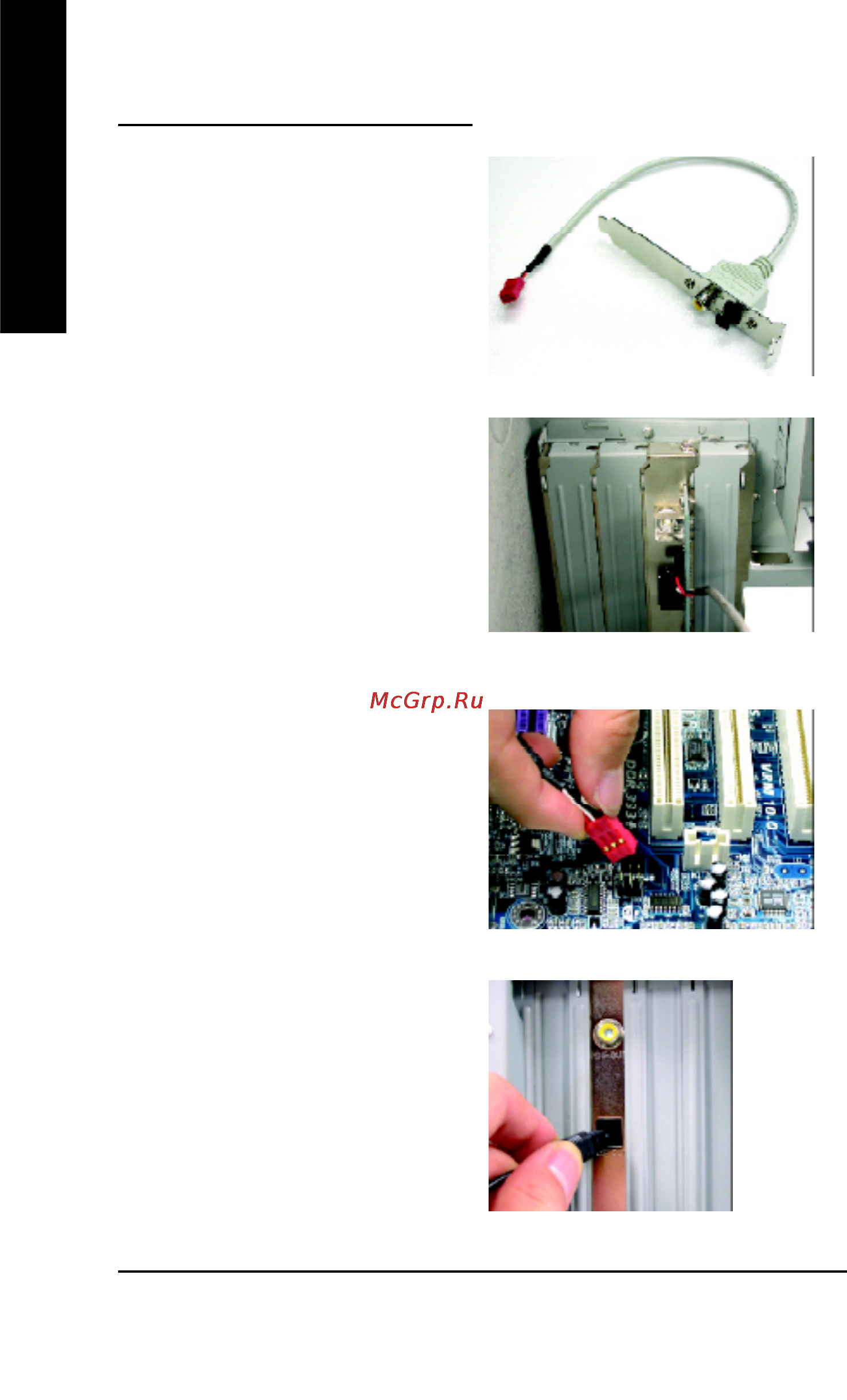

SPDIF Output Device (Optional Device)
3. Connect SPDIF to the SPDIF decoder.
1. Connect the SPDIF output device to the rear
bracket of PC, and fix it with screw.
2. Connect SPDIF device to the m otherboard.
A "SPDIF output" device is available on the
motherboard. Cable with rear bracket is provided
and could link to the "SPDIF output" connector (As
picture.) For the further linkage to decoder, rear
bracket provides coaxial cable and Fiber
connecting port.
