- 74 -
GA-8IG1000MT Motherboard
English

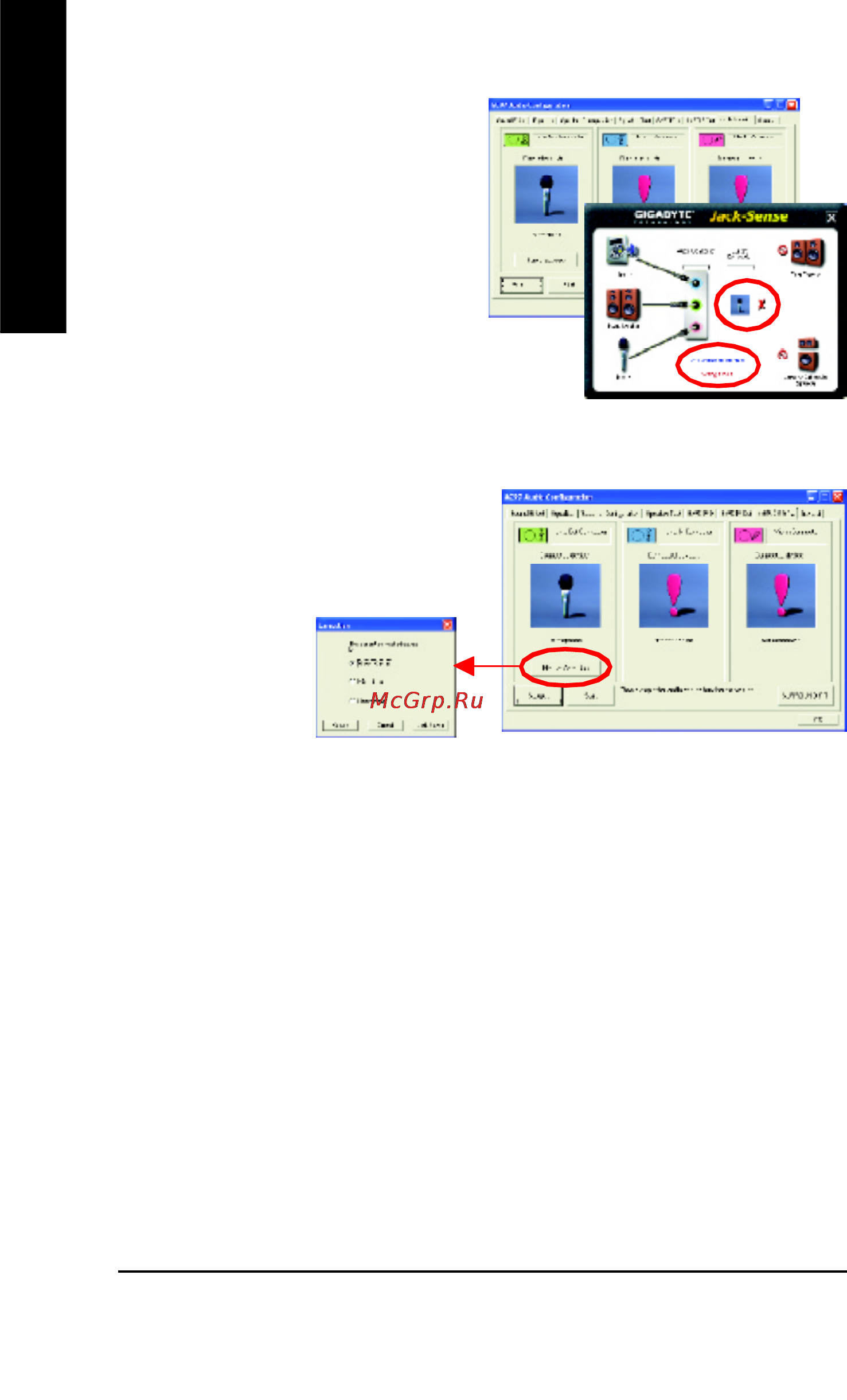

Manual setting:
If the device picture shows different from what you
set, please press "Manual Selection" to set.
If you set wrong with the connectors, the warning
message will come out as right picture.
8ig1000mt_1001_t.p65 2003/4/15, 下午 03:1274
