Chapter 2 Introduction

Thanks for choosing the TL-SG105E/TL-SG108E/TL-SG108PE/TL-SG1016DE/TL-SG1024DE

Gigabit Easy Smart Switch!

2.1 Overview of the Switch

The TL-SG105E/TL-SG108E/TL-SG108PE/TL-SG1016DE/TL-SG1024DE Gigabit Easy Smart

Switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business

networks that require simple network management. Network administrators can effectively monitor

traffic via Port Mirroring, Loop Prevention and Cable Test features. To optimize traffic on your

business network, they offer port-based, tag-based, DSCP-based QoS to keep latency-sensitive

traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can

improve security and meet more network segmentation requirements. Moreover, with the

innovative energy-efficient technology, they are eco-friendly solution for your business network.

Note:

For details about Easy Smart Configuration Utility, please refer to the User Guide of the Easy

Smart Configuration Utility in the Resource CD.

2.2 Appearance Description

2.2.1 Front Panel

 TL-SG105E/TL-SG108E

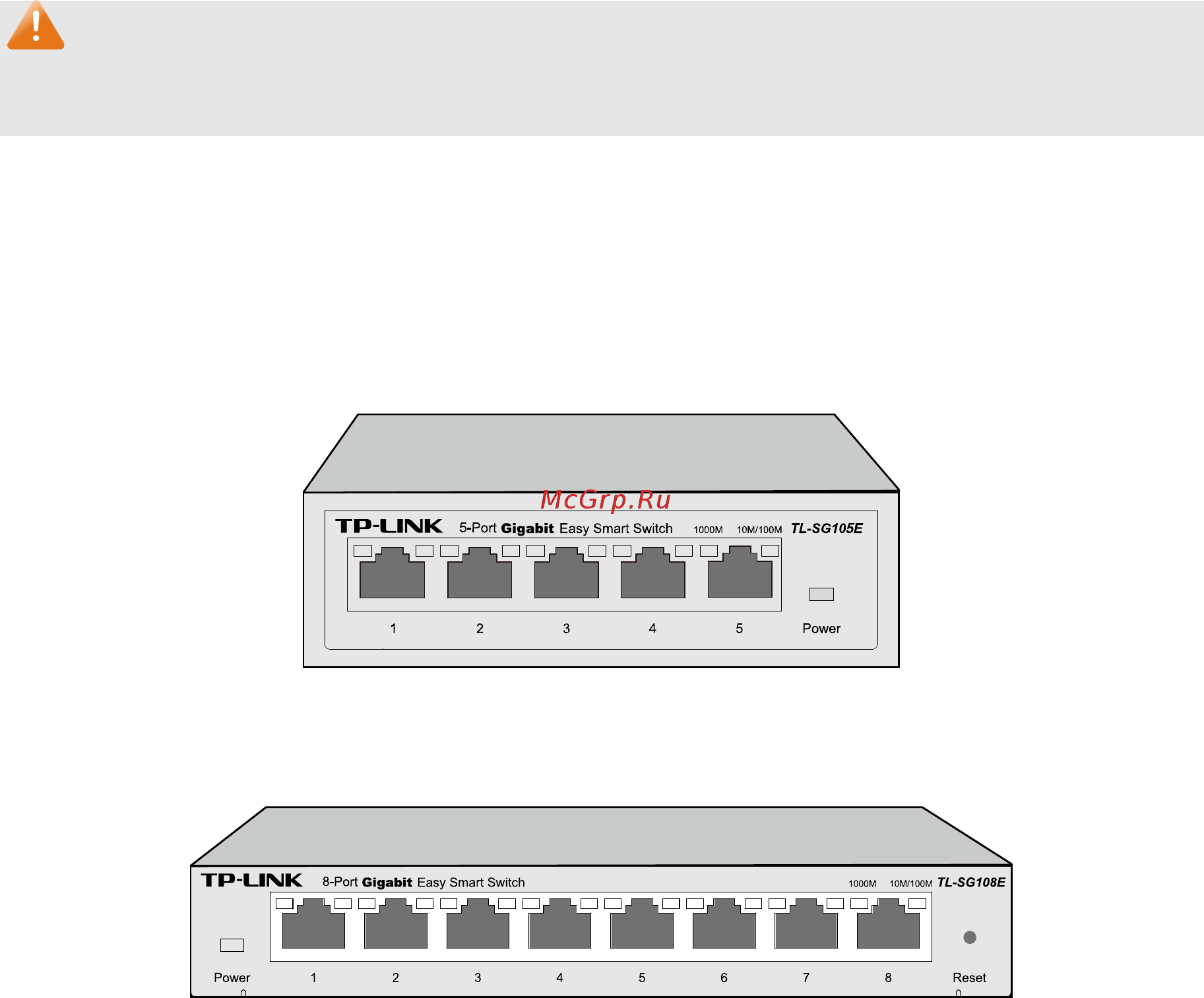

The front panel of TL-SG105E is shown as Figure 2-1.

Figure 2-1 Front Panel of

TL-SG105E

The front panel of TL-SG108E is shown as Figure 2-2.

Figure 2-2 Front Panel of

TL-SG108E

The following parts are located on the front panel of the switch:

 Reset: With the switch powered on, press this button for five seconds or above to reset the

software setting back to factory default setting. (For TL-SG108E only)

 1000Mbps Ports: Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding 1000Mbps LED and 10/100Mbps LED.
