RxBadPkt: Displays the number of error packets received on the port.
6.2 Port Mirror
Port mirror functions to monitor and mirror network traffic by forwarding copies of incoming and
outgoing packets from one/multiple ports (mirrored port) to a specific port (mirroring port). Usually,
the mirroring port is connected to a data diagnosis device, which is used to analyze the mirrored
packets for monitoring and troubleshooting the network.
Choose the menu Monitoring→Port Mirror to load the following page.

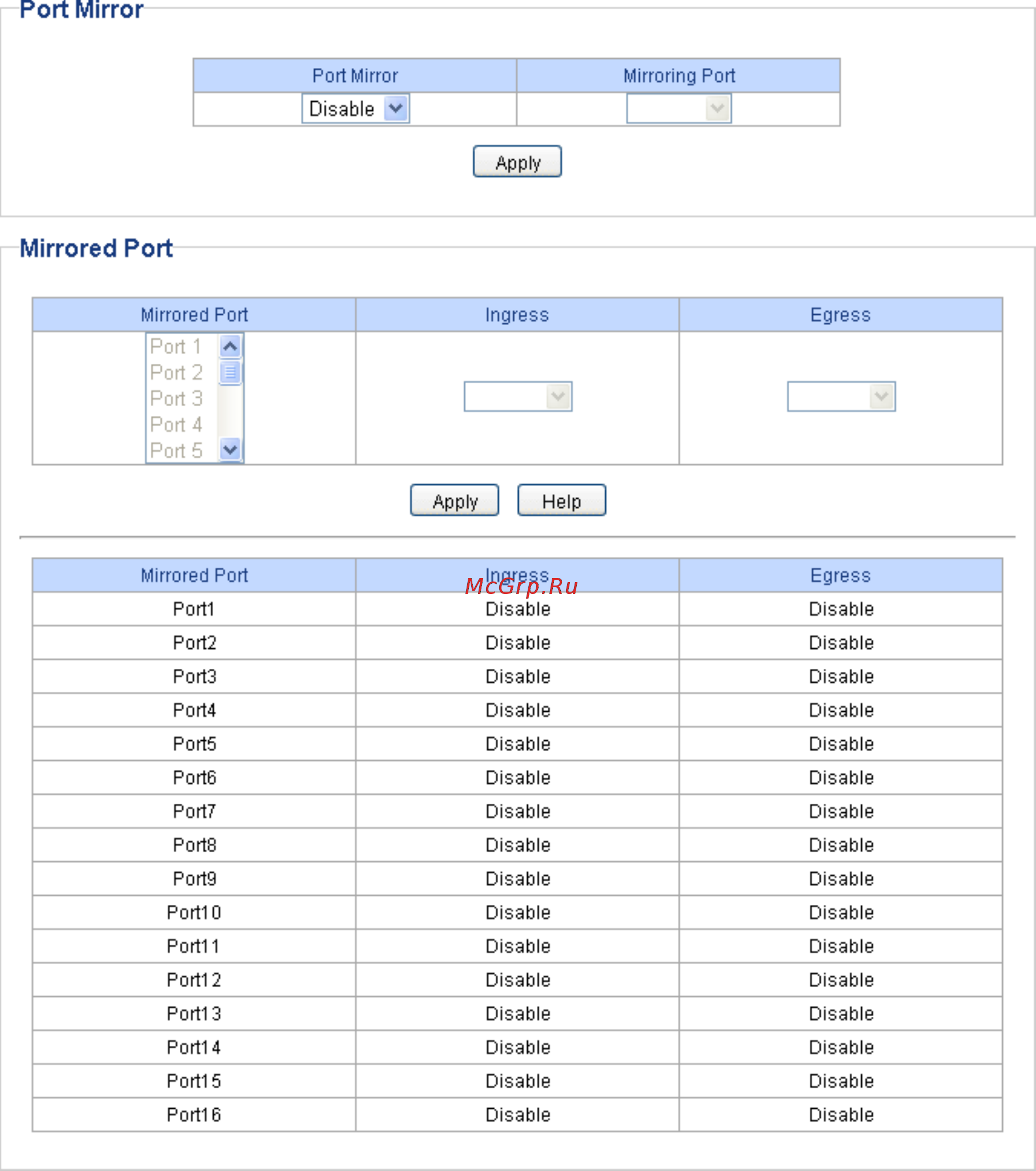

Figure 6-2 Port Mirror
