Tp-Link TL-SG1016DE V2 [38/48] Q pvid setting

Tagged:

Click the check box to configure the egress rule of the traffic on

this port as tagged. The switch adds the tag header before

sending the packet.

Not Member: Click the check box to exclude the port from the current VLAN.

7.4 802.1Q PVID Setting

PVID (Port Vlan ID) is the default VID of the port. When the switch receives an un-VLAN-tagged

packet, it will add a VLAN tag to the packet according to the PVID of its received port and forward

the packets.

When creating VLANs, the PVID of each port, indicating the default VLAN to which the port

belongs, is an important parameter with the following two purposes:

（1） When the switch receives an un-VLAN-tagged packet, it will add a VLAN tag to the packet

according to the PVID of its received port

（2） PVID determines the default broadcast domain of the port, i.e. when the port receives UL

packets or broadcast packets, the port will broadcast the packets in its default VLAN.

On this page you can configure PVID of the specified port. By default, the PVID of all ports is 1.

Choose the menu VLAN→802.1Q VLAN Port Setting to load the following page.

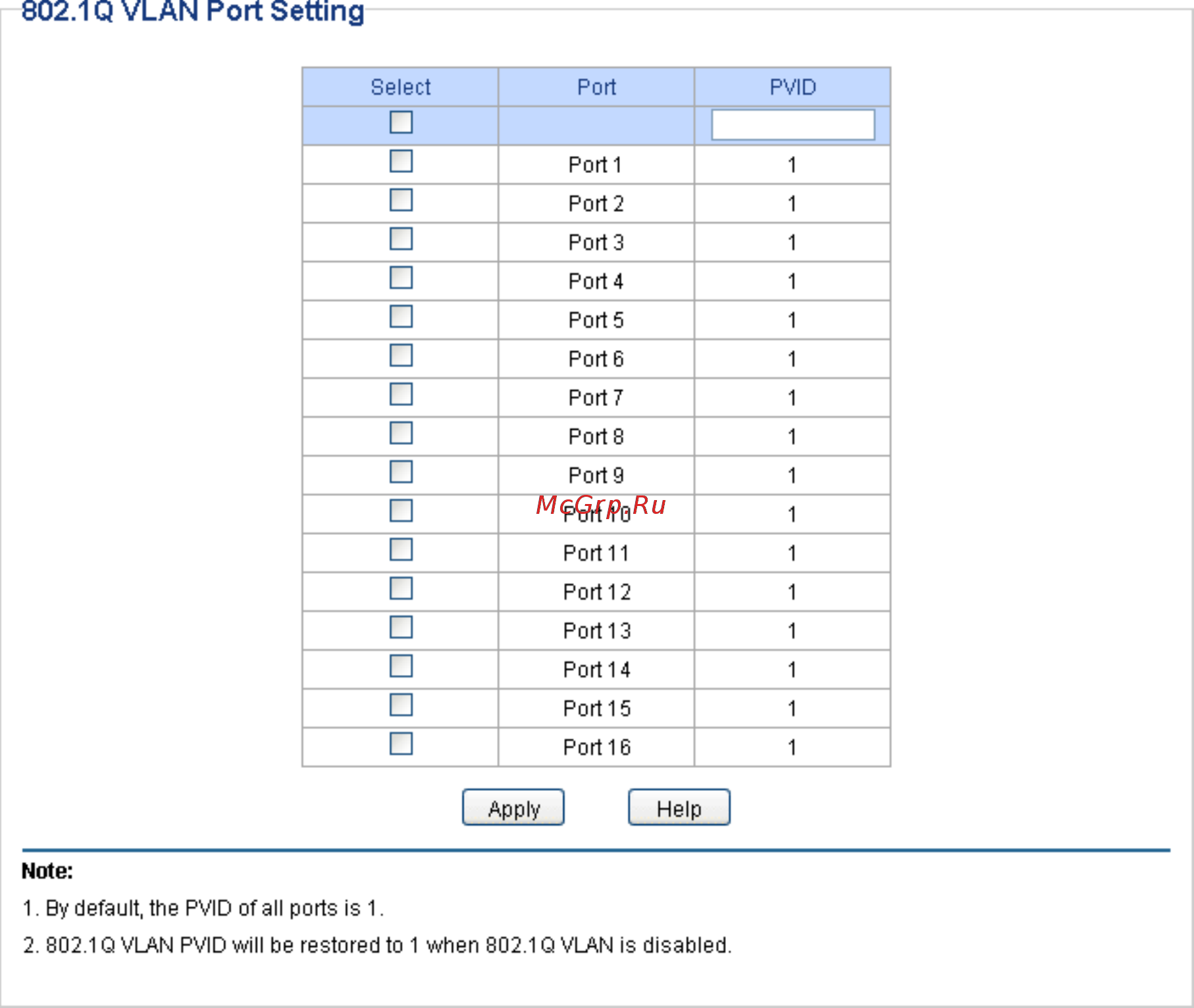

Figure 7-6

802.1Q VLAN Port Setting
