Choose the menu VLAN→MTU VLAN to load the following page.

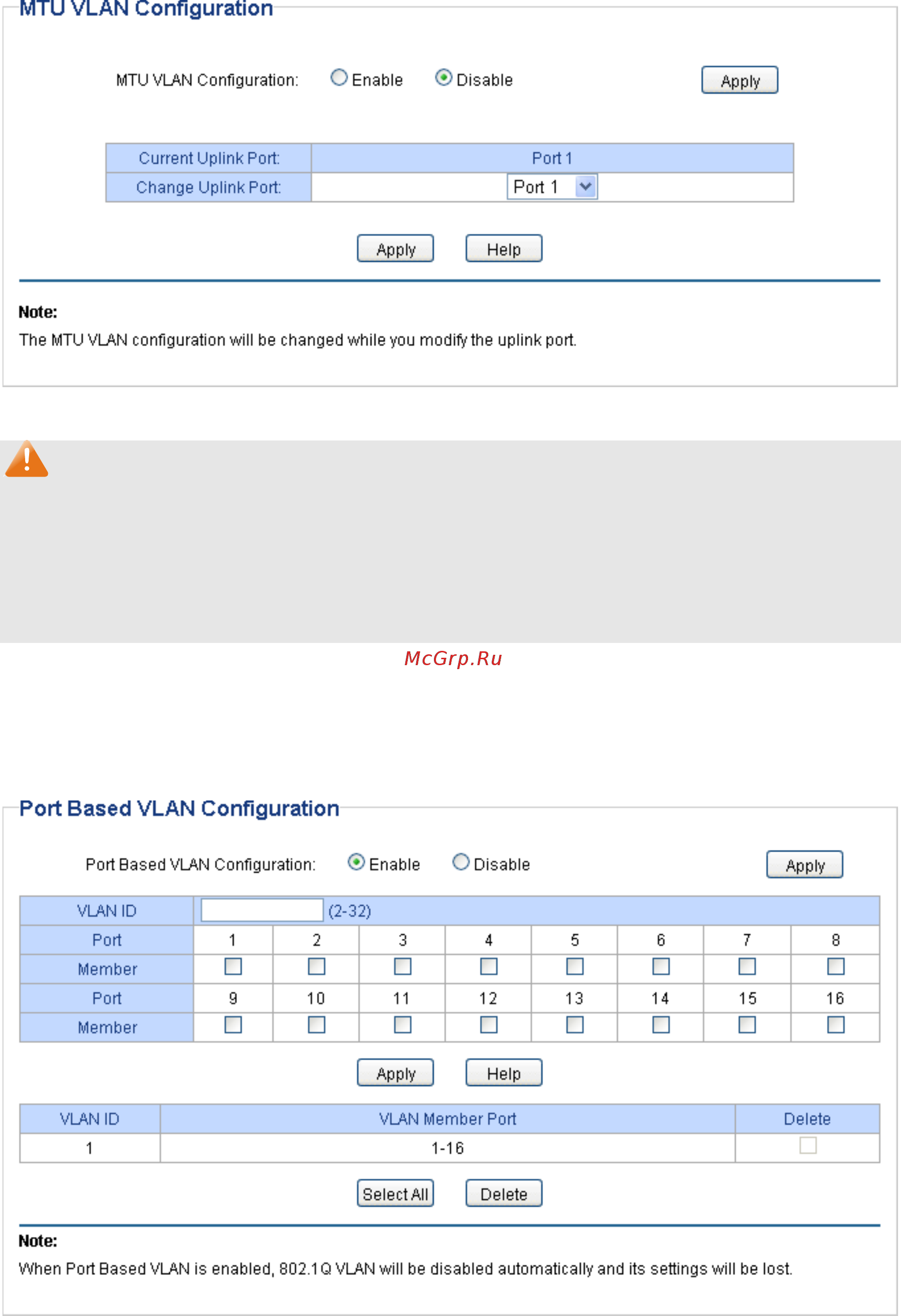

Figure 7-3 MTU VLAN Configuration

Note:

1. The uplink port will form several VLANs with each of the other ports. Each VLAN contains two

ports, the uplink port and one of the other ports in the switch, thus the uplink port can

communicate with any other port but other ports cannot communicate with each other.

2. For the first time the MTU VLAN mode is enabled, the switch will set port 1 as the uplink port

by default.

7.2 Port Based VLAN

On this page you can configure Port Based VLAN feature and view the related settings.

Choose the menu VLAN→Port Based VLAN to load the following page.

Figure 7-4 Port Based VLAN Configuration
