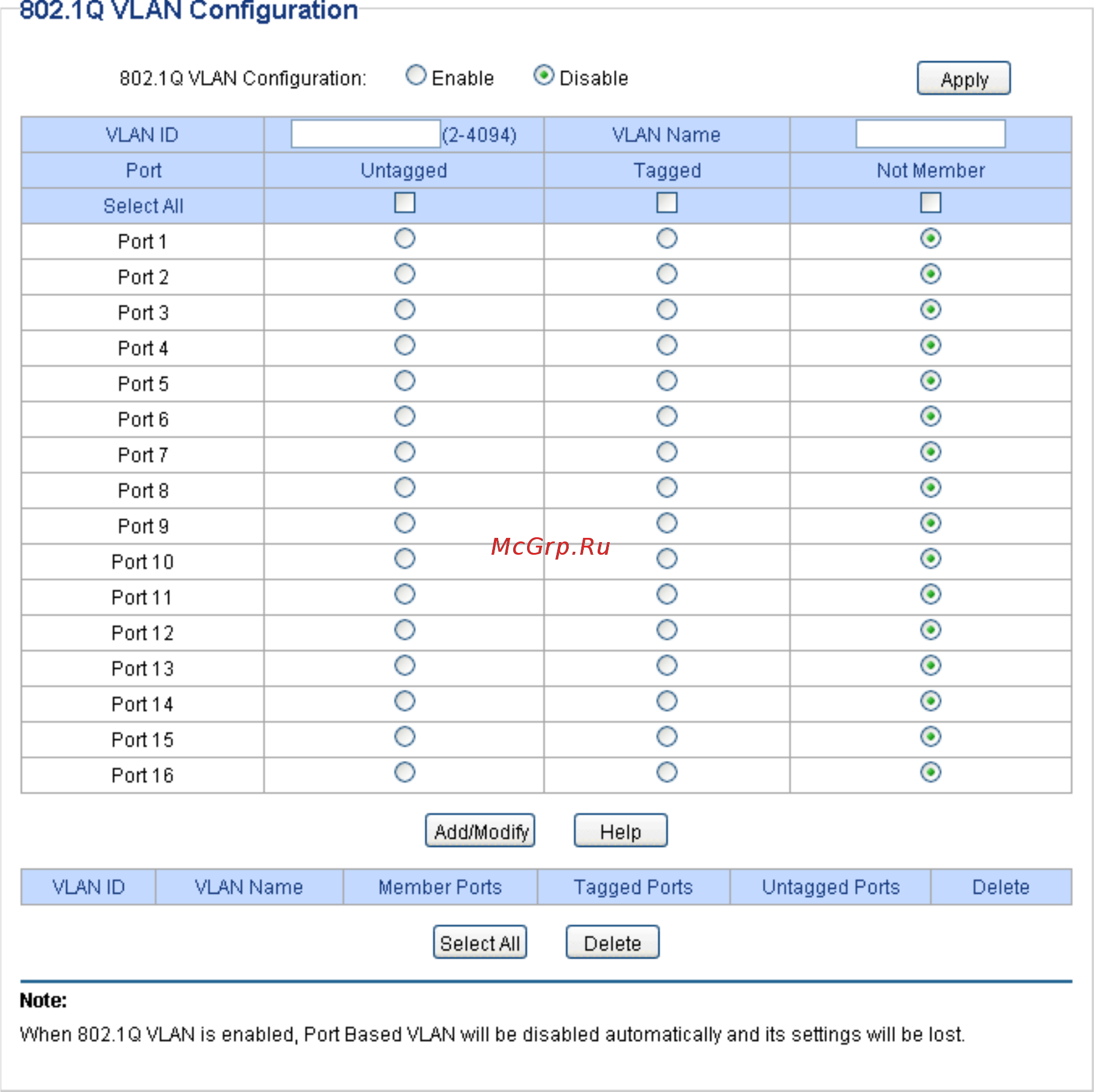

Figure 7-5 802.1Q VLAN Configuration
To ensure the normal communication of the factory switch, the default VLAN of all ports is set to be
VLAN1. VLAN 1 cannot be modified or deleted.
The following entries are displayed on this screen:
802.1Q VLAN Configuration
802.1Q VLAN
Configuration
：
Enable or disable 802.1Q VLAN mode.
VLAN ID
：
Enter the ID number of VLAN. It ranges from 2 to 4094.
VLAN Name
：
Give a name to the VLAN for identification.
Port
：
Displays the port number.
Untagged
：
Click the check box to configure the egress rule of the traffic on
this port as untagged. The switch dro
ps the tag header before
sending the packet.
