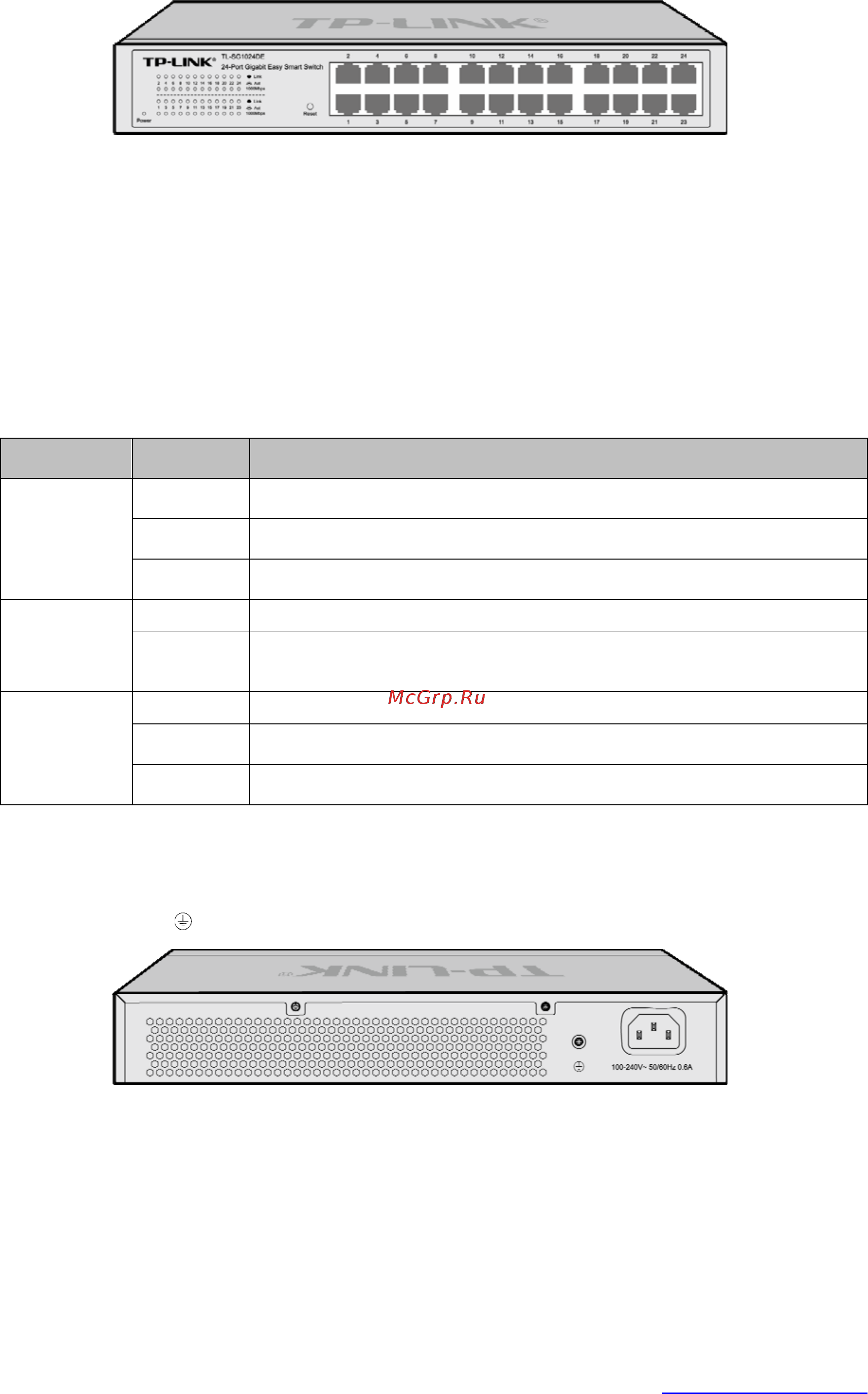

Figure 2-2 Front Panel of TL-SG1024DE

The following parts are located on the front panel of the switch:

 Reset: With the switch powered on, press this button for five seconds or above to reset the

software setting back to factory default setting.

 1000Mbps Ports: Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding 1000Mbps LED and link/Act LED.

 LEDs

Name Status Indication

On Power is on.

Flashing Power supply is abnormal.

Power

Off Power is off or power supply is abnormal.

On A 1000Mbps device is connected to the corresponding port.

1000Mbps

Off

A 10/100Mbps device or no device is connected to the

corresponding port.

On A device is connected to the corresponding port but no activity.

Flashing Data is being transmitted or received.

Link/Act

Off No device is connected to the corresponding port.

2.3.2 Rear Panel

The rear panel of TL-SG1016DE/TL-SG1024DE features a power socket and a Grounding

Terminal (marked with

Figure 2-3 Rear Panel of TL-SG1016DE

 Grounding Terminal: TL-SG1016DE/TL-SG1024DE already comes with Lightning Protection

Mechanism. You can also ground the switch through the PE (Protecting Earth) cable of AC cord

or with Ground Cable.

 AC Power Socket: Connect the female connector of the power cord here, and the male

connector to the AC power outlet. Please make sure the voltage of the power supply meets the

requirement of the input voltage (100-240V~ 50/60Hz 0.6A).
