- 13 - Hardware Installation Process
English
Step 3: Connect ribbon cables, cabinet wires, and power
supply

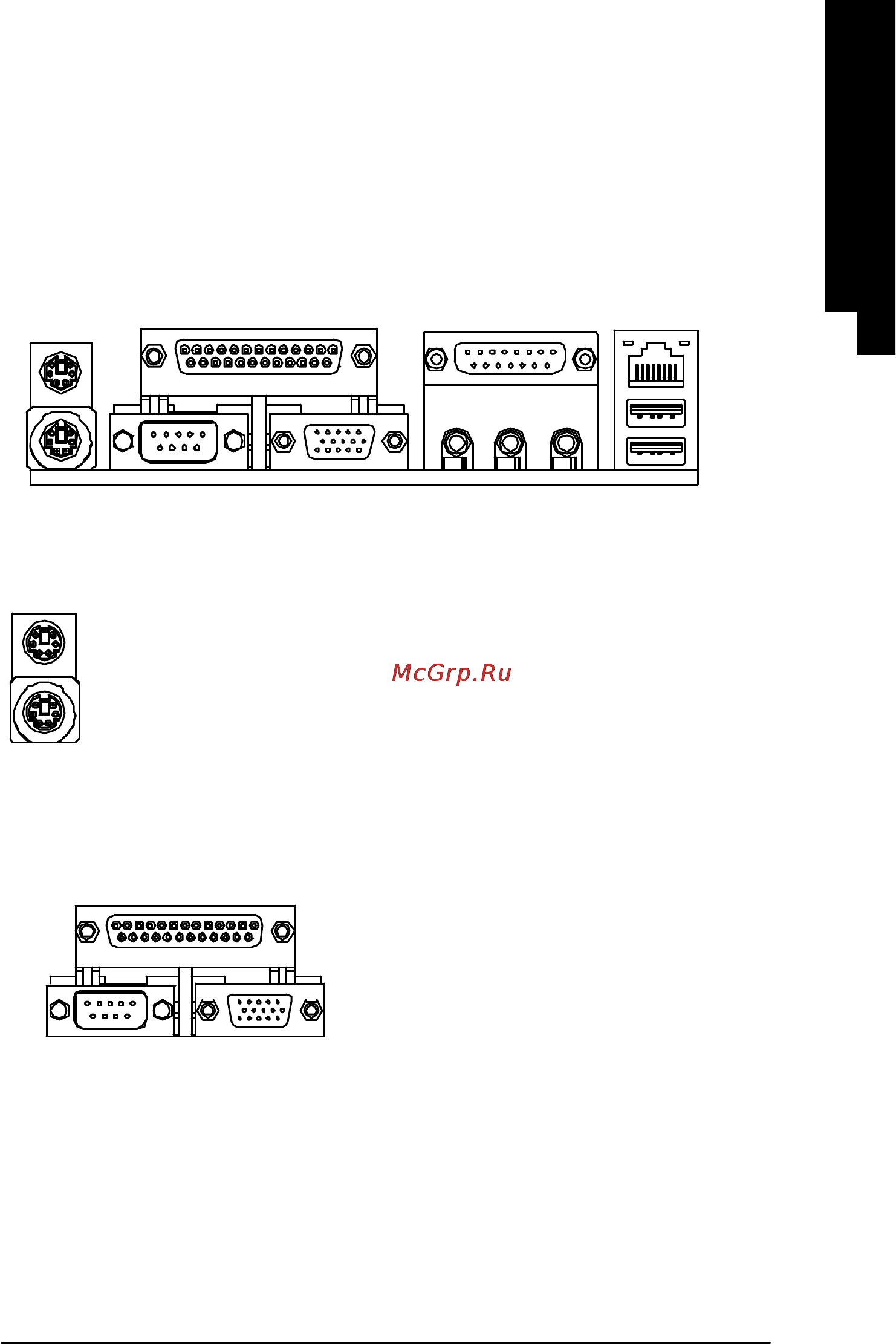

Step3-1 : I/O Back Panel Introduction
u PS/2 Keyboard and PS/2 Mouse Connector
v Parallel Port ,VGA port and Serial Ports (COMA)
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
ØThis connector supports standard PS/2
keyboard and PS/2 mouse.
u
v w
x
y
Parallel Port
(25 pin Female)
COMA VGA
Serial Port
(9 pin Male)
VGA Port
(15 pin Female)
ØThis mainboard supports 1 standard COM port,
1 VGA port and 1 LPT port. Device like printer
can be connected to LPT port ; mouse and
modem etc can be connected to COM port.
