RIGOL Chapter 1 Quick Start
1-26 DP800 User’s Guide

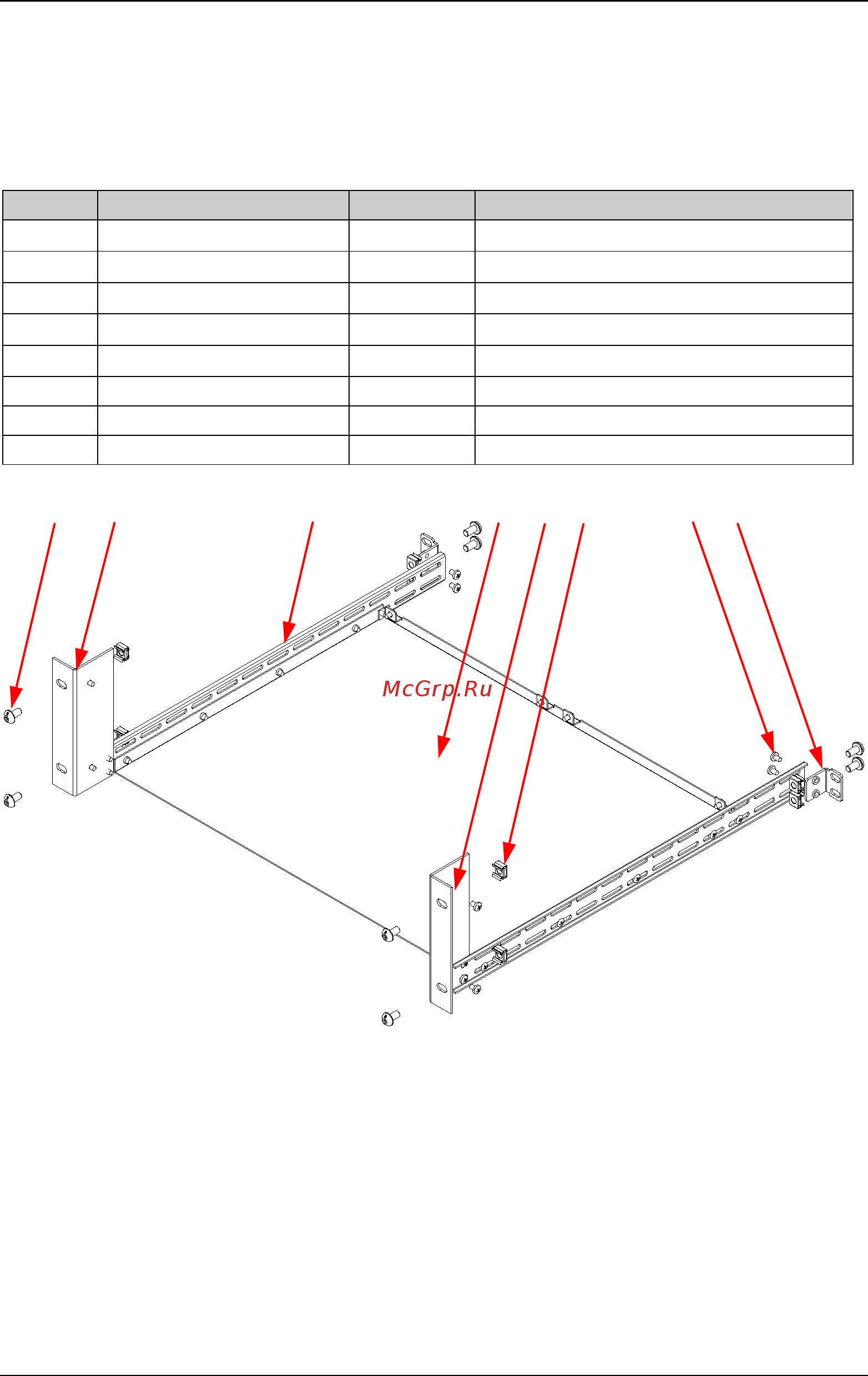

To Install Two Instruments
Part List
Table 1-6 Rack mount kit (RM-2-DP800) part list
No.
Name
Qty.
Description
①
Rack Support Shelf
1
②
Left Fixing Part
1
③
Right Fixing Part
1
④
Rack Rail
2
⑤
Side Beam Fixing Part
2
⑥
M4 Screw
26
M4×6 Phil-Slot Pan Head Screw
⑦
M6 Screw
8
M6×16 Phil-Slot Pan Head Screw
⑧
M6 Nut
8
M6×5 Lock Blade Square Nut
(a)
⑦
②
④
①
③
⑧
⑥
⑤
