9-EN
01GB05PXAH800.fm
ALPINE PXA-H800_EN 68-13530Z65-A (B5)

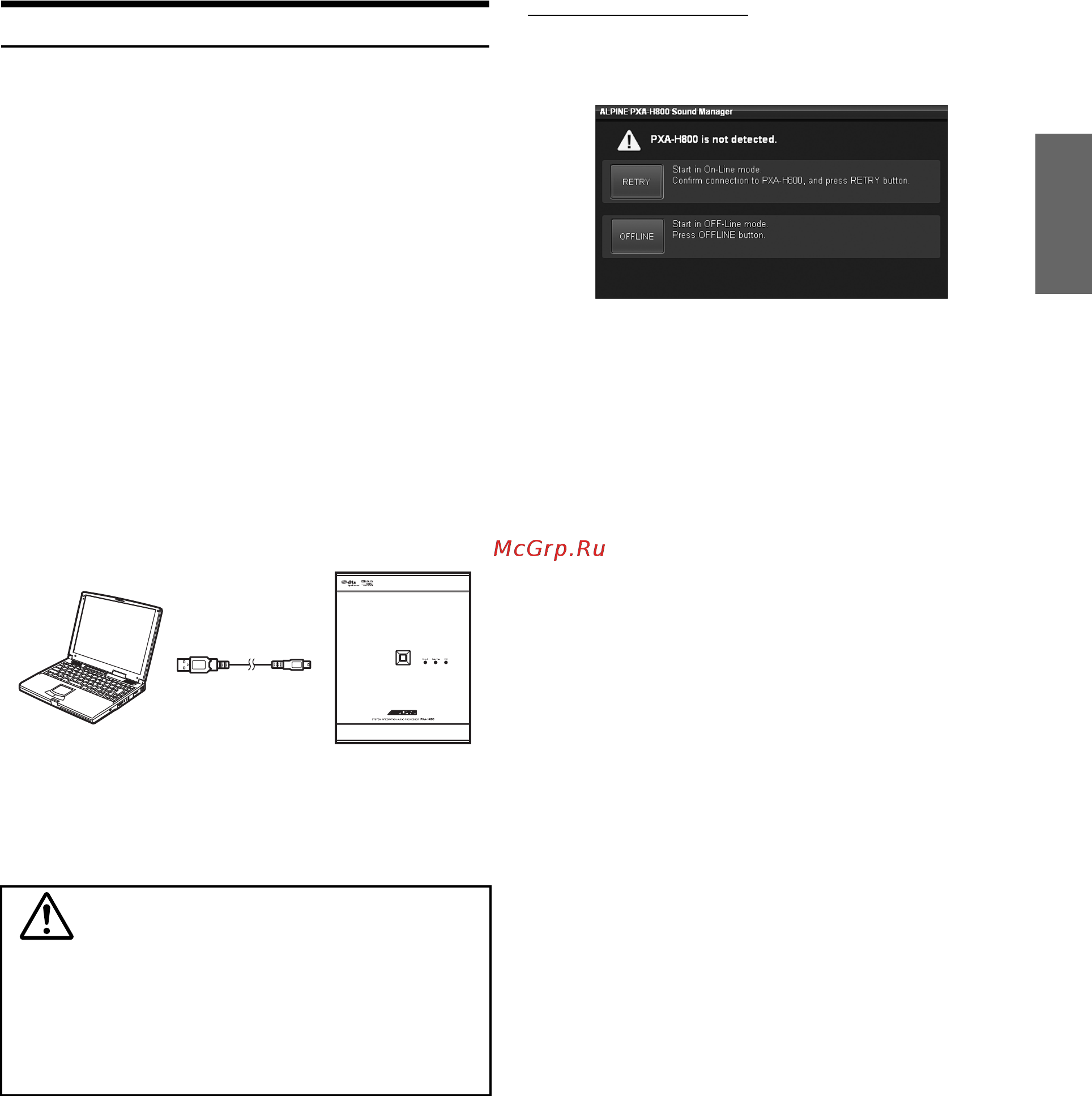

Installing Sound Manager for PXA-H800
When you install Sound Manager for PXA-H800 on a PC, you can set/
adjust the audio settings on the PC.
Caution before installing:
• This Program runs under Microsoft® Windows® XP, Vista, 7
only.
Recommended specifications
OS: Windows XP, Windows Vista , Windows 7
CPU: 1.6 GHz or higher
Memory: 1 GB or higher
HDD: 512 MB or more available space
Display: 1024×576 or higher
• Install the Sound Manager software for PXA-H800 before
connecting the PXA-H800 to your personal computer.
• Before installing, all active programs must be stopped.
1
Insert the supplied CD-ROM (Sound Manager for
PXA-H800) into the CD-ROM drive. Run the
setup.exe file. Follow the installation instructions on
the screen.
2
Connect a PC to Computer connection terminal of
PXA-H800 with the included USB cable.
• Install the PXA-H800 in your vehicle before you connect a PC to it
(refer to the Installation manual). Turn the ignition key to the ACC or
ON position.
3
Start Sound Manager for PXA-H800.
About the OFFLINE mode
Sound Manager for PXA-H800 checks the connection with the PXA-
H800 at startup. When the connection is detected, it starts in the online
mode. If the connection is not detected, a message will be displayed.
To start the PXA-H800 in the offline mode, click [OFFLINE]. To
set in the offline mode, perform the following steps to reflect the
settings on the PXA-H800.
1
After making adjustments and settings, save the
data on the PC, referring to “Saving the Setup Data
(File)” (page 10).
2
Close Sound Manager for PXA-H800.
3
Connect to the PXA-H800 to your PC and start
Sound Manager for PXA-H800 in the online mode.
• Install the PXA-H800 in your vehicle before you connect a PC to it
(refer to the Installation manual). Turn the ignition key to the ACC or
ON position.
4
Load the data saved on the PC referring to “Loading
the Setup Data (File)” on page 10.
The settings of Sound Manager for PXA-H800 are reflected
on the PXA-H800.
CAUTION
• Strictly observe the Warnings and Cautions written by the
manufactures of your PC and peripheral equipment.
• We do not accept responsibility for data lost due to the
incorrect operation of the Sound Manager for PXA-H800.
We recommend you to back-up your important data
regularly.
USB Cable
