13-EN
01GB06PXAH800.fm
ALPINE PXA-H800_EN 68-13530Z65-A (B5)

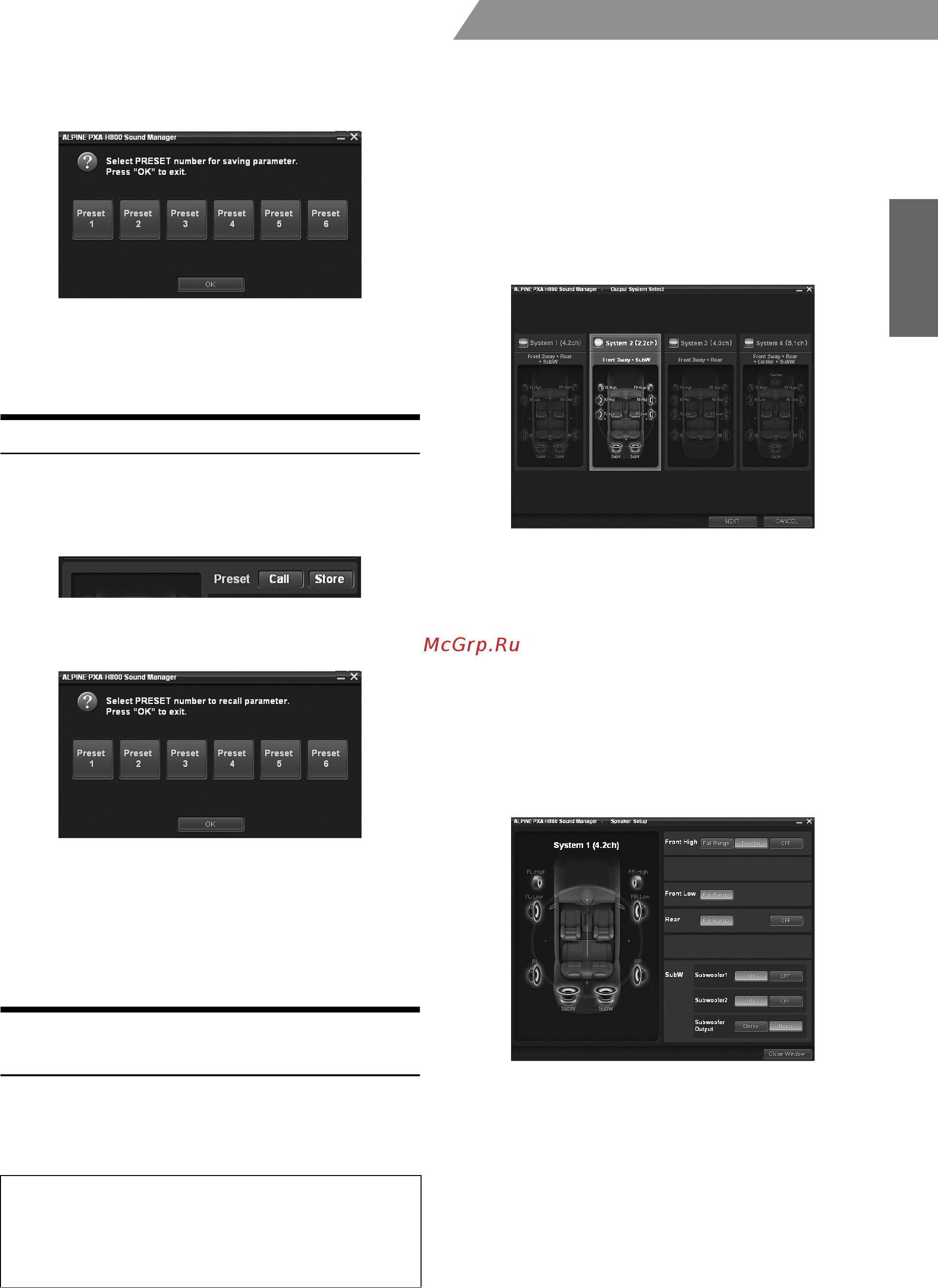

From a PC
3
Click one from [Preset 1] to [Preset 6], and then click
[OK].
The data is stored in the preset number.
• The function is operable when Defeat is set to OFF.
• Measurement values will not be lost in the event the system is reset or
battery power is disconnected.
Recalling a Stored Setting (Preset Call)
The preset memory stores various setting/adjustment information. Thus,
it takes some time to call data from the preset memory.
1
Click [Call] for “Preset” in the main menu.
2
Click one from [Preset 1] to [Preset 6], and then click
[OK].
The values of the selected preset number are retrieved.
• The function is operable when Defeat is set to OFF.
• If the speaker system in the preset and the current speaker system do
not match, the preset cannot be retrieved.
• If the AUX input system in the preset and the current AUX input
system do not match, the items concerning the AUX input system are
unavailable for retrieval.
Setting the Speaker System (Output
System Select)
Unless you select the output system, you cannot set any features. Be
sure to set the system first. If the selected system and the actual speaker
connections do not match, the speakers may be damaged. Make sure to
check the specifications of the speakers before selecting the system.
1
Click [Output System] for [Shortcut] tab in the main
menu.
The Output System Select screen is displayed.
• When you click [I/O Configuration] on the Function switching tab
and then [Output System Select], the Output System Select screen
will also be displayed. Refer to “Operating the Function Switching
Tab” (page 7).
2
Select and click the speaker system, and then click
[NEXT].
System 1 (4.2ch): Front 2way+Rear+SubW
System 2 (2.2ch): Front 3way+SubW
System 3 (4.0ch): Front 3way+Rear
System 4 (5.1ch): Front 2way+Rear+Center+SubW
• Refer to Table 1 (Output System) in “System Configuration”
(page 60).
Click [OK] when a confirmation message appears.
The Speaker Setup screen will be automatically displayed.
• If no changes are made to current system settings, the operation will
close without displaying the confirmation screen.
3
Click [Full Range], [ON] or [OFF], etc., to set the
speakers.
Front High*
1
: Full Range/Tweeter/OFF
Front Mid: Full Range
Front Low: Full Range/OFF
Rear: Full Range/OFF
Center: Full Range/OFF
Subwoofer (1, 2): ON/OFF
Subwoofer Output: Stereo/Mono *
2
*
1
When you modify the “Front High” speaker setting to [Full Range],
a message to confirm the change will be displayed. To set up at “Full
Range,” select [YES] and click [OK]. Make sure the speaker being
used for this output is able to handle a full range source. Many
tweeters can be damaged when driven by a full range signal.
*
2
Only when two subwoofers are connected, is this item able to be set.
Stereo: Subwoofer stereo (L/R) output
Mono: Subwoofer monaural output
Only for the initial startup:
1
Click [OK] when a message appears.
The Output System Select screen is displayed. Go to
Step 2.
01GB00PXAH800.book Page 13 Tuesday, February 8, 2011 9:04 PM
