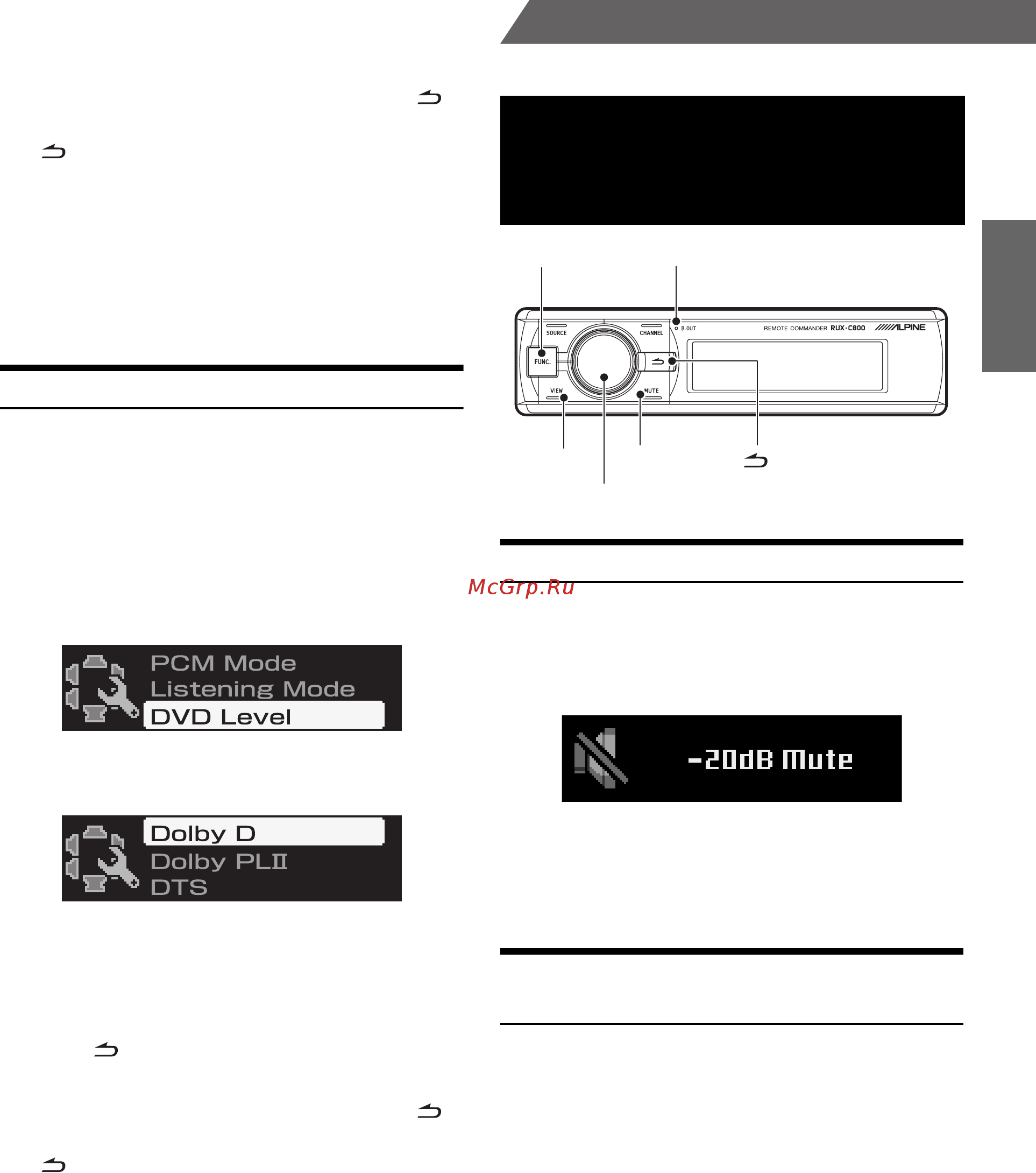

Alpine RUX-C800 [59/67] Other useful features
![Alpine RUX-C800 [59/67] Other useful features](/views2/1473386/page59/bg3b.png)
57-EN
01GB07PXAH800.fm
ALPINE PXA-H800_EN 68-13530Z65-A (B5)
From the Commander
5
When the setting is complete, press and hold [ ]
for at least 2 seconds.
• If [ ] is pressed during setting, the unit returns to the previous
item.
• This feature is effective only for Dolby Digital.
• Use this feature at a volume level at which you can still hear sound
outside of the cabin.
• Depending on the types of source, such as DVD software, this feature
may be ineffective.
• After the setting, it is recommended to store the setting contents on
the unit. For details, refer to “Storing the Preset Values (Preset
Store)” (page 36).
Adjusting the DVD Level (DVD Level)
The volume level for Dolby Digital, Dolby PLII, DTS, EUPHONY and
PCM modes can be set. (Initial setting: “±0dB”)
1
Press [FUNC.].
2
Rotate the [Rotary encoder] to select “Multi Ch.
Setup,” and then press the [Rotary encoder].
3
Rotate the [Rotary encoder] to select “DVD Level,”
and then press the [Rotary encoder].
4
Select the mode you want to adjust by rotating the
[Rotary encoder], and press the [Rotary encoder].
Adjustment modes: Dolby D/Dolby PLII/DTS/PCM/
EUPHONY
5
Select the level by rotating the [Rotary encoder].
Adjustment level: -10 to +10 dB (in 1 dB steps)
6
Press [ ]. Repeat Steps 4 and 5 to set the levels
for each mode.
7
When the setting is complete, press and hold [ ]
for at least 2 seconds.
• If [ ] is pressed during setting, the unit returns to the previous
item.
• Avoid stopping, pausing, switching the disc, cueing, fast-forwarding
or switching the audio channel of this unit while making this
adjustment. The effect may not be recognized easily depending on the
decoding conditions.
• After the setting, it is recommended to store the setting contents on
the unit. For details, refer to “Storing the Preset Values (Preset
Store)” (page 36).
Lowering Volume Quickly (Mute)
Activating this function will instantly lower the volume level by 20 dB.
1
Press [MUTE].
The audio level decreases by about 20 dB. “-20 dB Mute”
will be shown in the screen during muting.
2
To cancel muting, press [MUTE] again.
• Either switch will cancel muting.
• When an Ai-NET compatible head unit is connected, you cannot use
this function.
Turning the Back Light Off (BLACK OUT
function)
When Blackout Mode is turned on, the backlight and illuminated
buttons of the Commander display and the PXA-H800 indicators will be
turned off to reduce power consumption. This additional power
enhances the sound quality.
1
Press and hold the [Rotary encoder] for at least 2
seconds.
The backlight is turned off. The BLACK OUT indicator will
turn on.
2
To cancel this, press and hold the [Rotary encoder]
again for at least 2 seconds.
• When another switch is operated while the backlight is off, the
illumination backlight for the display is turned on for 5 seconds and
then turned off again.
Other Useful
Features
FUNC.
VIEW
Rotary encoder
MUTE
BLACK OUT indicator
01GB00PXAH800.book Page 57 Tuesday, February 8, 2011 9:04 PM
