- 15 - Hardware Installation Process
English
Step 4: Connect ribbon cables, cabinet wires, and power
supply

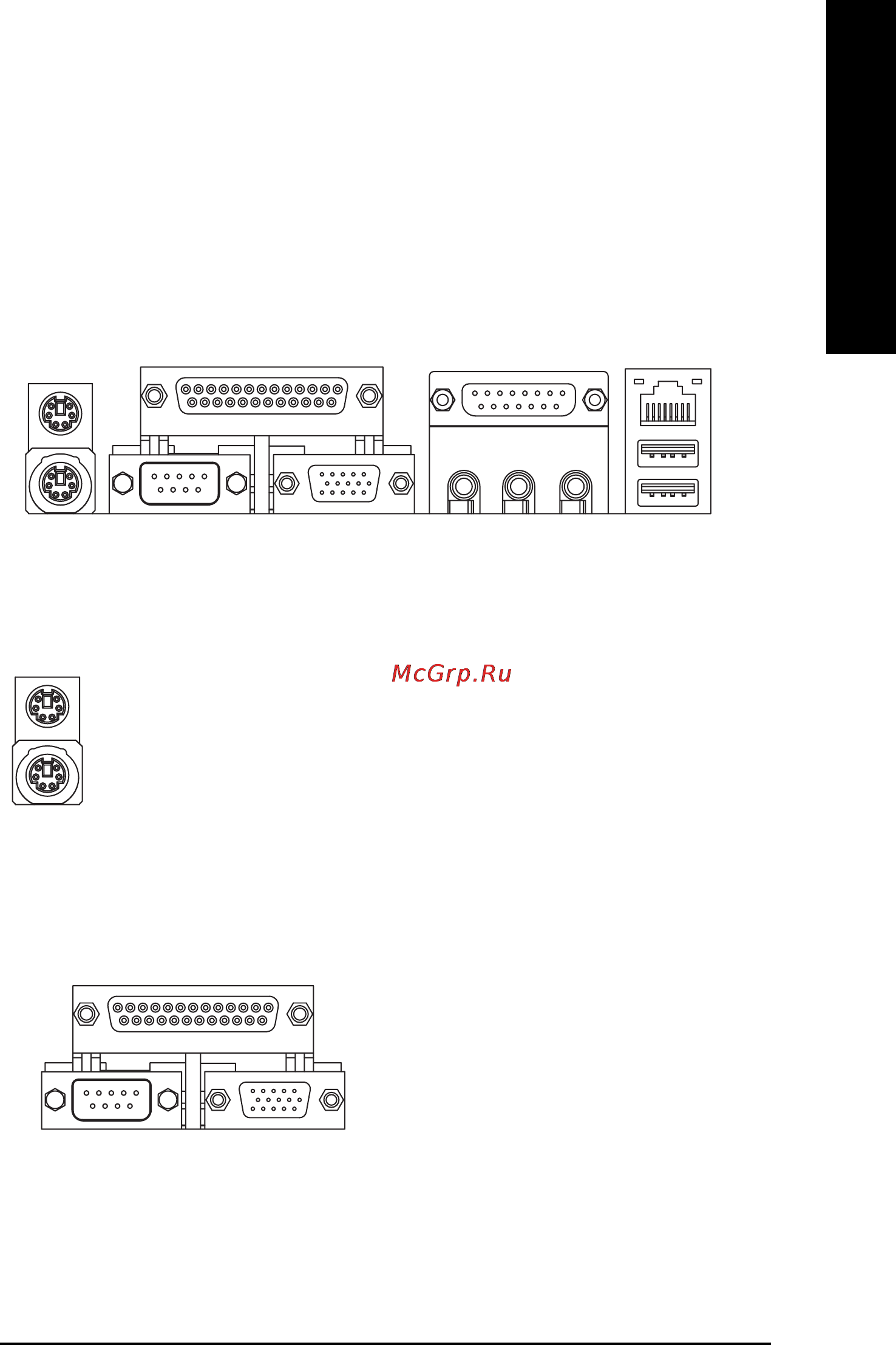

Step4-1 : I/O Back Panel Introduction
XX
XX
X PS/2 Keyboard and PS/2 Mouse Connector
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
This connector supports standard PS/2
keyboard and PS/2 mouse.
X
YZ
[
\
Parallel Port
(25 pin Female)
COMA VGA
Serial Port
(9 pin Male)
VGA Port
(15 pin Female)
YY
YY
Y Parallel Port ,VGA port and Serial Ports (COMA)
This mainboard supports 1 standard COM port,
1 VGA port and 1 LPT port. Device like printer
can be connected to LPT port ; mouse and
modem etc can be connected to COM port.
