- 27 - Hardware Installation Process
English

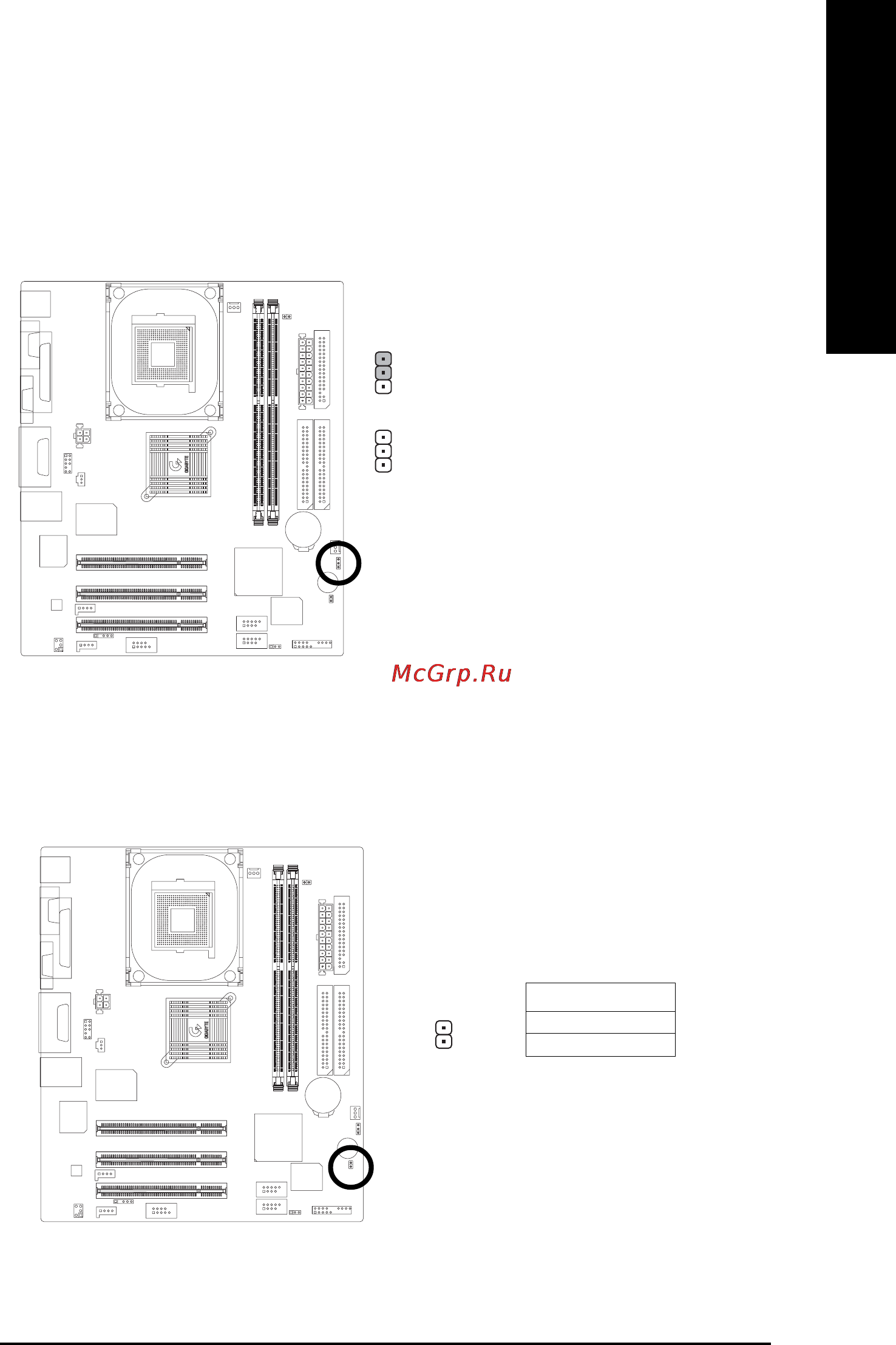

19) CLR_CMOS (Clear CMOS)
You may clear the CMOS data to its default values by this jumper. Default doesn’t include the "Shunter"
to prevent from improper use this jumper. To clear CMOS, temporarily short 1-2 pin.
1-2 close: Clear CMOS
2-3 close: Normal
1
1
20) CI (CASE OPEN)
This 2 pin connector allows your system to enable or disable the "case open" item in BIOS
if the system case begin remove.
1
Pin No. Definition
1 Signal
2 GND
