- 24 -GA-8VD667 Motherboard
English
1

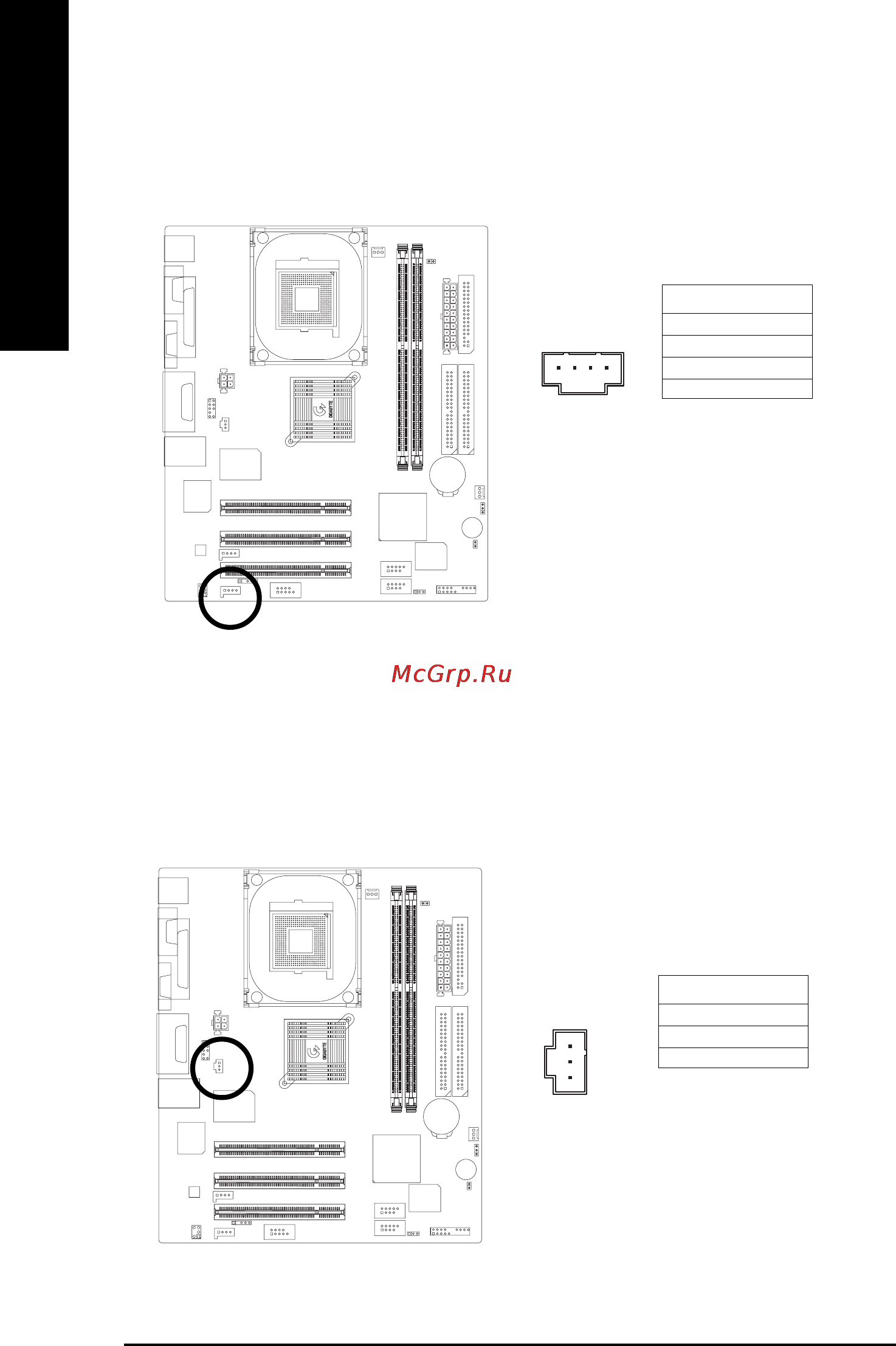

13) CD_IN (CD IN,Blank)
Connect CD-ROM or DVD-ROM audio out to the connector.
1
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD_R
14) SPDIF_O (SPDIFOut)
The SPDIF output is capable of providing digital audio to external speakers or compressed AC3
data to an external Dolby Digital Decoder. Use this feature only when your stereo system has
digital input function.
Pin No. Definition
1 VCC
2 SPDIF OUT
3 GND
