- 76 -GA-8VD667 Motherboard
English
Use the back audio panel to connect the audio output
without any additional module.

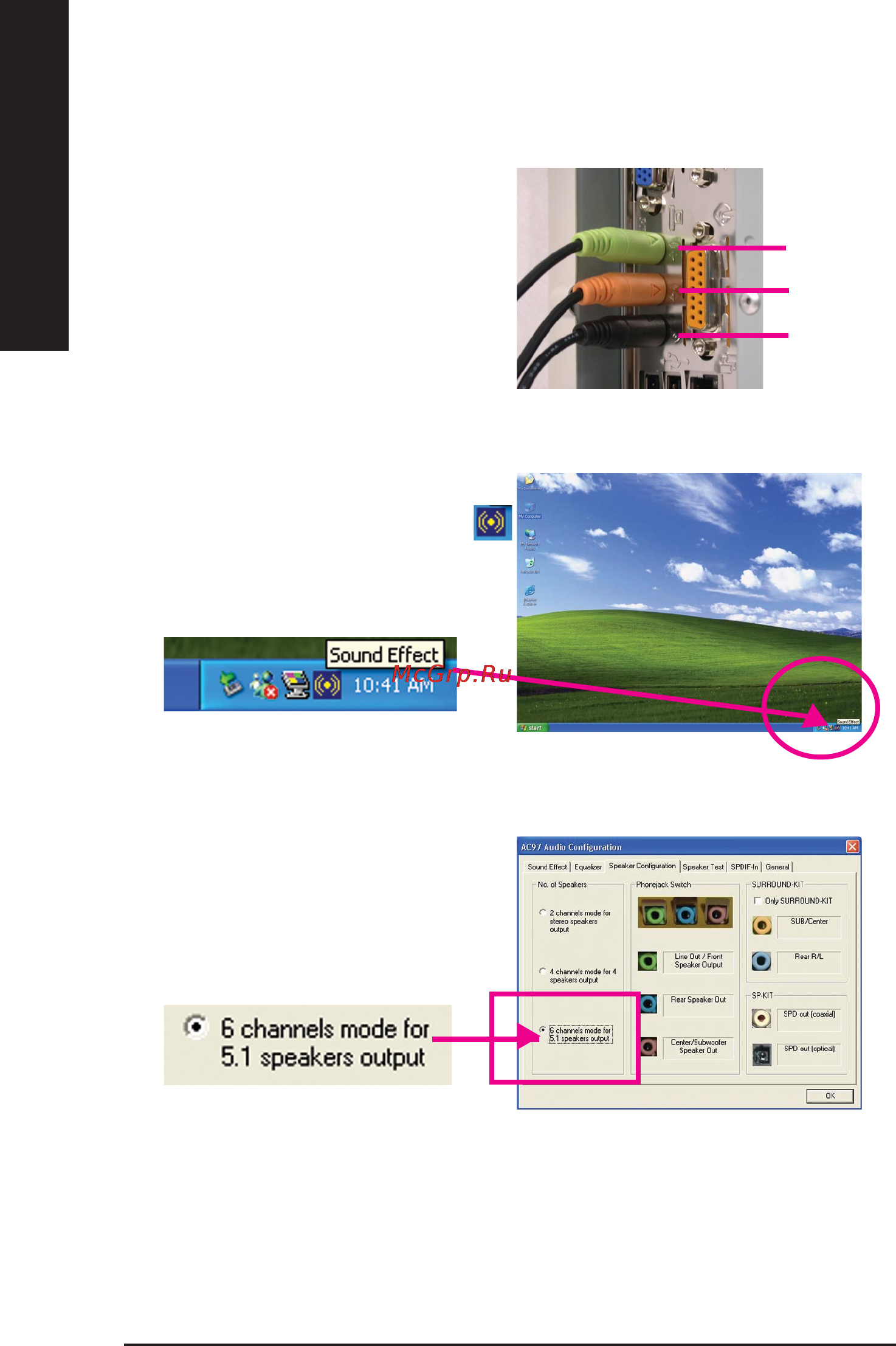

STEP 1 :
Connect the front channels to “Line Out”,the rear chan-
nels to “Line In”, and the Center/Subwoofer channels
to “MIC In”.
Basic 6 Channel Analog Audio Output Mode
STEP 2 :
After installation of the audio driver, you ‘ll find an
icon on the taskbar’s status area. Click the audio icon
“Sound Ef fect” from the windows tray at the bottom of
the screen.
STEP 3 :
Select “Speaker Configuration”, and choose the
“6 channels for 5.1 speakers out put”.
Disable “Only SURROUND-KIT” and pess “OK”
Line Out
Line In
MIC In
