- 76 -GA-8GE800 Pro Motherboard
English
STEP 3: Download BIOS and BIOS utility program.

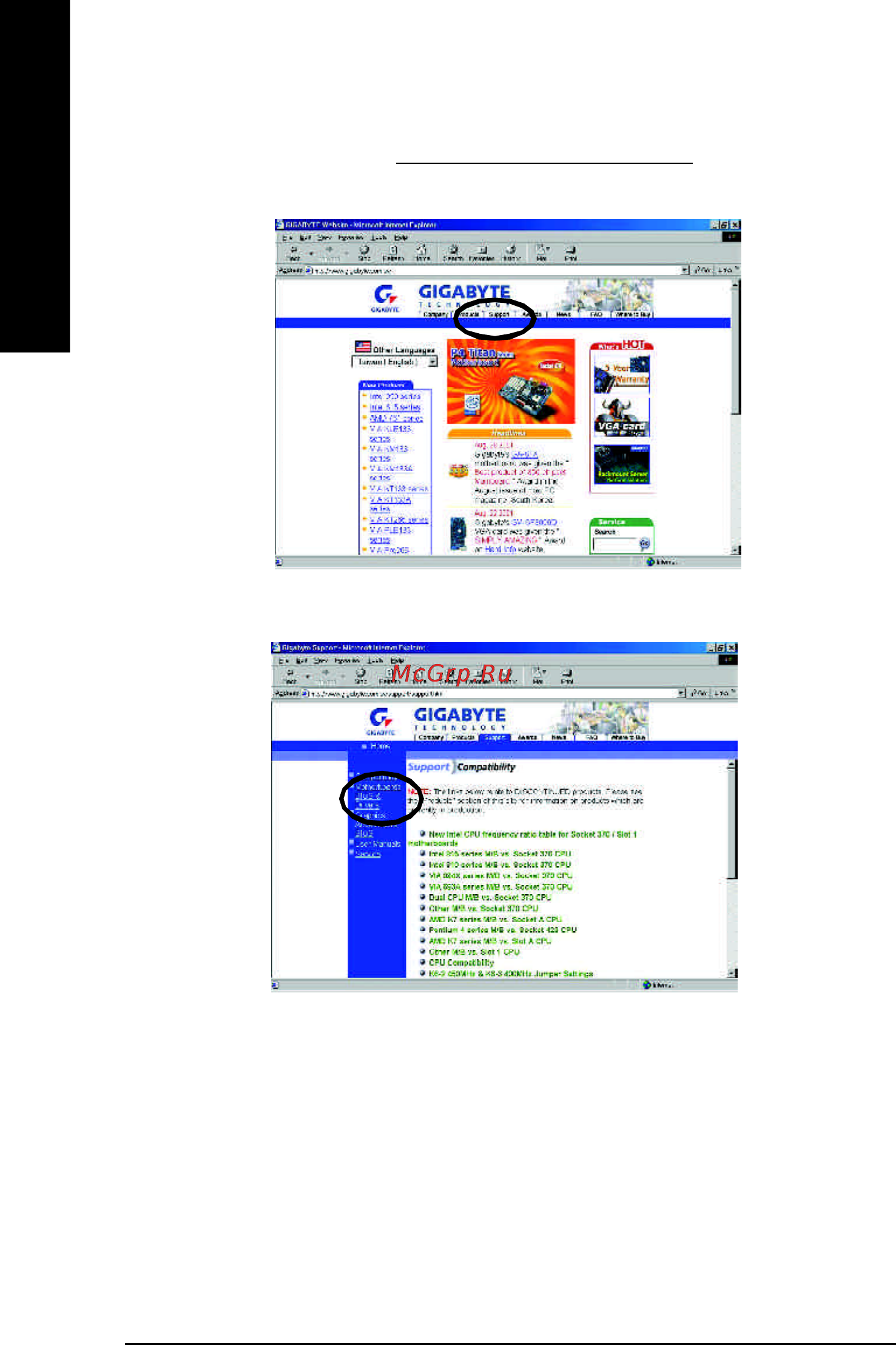

(1) Please go to Gigabyte website http://www.gigabyte.com.tw/index.html, and click "Support".
(2) From Support zone, click the "Motherboards BIOS & Drivers".
