- 17 - Hardware Installation Process
English

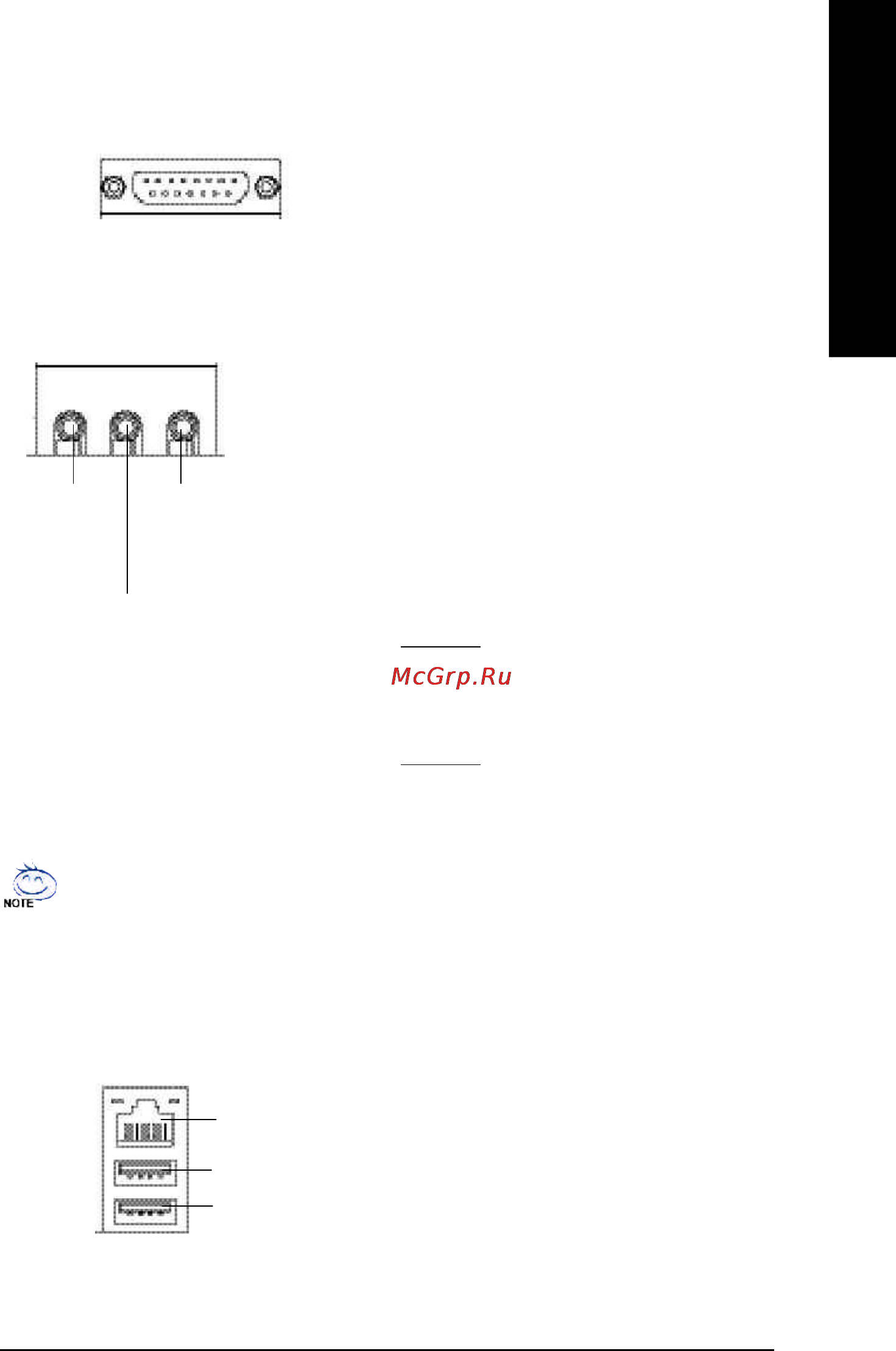

w Game /MIDI Ports
x Audio Connectors
ØThis connector supports joystick, MIDI keyboard
and other relate audio devices.
Ø After install onboard audio driver, you may
connect speaker to Line Out jack, micro phone
to MIC In jack.
Device like CD-ROM , walkman etc can be
connected to Line-In jack.
Please note:
You are able to use 2-/4-/6- channel audio
feature by S/W selection.
If you want to enable 6-channel function, you
have 2 choose for hardware connection.
Method1:
Connect "Front Speaker" to "Line Out"
Connect "Rear Speaker" to "Line In"
Connect "Center and Subwoofer" to "MIC Out".
Method2:
You can refer to page 26, and contact your
nearest dealer for optional SUR_CEN cable.
Joystick/ MIDI (15 pin Female)
Line In
(Rear Speaker)
MIC In
(Center and Subwoofer)
If you want the detail information for 2-/4-/6-channel audio setup
installation, please refer to page 87.
Line Out
(Front
Speaker)
y USB & LAN Connector
Ø Before you connect your device(s) into USB
connector(s), please make sure your device(s)
such as USB keyboard,mouse, scanner, zip,
speaker..etc. Have a standard USB interface.
Also make sure your OS supports USB
controller.
If your OS does not support USB controller,
please contact OS vendor for possible patch
or driver upgrade. For more information please
contact your OS or device(s) vendors.
USB 0
USB 1
LAN
