- 16 -GA-8GE800 Pro Motherboard
English
Step 4: Connect ribbon cables, cabinet wires, and power
supply

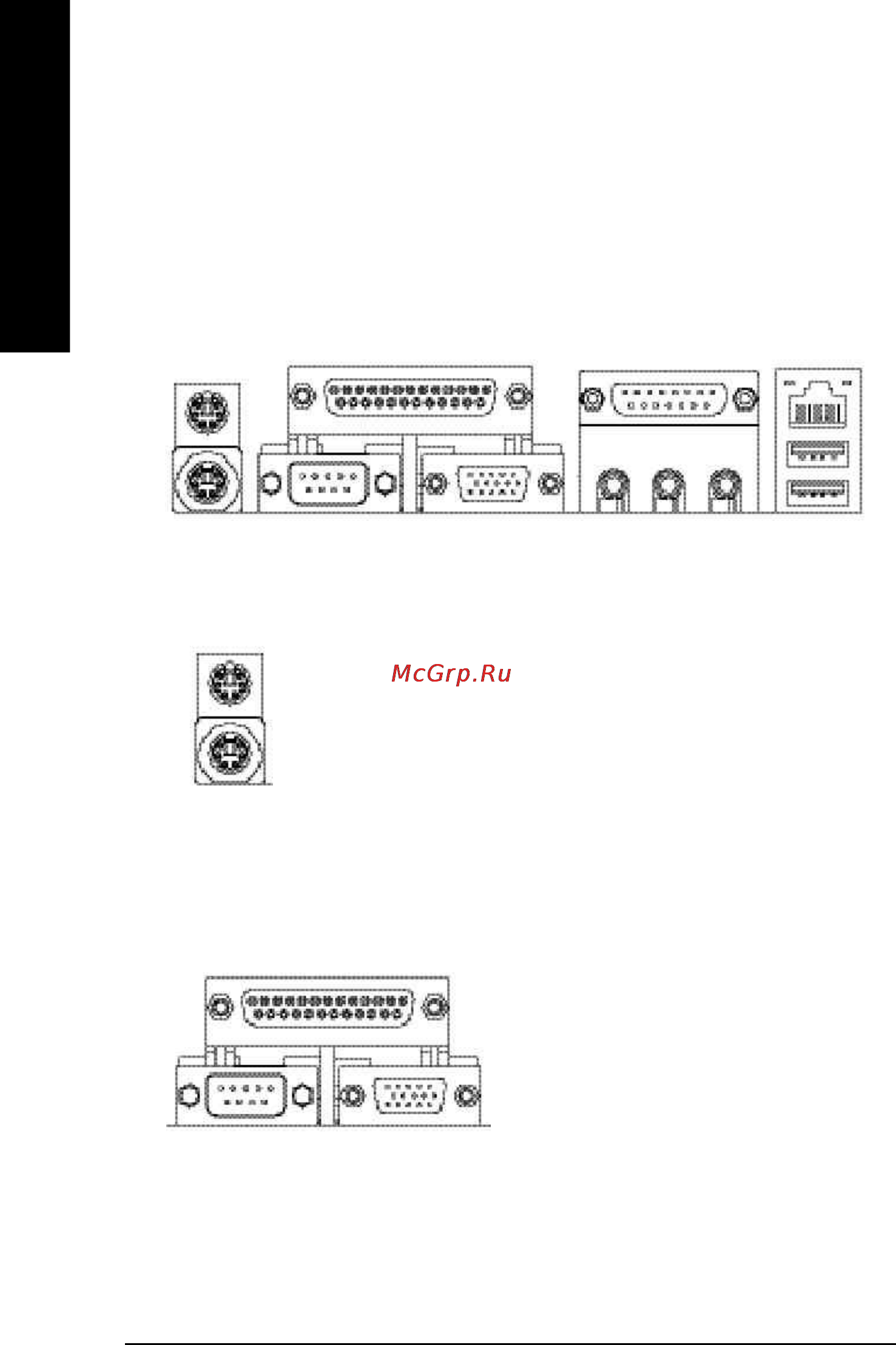

Step 4-1: I/O Back Panel Introduction
u PS/2 Keyboard and PS/2 Mouse Connector
ØThis connector supports standard PS/2 keyboard
and PS/2 mouse.
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
u
v
w
x
y
vParallel Port, Serial Port and VGA Port (LPT/COMA/VGA)
Ø This connector supports 1 standard COM port,
1 Parallel port and 1 VGA port. Device like
printer can be connected to Parallel port ;
mouse and modem etc can be connected to
Serial ports.
Parallel Port
(25 pin Female)
COMA
VGA
Serial Port
(9 pin Male)
VGA Port
(15 pin Female)
