- 12 -8VM533M-RZ Series Motherboard
English
Step 4-2: Connectors Introduction
z LAN port *
LAN is fast Ethernet with 10/100M bps speed.
| Line In jack
Devices like CD-ROM , walkm an etc. can be connect to Line In jack.
} Line Out jack
Connect the stereo speakers or earphone to this connector.
~ MIC In jack
Microphone can be connect to MIC In jack.
After installation of the audio driver, you are able to use 2/4/6-channel audio feature by software
selection. You can connect "Front speaker" to "Line Out" jack, Connect "Rear speaker" to
"Line In" jack and connect "Center/Subwoofer" to "MIC In" jack.
"*" For 8VM533M-RZ only.

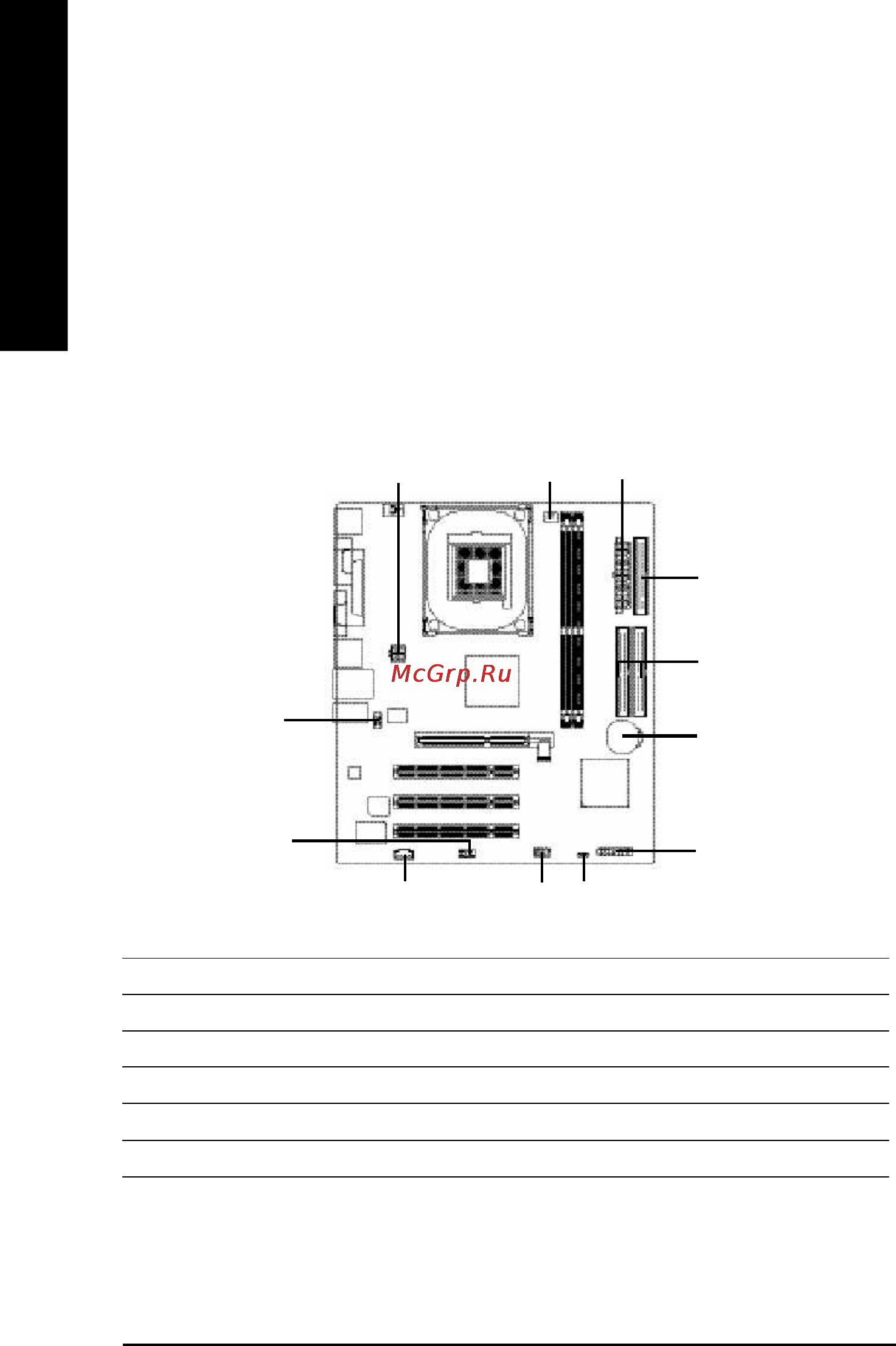

5
7
9
1
3
6
10
11
2
4
8
12
1) ATX_12V
2) ATX
3) CPU_FAN
4) FDD
5) IDE1 / IDE2
6) BAT
7) F_PANEL
8) PWR_LED
9) F_AUDIO
10) CD_IN
11) F_USB1
12) COMB
