Delta Electronics AFE370A43A [32/131] Conduit box kit

Chapter 6 Optional Accessories|AFE2000 Series

6-30

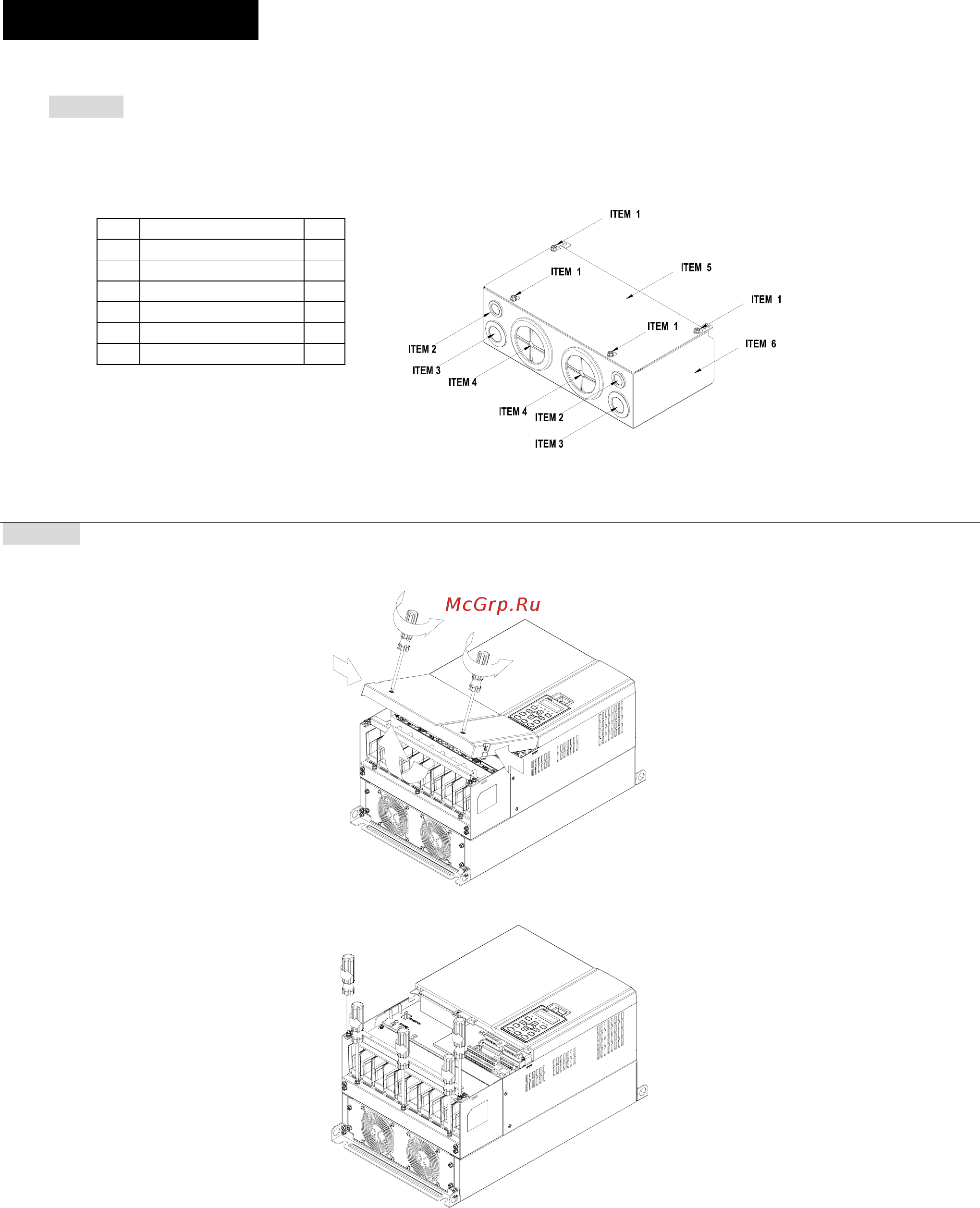

Conduit Box Kit

 Appearance

Frame D

Applicable modle

AFE370A23A; AFE370A43A; AFE450A43A; AFE750A43A;

Model number『MKC-DN1CB』

ITEM Description Qty.

1 Screw M5*0.8*10L 4

2 Rubber 28 2

3 Rubber 44 2

4 Rubber 88 2

5 Conduit box cover 1

6 Conduit box base 1



Installation

Frame D

1. Loosen the cover screws and press the tabs on each side of the cover to remove the cover, as shown in the

following figure. Screw torque: 10~12kg-cm (8.66~10.39Ib-in)

2. Remove the 5 screws shown in the following figure. Screw torque: 24~26kg-cm (20.8~22.6Ib-in).
