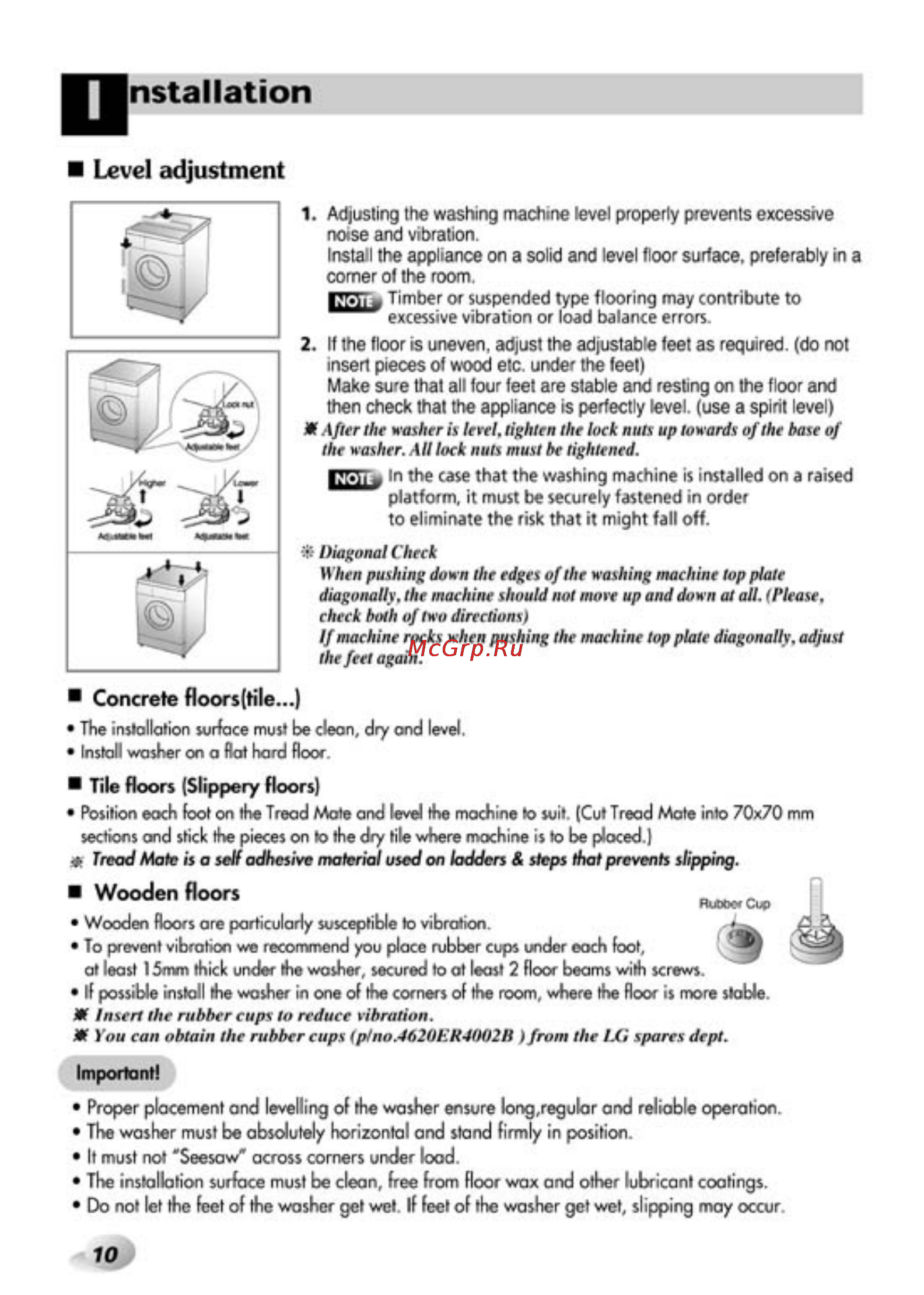

retaliation Level adjustment 1 Adjusting the washing machine level properly prevents excessive noise and vibration Install the appliarce on a solid and level floor surface preferably in a comer of the room Timber or suspended type flooring may contribute to excessive vibration or load balance errors 2 If the floor is uneven adjust the adjustable feet as required do not insert pieces of wood etc under the feet Make sure that al four feet are stable and resting on the floor and then check that the appliance is perfectly level use a spirit level After the washer is level tighten the lock nuts up towards of the base of the washer All lock nuts must be tightened 4 In the case that the washing machine is installed on a raised platform it must be securely fastened in order to eliminate the risk that it might fall off Diagonal Check When pushing down the edges of the washing machine top plate diagonally the machine should not move up and down at all Please check both of two directions If machine rocks when pushing the machine top plate diagonally adjust the feet again Concrete floors tile The installation surface must be clean dry ond level Install washer on a flat hard floor Tile floors Slippery floors Position each foot on the Tread Mote and level the machine to suit Cut Tread Mote into 70x70 mm sections ond stick the pieces on to the dry tile where machine is to be placed Tread Mate is a self adhesive material used on Icddcrs steps that prevents slipping Wooden floors To prevent vibration wo recommend you place rubber cups under each foot at least 15mm thick under the washer secured to at least 2 floor beams with If possible install the washer in one of the corners d the room where the floor is more stable Insert the rubber cups to reduce vibration You can obtain the rubber cups p no 4620ER4002B from the LG spares dept Important Proper placement ond levelling of the washer er sure long regular and reliable operation The washer must be absolutely horizontal and stand firmly in position It must not Seesaw across corners under load The installation surface must be clean free from floor wax and other lubricant coatings Do not let the feet of the washer get wet If feet of the washer get wet slipping may occur e RUO XCLO Wooden floors are particularly susceptible to vibration
