LG WD-10156TP [7/28] Retaliation

Содержание

• Owner s manual 1
• Washing machine 1
• Roduct feature 2
• Arnings 3
• Important safety instructions 3
• Save these instructions 3
• Warning 3
• Uopedijpad 4
• Before operating the washer remove 5
• Bungs by slightly twisting the bung keep 5
• If they are not removed it may cause heavy 5
• Removing transit bolts 5
• Retaliation 5
• Take out the 4 bolts along with the rubber 5
• The 4 bolts and the spanner for future use 5
• The appliance is fitted with transit bolts to prevert internal damage during transport 5
• The bolts along with the rubber bungs 5
• The spanner supplied 5
• To prevent internal damage during 5
• Transit bolls must be refitted 5
• Transit bolts 5
• Transport the special 4 bolts are locked 5
• Unscrew the 4 bolts with 5
• Vibration noise and malfunction 5
• Whenever the appliance is transported the 5
• Bs plug safety details for u k user 6
• Installation place requirement 6
• Connecting water supply hose 7
• Don t strip or crossthread when connecting 7
• Electrical connection 7
• If the water supply pressure is more than 7
• Inlet hose to the valve 7
• Loookpa a decompression device should he installed 7
• Retaliation 7
• Sets ano that old hose sets should not be used 7
• Supply pressure must be between 30kpaand iwokpa oj iokgficnr 7
• Washing machine is to be connected to the water mains using new hose 7
• When your washer has two valves 7
• Normal tap without thread one touch type inlet hose single inlet models 8
• Normal tap without thread screw type inlet hose 8
• Retaliation 8
• Installation of drain hose 9
• Jnstallation 9
• Concrete floors tile 10
• Important 10
• Level adjustment 10
• Retaliation 10
• Tile floors slippery floors 10
• Wooden floors 10
• Are before washing 11
• Care labels 11
• Caring before loading 11
• Caring before washing 11
• Sorting 11
• Adding detergent and fabric softener 12
• Adding fabric softener 12
• Dding detergent 12
• Detergent dosage 12
• The dispenser drawer 12
• Water softener 12
• Fabric 13
• Maximum 13
• Option 13
• Proper 13
• Recommended courses according to the laundry type 13
• Unction 13
• Ow to use washer 14
• Bio rinse 15
• Crease care 15
• Option 15
• Pre hash crease care 15
• Pre wash 15
• The required lamp will light up for identification 15
• Time save 15
• Ow to use washer 16
• Ow to use washer 17
• Course 18
• Ow to use washer 18
• Program 18
• Ow to use washer 19
• Start pause 19
• Display 20
• Ow to use washer 20
• Aintenance 21
• The drain pump filter 21
• The water inlet filter 21
• Aintenance 22
• Dispenser drawer 22
• The drawer recess 22
• The washing drum 22
• Aintenance 23
• Cleaning your washer 23
• Cold condition 23
• Roubleshooting guide 24
• Symptom possible cause solution 24
• Roubleshooting guide 25
• Symptom possible cause solution 25
• Roubleshooting guide 26
• Erms of warranty 27
• Normal maintenance which recommended by the owner s manual 27
• What is not covered 27
• Lg electronics inc 28

Похожие устройства

• Ultimate SYM5 Black Инструкция по эксплуатации
• BBK LT2209S Инструкция по эксплуатации
• Ballu BFH/C-20 Инструкция по эксплуатации
• LG WD-10160NUV Инструкция по эксплуатации
• Ultimate Stage TR5 Black Инструкция по эксплуатации
• Philips HD2540 Инструкция по эксплуатации
• Ballu GSX-1000 Air Jet Инструкция по эксплуатации
• Texet ТВ-723A 4Gb Black Инструкция по эксплуатации
• LG WD-10163N Инструкция по эксплуатации
• Ultimate Stage TR6 Swiss Pear Инструкция по эксплуатации
• Miele KFN 8997 SE ed Инструкция по эксплуатации
• Ballu GSX-1800 Hot air Инструкция по эксплуатации
• Texet TB-860HD 4G Grey Инструкция по эксплуатации
• LG WD-10164N Инструкция по эксплуатации
• Ultimate SYM1 Black Инструкция по эксплуатации
• Hyundai H-DVD5043-N Инструкция по эксплуатации
• Ballu GSX-2000 Turbo Инструкция по эксплуатации
• Texet ТВ-725A Инструкция по эксплуатации
• Nexx NF-510 Инструкция по эксплуатации
• LG WD-10164SV Инструкция по эксплуатации

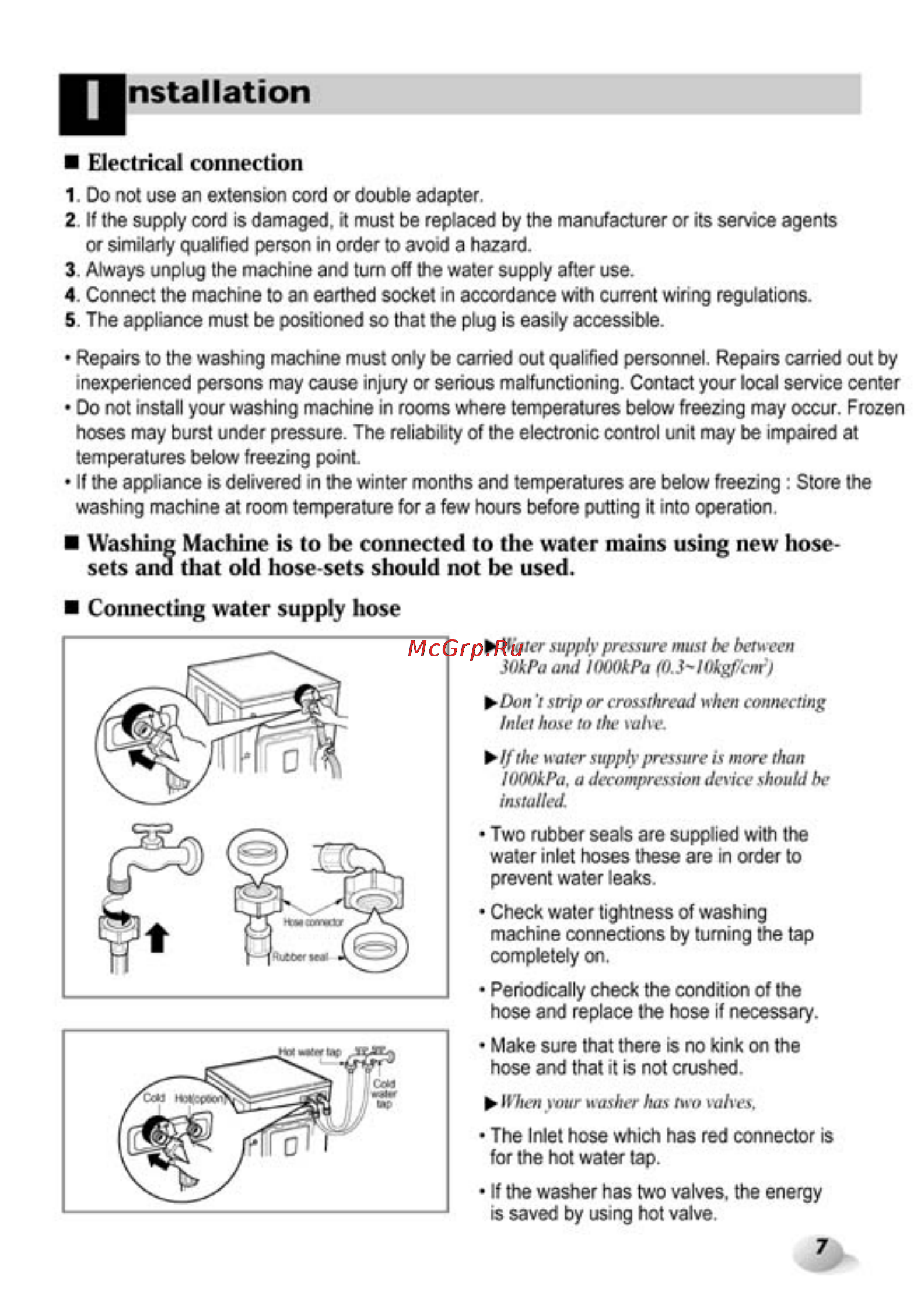

retaliation Electrical connection 1 Do not use an extension cord or double adapter 2 If the supply cord is damaged it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard 3 Always unplug the machine and turn off the water supply after use 4 Connect the machine to an earthed socket in accordance with current winng regulations 5 The appliance must be positioned so that the plug is easily accessible Repairs to the washing machine must only be carried out qualified personnel Repairs carried out by inexperienced persons may cause injury or serous malfunctioning Contact your local service center Do not install your washing machine in rooms where temperatures below freezing may occur Frozen hoses may burst under pressure The reliability of the electronic control unit may be impaired at temperatures below freezing point If the appliance is delivered in the winter months and temperatures are below freezing Store the washing machine at room temperature for a few hours before putting it into operation Washing Machine is to be connected to the water mains using new hose sets ano that old hose sets should not be used Connecting water supply hose supply pressure must be between 30kPaand IWOkPa OJ IOkgficnr Don t strip or crossthread when connecting Inlet hose to the valve If the water supply pressure is more than lOOOkPa a decompression device should he installed Two rubber seals are supplied with the water inlet hoses these are in order to prevent water leaks Check water tightness of washing machine connections by turning the tap completely on Periodically check the condition of the hose and replace the hose if necessary Make sure that there is no kink on the hose and that it is not crushed When your washer has two valves The Inlet hose which has red connector is for the hot water tap If the washer has two valves the energy is saved by using hot valve
