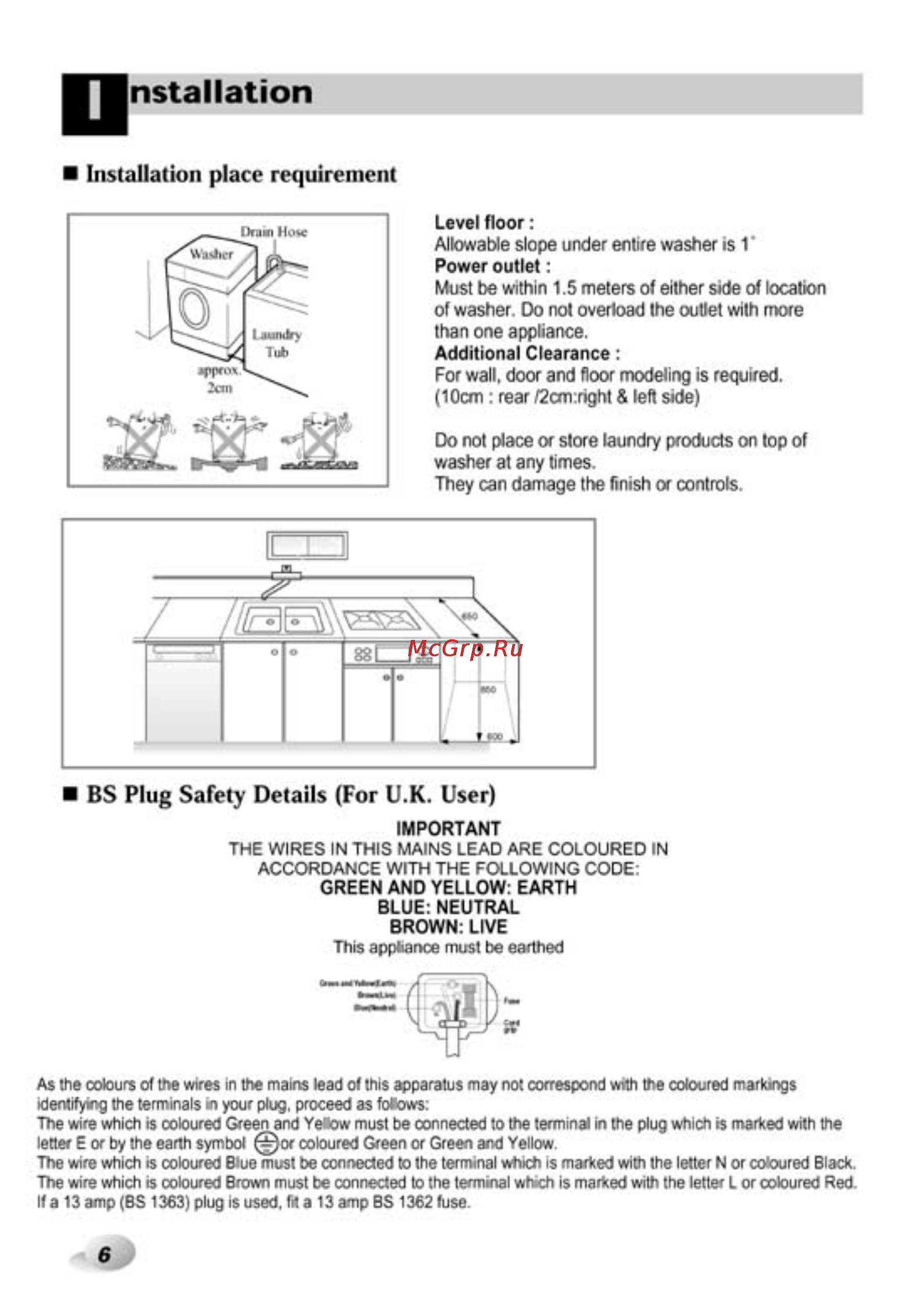

Installation place requirement Level floor Alkwabe slope under entire washer is V Power outlet Must be within 1 5 meters of either side of location of washer Do not overload the outlet with more than one appliance Additional Clearance For wall door and floor modeling is required 10 m rear 2cm right left side Do not place or store laundry products on top of washer at any times They can damage the finish or controls BS Plug Safety Details For U K User IMPORTANT THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE GREEN AND YELLOW EARTH BLUE NEUTRAL BROWN LIVE This appliance must be earthed As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as fofows The wire which is coloured Greenand YeiiOw must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured Green or Green and Yellow The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black The wire which is coloured Brown must be connected to the terminal whxh is marked with the letter L or coloured Red If a 13 amp BS 1363 plug is used fit a 13 amp BS 1362 fuse
