LG WD-10156TP [24/28] Roubleshooting guide

Содержание

• Owner s manual 1
• Washing machine 1
• Roduct feature 2
• Arnings 3
• Important safety instructions 3
• Save these instructions 3
• Warning 3
• Uopedijpad 4
• Before operating the washer remove 5
• Bungs by slightly twisting the bung keep 5
• If they are not removed it may cause heavy 5
• Removing transit bolts 5
• Retaliation 5
• Take out the 4 bolts along with the rubber 5
• The 4 bolts and the spanner for future use 5
• The appliance is fitted with transit bolts to prevert internal damage during transport 5
• The bolts along with the rubber bungs 5
• The spanner supplied 5
• To prevent internal damage during 5
• Transit bolls must be refitted 5
• Transit bolts 5
• Transport the special 4 bolts are locked 5
• Unscrew the 4 bolts with 5
• Vibration noise and malfunction 5
• Whenever the appliance is transported the 5
• Bs plug safety details for u k user 6
• Installation place requirement 6
• Connecting water supply hose 7
• Don t strip or crossthread when connecting 7
• Electrical connection 7
• If the water supply pressure is more than 7
• Inlet hose to the valve 7
• Loookpa a decompression device should he installed 7
• Retaliation 7
• Sets ano that old hose sets should not be used 7
• Supply pressure must be between 30kpaand iwokpa oj iokgficnr 7
• Washing machine is to be connected to the water mains using new hose 7
• When your washer has two valves 7
• Normal tap without thread one touch type inlet hose single inlet models 8
• Normal tap without thread screw type inlet hose 8
• Retaliation 8
• Installation of drain hose 9
• Jnstallation 9
• Concrete floors tile 10
• Important 10
• Level adjustment 10
• Retaliation 10
• Tile floors slippery floors 10
• Wooden floors 10
• Are before washing 11
• Care labels 11
• Caring before loading 11
• Caring before washing 11
• Sorting 11
• Adding detergent and fabric softener 12
• Adding fabric softener 12
• Dding detergent 12
• Detergent dosage 12
• The dispenser drawer 12
• Water softener 12
• Fabric 13
• Maximum 13
• Option 13
• Proper 13
• Recommended courses according to the laundry type 13
• Unction 13
• Ow to use washer 14
• Bio rinse 15
• Crease care 15
• Option 15
• Pre hash crease care 15
• Pre wash 15
• The required lamp will light up for identification 15
• Time save 15
• Ow to use washer 16
• Ow to use washer 17
• Course 18
• Ow to use washer 18
• Program 18
• Ow to use washer 19
• Start pause 19
• Display 20
• Ow to use washer 20
• Aintenance 21
• The drain pump filter 21
• The water inlet filter 21
• Aintenance 22
• Dispenser drawer 22
• The drawer recess 22
• The washing drum 22
• Aintenance 23
• Cleaning your washer 23
• Cold condition 23
• Roubleshooting guide 24
• Symptom possible cause solution 24
• Roubleshooting guide 25
• Symptom possible cause solution 25
• Roubleshooting guide 26
• Erms of warranty 27
• Normal maintenance which recommended by the owner s manual 27
• What is not covered 27
• Lg electronics inc 28

Похожие устройства

• Ultimate SYM5 Black Инструкция по эксплуатации
• BBK LT2209S Инструкция по эксплуатации
• Ballu BFH/C-20 Инструкция по эксплуатации
• LG WD-10160NUV Инструкция по эксплуатации
• Ultimate Stage TR5 Black Инструкция по эксплуатации
• Philips HD2540 Инструкция по эксплуатации
• Ballu GSX-1000 Air Jet Инструкция по эксплуатации
• Texet ТВ-723A 4Gb Black Инструкция по эксплуатации
• LG WD-10163N Инструкция по эксплуатации
• Ultimate Stage TR6 Swiss Pear Инструкция по эксплуатации
• Miele KFN 8997 SE ed Инструкция по эксплуатации
• Ballu GSX-1800 Hot air Инструкция по эксплуатации
• Texet TB-860HD 4G Grey Инструкция по эксплуатации
• LG WD-10164N Инструкция по эксплуатации
• Ultimate SYM1 Black Инструкция по эксплуатации
• Hyundai H-DVD5043-N Инструкция по эксплуатации
• Ballu GSX-2000 Turbo Инструкция по эксплуатации
• Texet ТВ-725A Инструкция по эксплуатации
• Nexx NF-510 Инструкция по эксплуатации
• LG WD-10164SV Инструкция по эксплуатации

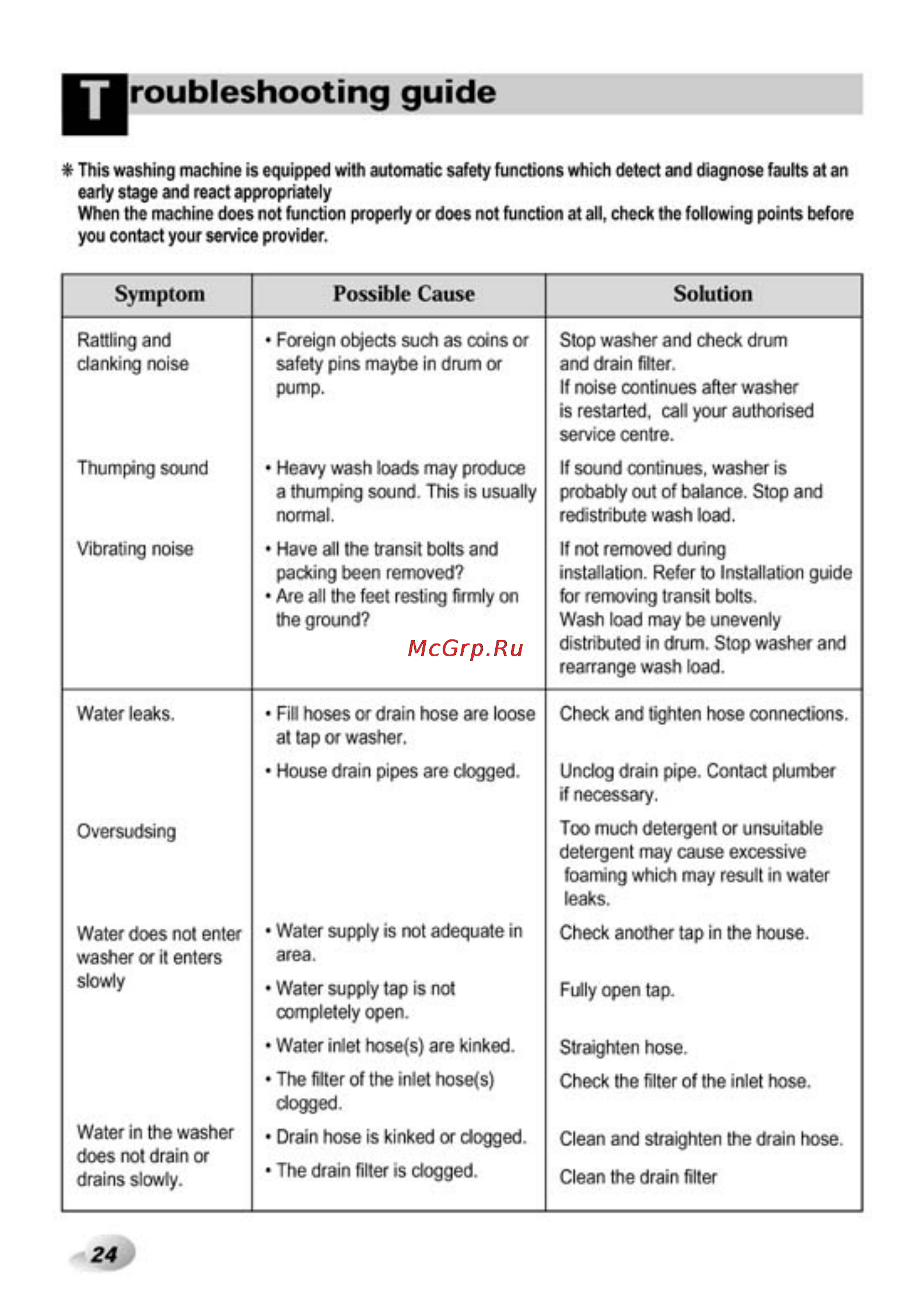

roubleshooting guide This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately When the machine does not function properly or does not function at all check the following points before you contact your service provider Symptom Rattling and clanking noise Possible Cause Foreign objects such as coins or safety pins maybe in drum or pump Solution Stop washer and check drum and drain filter If noise continues after washer is restarted call your authorised service centre Thumping sound Vibrating noise Heavy wash loads may produce If sound continues washer is a thumping sound This is usually probably out of balance Stop and normal redistribute wash load Have all the transit bolts and packing been removed Are all the feet resting firmly on the ground If not removed during installation Refer Io Installation guide for removing transit bolts Wash load may be unevenly distributed in drum Stop washer and rearrange wash load Water leaks Fill hoses or drain hose are loose Check and lighten hose connections al tap or washer House drain pipes are dogged Undog drain pipe Contact plumber if necessary Too much detergent or unsuitable Oversudsing detergent may cause excessive foaming which may result in water leaks Water does no enter washer or it enters slowly Water supply is not adequate in Check another tap in the house area Water supply tap is not Fully open lap completely open Water inlet hose s are inked Straighten hose The filter of the inlet hosefs Check the filler of the inlet hose dogged Water in the washer Drain hose is kinked or dogged Clean and straighten the drain hose The drain filter is dogged Clean the drain filler does not drain or drains slowly
