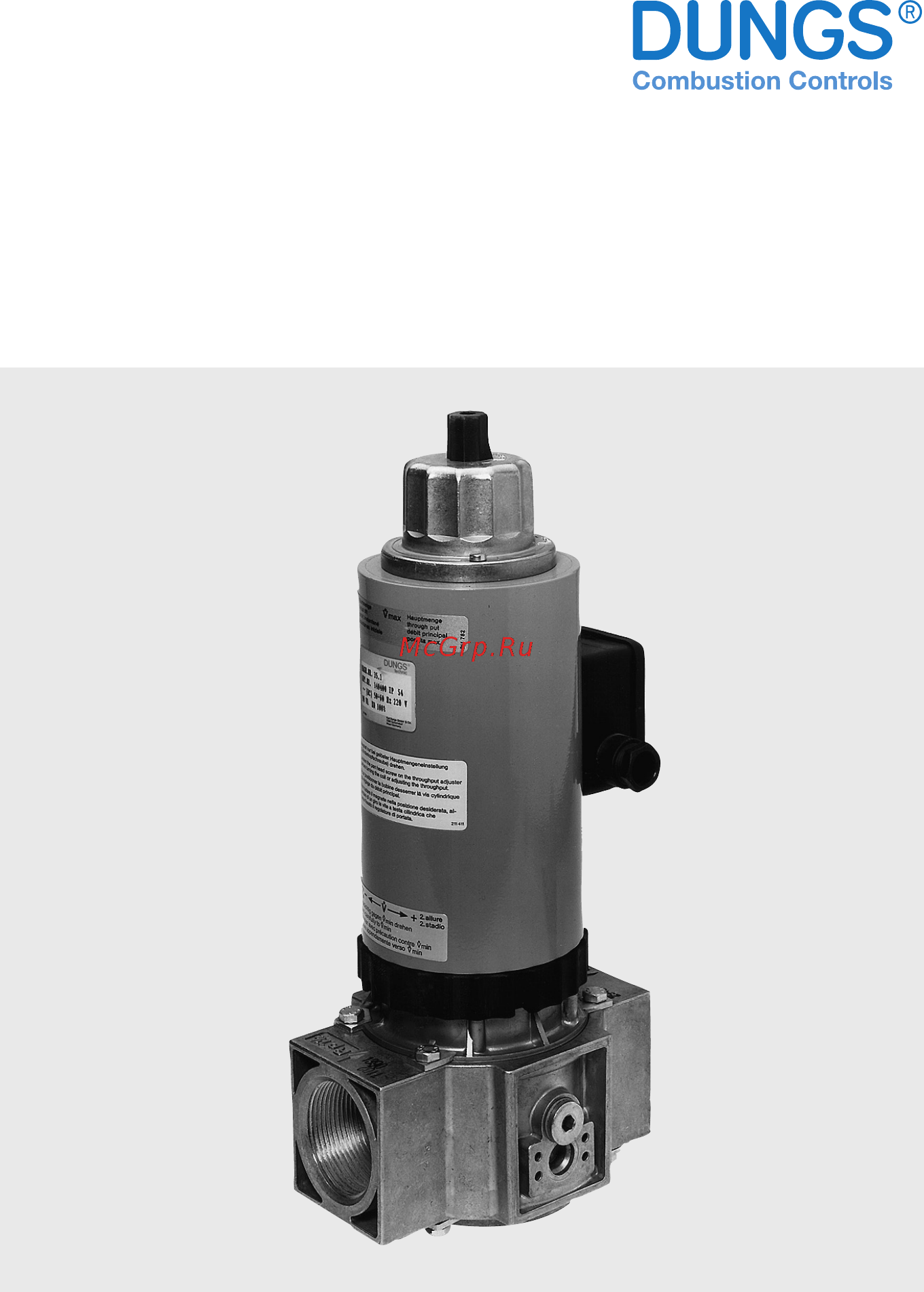

Two-stage
safety solenoid valves
ZRLE/5, ZRDLE/5
6.22
Printed in Germany • Edition 12.13 • Nr. 214 757
Technical description
The DUNGS safety solenoid valve ZR...
is a two-stage automatic shut-o valve
as per EN 161 for gas burners and gas
appliances.
-
Max. operating pressure up to 360 mbar
(36 kPa)
- Class A, Group 2 as per EN 161
- mormally closed
- Fast closing
- Slow opening with adjustable fast
stroke for start gas volume: ZRLE and
ZRDLE
- Main and partial volumes adjustable:
ZRDLE
-
DC solenoid, rectier wiring with radio in-
terference suppression in terminal box
- Mountable closed position signal con-
tact to monitor closed position of valve
- Pipe thread as per ISO 7/1
-
Flange connection as per DIN EN 1092-1
- Reliable function, rugged and mainte-
nance-free
Application
The solenoid valve is used for securing, limit-
ing, shutting o and releasing gas supply to
gas burners and gas appliances.
The DUNGS safety solenoid valve ZR...
is suitable for gases of families 1, 2, 3 and
other neutral gaseous media.
Approval
EC type test approval as per EC Gas Ap-
pliance Directive:
ZR 4../5 CE-0085 AQ7125
Approvals in other important gas consum-
ing countries.
