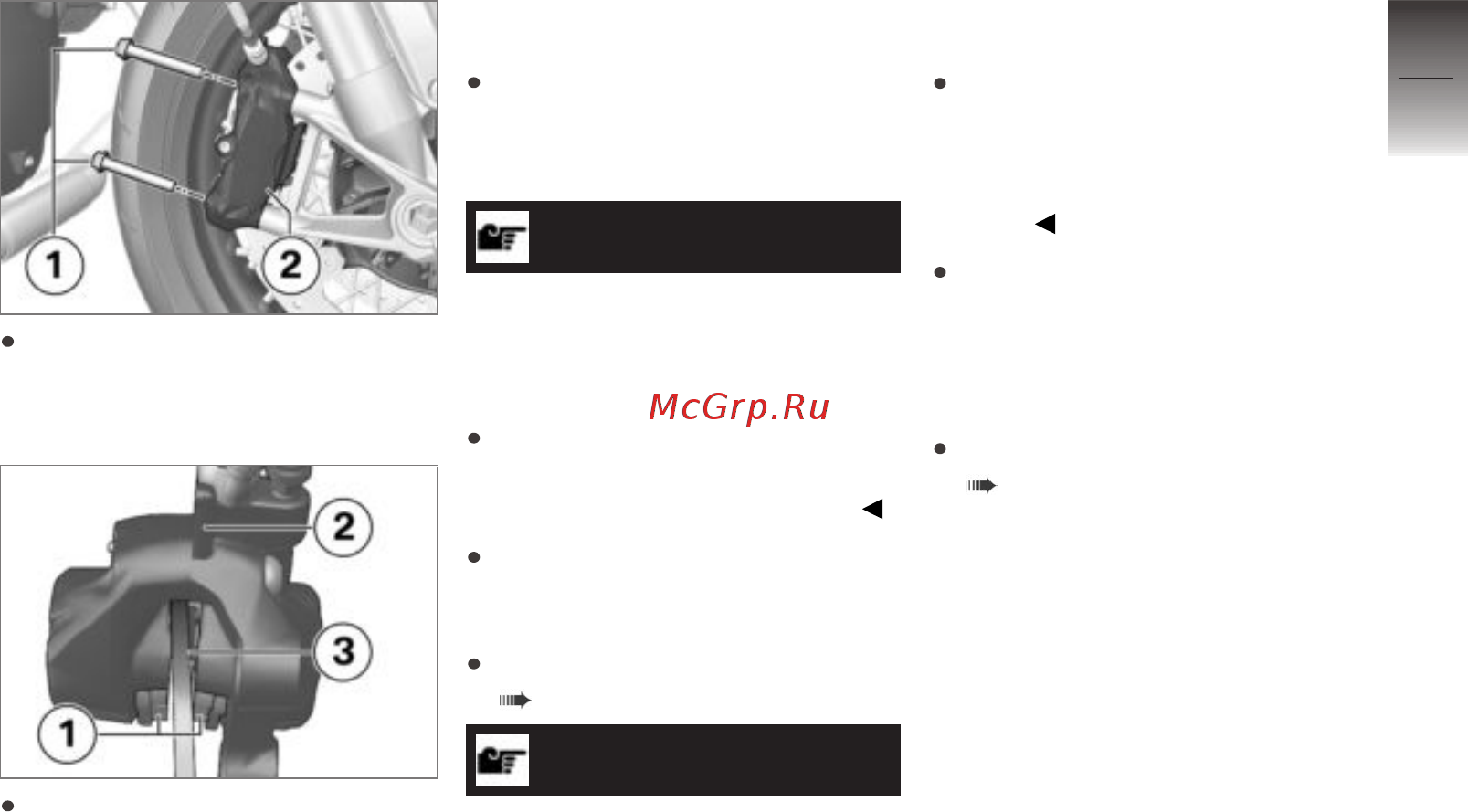

Remove the screws 1 on the
right and loosen the brake cal-
iper 2.
Slightly force apart the brake
pads 1 by rotating the brake
caliper 2 against the brake
disc 3.
Carefully pull the brake calipers
back and out until clear of the
brake discs.
ATTENTION
Vehicle topples to side when
being lifted on to stand
Risk of damage to parts if vehicle
topples
Secure the vehicle to prevent it
toppling, preferably with the as-
sistance of a second person.
Lift the motorcycle, preferably
with a BMW Motorrad rear-
wheel stand.
Installing the rear-wheel stand
( 90).
ATTENTION
Use of the BMW Motorrad
front-wheel stand without
also using the auxiliary stand
Risk of damage to parts if vehicle
topples
Place the motorcycle on an
auxiliary stand before lifting
the front wheel with the
BMW Motorrad front-wheel
stand.
Lift the front of the motorcycle
until the front wheel is clear of
the ground, preferably using
a BMW Motorrad front-wheel
stand.
Installing the front-wheel stand
( 89).
